This laser is multipurpose, making it ideal for tradesmen who work a variety of jobs involving squaring, plumbing, and leveling where a multifunction tool is required. If you are an electrician, plumber, kitchen installer, framer, drywaller, or general contractor, this is the laser for you. It can be used for a variety of applications, including transferring points to the ceiling or lighting installations using plumb points or square a room for partition or walls.

Multi-Use Combination Laser

The GCL 25 laser by Bosch has five different points that offer solutions across the most common applications. The applications it is built to examine include: horizontal leveling, vertical leveling, squaring, plumb transfer, and layout. The best part about this tool’s versatility across common applications is that you no longer have to pack two lasers to the jobsite or off-site project, because you have the combined power of two-in-one. This laser saves you time, money, and space with the simple switch of a button.

User Features

The Bosch GCL 25 laser incorporates several special features to increase both the performance and user ease of the tool. Located conveniently on the exterior of the tool is the on/off sliding button, LED battery status, and line/point selection keypad. The on/off sliding button features a pendulum lock function and is easy to reach. It has three different levels that are: the laser is on and in self-leveling mode, the laser is on but self-leveling is off, or the laser is off. The LED battery status is located on top of the tool for added user convenience so that you don’t have to go looking for the current battery status. In addition, this laser is ergonomically designed for a comfortable and solid grip. On the interior of the tool are the tripod thread, self-leveler, and accuracy feature. The tripod thread measures at 1/4-inch and 5/8-inch. The self-leveling feature measures within 4-degrees. The accuracy feature allows for accuracy within 1/8-inch on horizontal points, 9/16-inches on vertical points, and 1/8-inch on cross-line. The points are also visible for up to 100-feet, and the lines respectively up to 33-feet. This laser is also protected against dust and splash water with ingress protection 54 (IP 54).

Keyboard Operation

The keypad is controlled by how many times you press the keypad. When the pendulum is unlocked and the laser has self-leveling on, the different levels are: default mode where you will have cross-lines (turning it on), 5 point mode (first press of keypad), horizontal line only (second press of keypad), vertical line only (third press of keypad), and return to default mode (fourth press of keypad). When the pendulum is locked (slope mode) and the laser has self-leveling off, the different levels are: cross-line mode (default mode), horizontal line (first press of keypad), vertical line (second press of keypad), or back to default (third press of keypad). Please note that when you are in slope mode, the points are used to plumb and align partitions based on their 90-degree angle to each other. The important precondition for these applications is to have the points leveled. Using the points in non-self-leveling mode may lead to an error. To avoid this error, only the lines are activated for the leveling applications when the laser is in slop mode.

Industry Leader

This GCL 25 laser is outstanding in comparison to the GPL2, GPL3, or CPL5. To begin, it out numbers the other models by featuring a cross-line in addition to five laser dots. It also has a plumb range of 15-feet, a horizontal point range of 100-feet, and a lines range of 30-feet. The accuracy is unique to the GCL25 of within 1/8-inch at 30-feet. The self-leveling within 4-degrees is also only a feature you will get with this laser. It is also not limited to basic applications, covering plumbing, horizontal leveling, squaring, and versatile alignment. It also has the ability to set right angles.

Bosch GCL 25 Five-Point Laser with Cross-Line Features:

• Extremely versatile: cross line laser and five-point laser in one covers all interior alignment applications
• Horizontal and vertical levelling, square, layout and plumb transfer
• Easy to operate using intuitive user interface
• Compact and ergonomic design for maximum grip and end user comfort
• Robust instrument for jobsite use with IP54 dust and splash protection
• 10 m cross line range, 30 m point projection
• Touchpad for line/point selection
• LED light showing battery status
• Tripod compatible 1/4″ and 5/8″ tripod thread
• On/off sliding button with pendulum lock function

Bosch GCL 25 Professional Applications

• Plumbing: Plumb point for pipe installation
• Dry walling: Setting up partition walls
• Electrician: Plumb points for spot lighting
• Kitchen installer: Levelling cupboards

[/vc_tab][vc_tab title=”Specifications” tab_id=”specifications”]

Technical data: Bosch GSL 2 Professional Surface Laser

Specifications	GCL 25 Professional
Working range of laser points	30 m for forward, right and left points   10 m for upward plumb point   5 m for downward plumb point
Working range of laser lines	10 m
Leveling accuracy	0.3 mm / m, plumb points 0.5 mm / m
Self-leveling range	± 4 °
Typical leveling time	<4 s
Dust and splash protection	IP54
Energy supply / Operating time	4 x AA LR06 1.5 V / approx. 15 h   (2 lines + 5 points)
Dimensions (L x H x W)	155 x 118 x 56 mm
Weight including batteries	600 g

[/vc_tab][vc_tab title=”Gallery” tab_id=”gallery”] [/vc_tab][vc_tab title=”In The Box” tab_id=”inthebox”]

• GCL 25 Professional
• L-Boxx inlay
• 4 x AA Batteries

[/vc_tab][vc_tab title=”Downloads” tab_id=”downloads”]

Brochure

• Bosch GCL 25 Professional Leaflet

User Manual

• Bosch GSL 2 Surface Laser User Manual

[/vc_tab][/vc_tabs]

[vc_tabs interval=”0″ width=”1/1″ el_position=”first last”] [vc_tab title=”Description” tab_id=”description”]

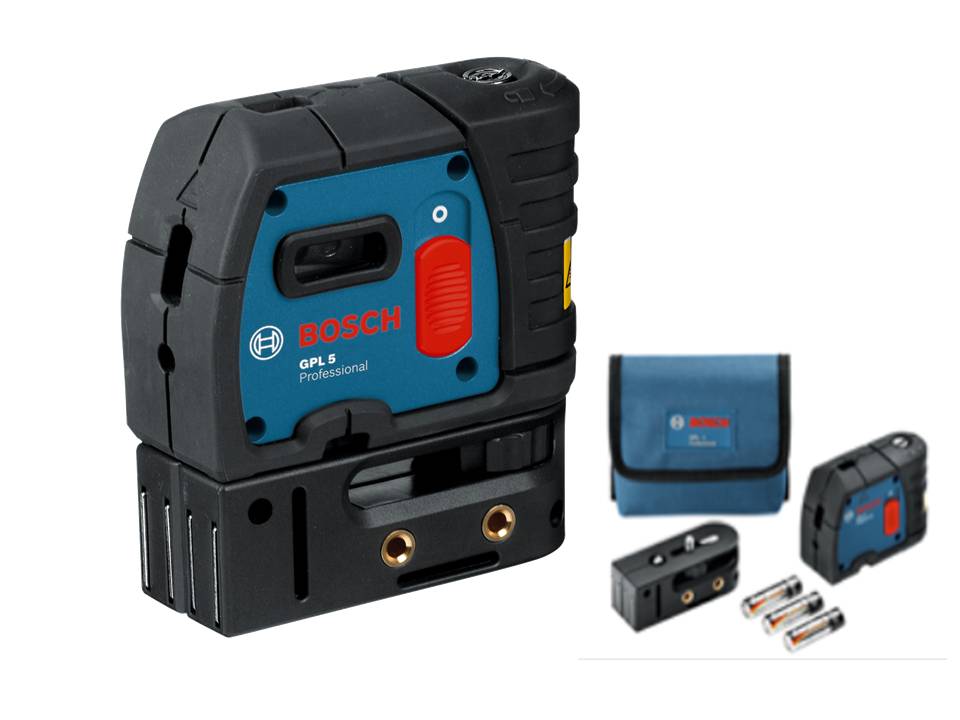

The compact Five-Point Laser Level GPL 5 Professional from Bosch

Advantages: Bosch GPL 5 Professional

Highly compact 5-point laser – for easy transfer of right angles

• Self-levelling 5-point horizontal and plumb laser for indoor work

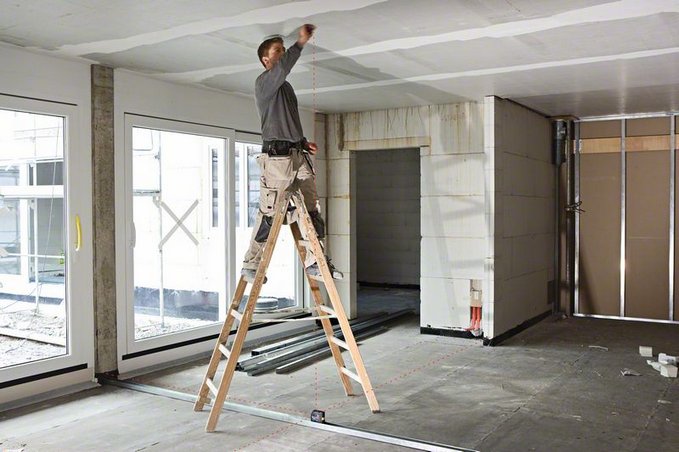

• For precise transfer of right angles and reference points from the ground to the ceiling
• Easy handling due to its very compact size
• Wide variety of fixing possibilities using the universal mount
• Working range of up to 30 m
• High levelling accuracy of ± 0.3 mm/m
• Dust and splash protection: IP5X

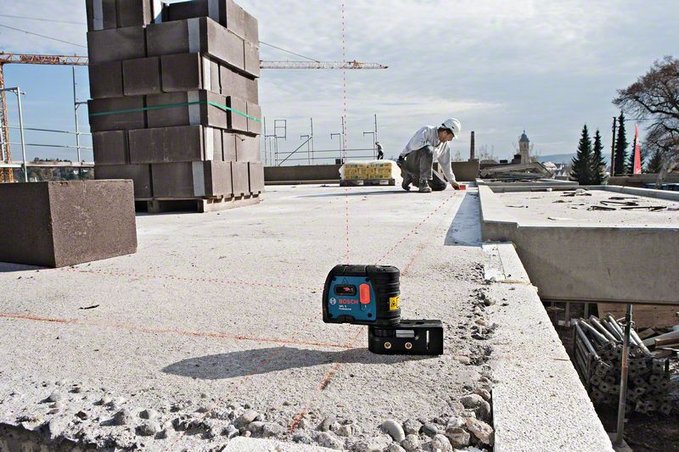

Clearly visible points of laser light up to a distance of 30 meters

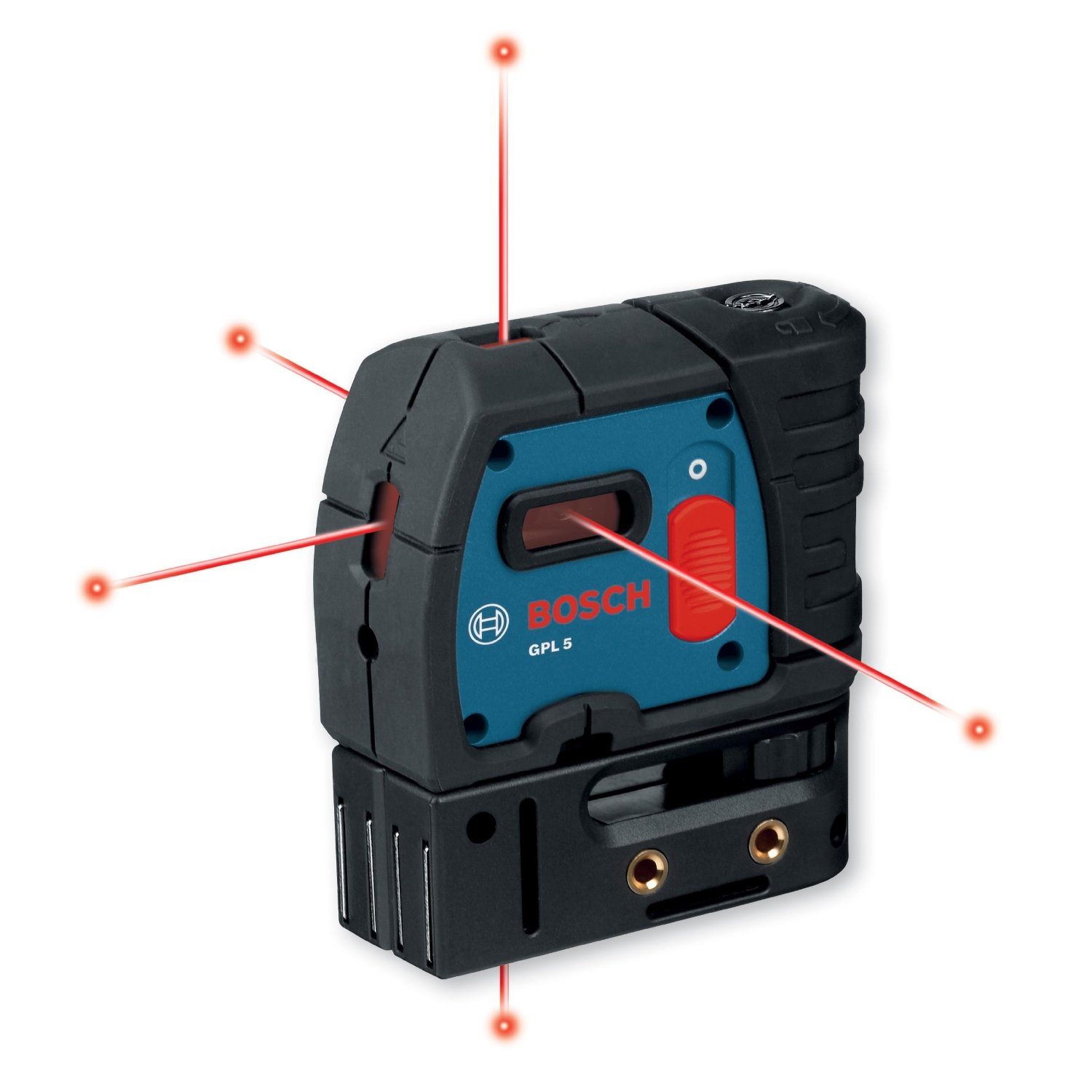

The GPL 5 Professional projects five perpendicular, strongly focused laser light beams, three of which in the horizontal direction and two in the vertical direction. The points of light are clearly visible both indoors and outdoors, even at distances of more than 30 meters.

The tool levels itself in less than four seconds for more convenient working. It has a leveling accuracy of 0.3 millimeters per meter. The tool is very easy to operate because it is set using only one button. To protect the leveling system, the pendulum remains locked once the point laser level is switched off. The wall holder that comes complete with the laser level offers a complete range of possibilities for fitting it in place: using magnets, using a tripod thread for ¼” camera tripods and ⅝” building tripods, and using straps.

[/vc_tab][vc_tab title=”Specifications” tab_id=”specifications”]

Technical data: Bosch GPL 5 Professional

Laser diode	635 nm, < 1 mW
Laser class	2
Working range	30 m
Self-levelling range	± 5° longitudinal axis, ± 3° transverse axis
Dust and splash protection	IP 5X
Beam diameter	5 mm on tool
Tripod thread	1/4″, 5/8″
Weight, approx.	0,25 kg
Length	104 mm
Width	40 mm
Height	80 mm
Projection	5 points

[/vc_tab][vc_tab title=”Gallery” tab_id=”gallery”] [/vc_tab][vc_tab title=”In The Box” tab_id=”inthebox”]

• Bosch GPL 5 Professional
• Protective Case
• Multifunctional mount
• 4 x 1.5 V batteries

[/vc_tab] [/vc_tabs]
