Reliable and Bright
Bosch’s GRL 300 HV self-leveling rotating laser projects 90-degree plumb and layout lines for squaring, with the laser plumb line continually available for the 90 degree layout of walls. Both horizontal and vertical beams are also conveniently self-leveling. The bright, highly visible, laser lines use smart laser technology to adjust laser luminosity while the rotating is occurring to promote maximum visibility and, at the same time, maintain safety class 2. It has a full array of beam enhancements, including variable speed selection and variable scan angles for maximum visibility in a range of light conditions. Also, the Bosch GRL 300HV has a very solid top housing assembly, which provides housing protection and access to the rotating head. The overall combination is robust, simple, and reliable.

Sturdy and User Friendly

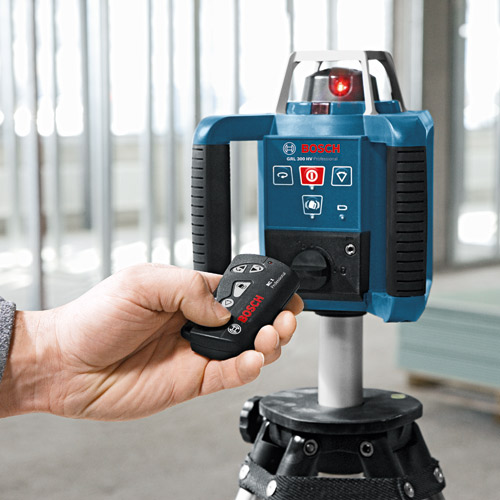

Bosch’s GRL 300 HV self-leveling rotating laser is IP54 rated, which means that it’s protected against dust and water, providing a longer product life. The battery tray is conveniently located to provide easy access to batteries and changing. There is a tactically oriented keypad that’s recessed and features a variety of functions, such as a single on/off button, variable speed rotation (there are four preset speeds), variable scan angle (there are four preset scan angles), a battery level indicator, and a disturbance monitor. These functions can also be replicated on the included pocket-sized remote, which comes in handy especially when the laser is mounted within hard-to-reach areas.

Multiple Applications
Thanks to its self-leveling rotation, bright lines, sturdy construction, and helpful features, the GRL 300 HV self-leveling rotating laser is an asset with a range of applications, including helping with projects having to do with ceiling installation, computer and access flooring, concrete interior, demountable walls, electrical and lighting installation and work, fire sprinkler leveling and layout, general leveling and layout, HVAC ducting and vents, partitions, wall stud installing, and others.

Bosch GRL 300HV Professional Features:

• Range up to 300 metres when used with the LR1 receiver
• Easy to operate thanks to one button per function and self-explanatory display
• Easy to set up in both the horizontal and vertical modes due to automatic self-levelling of 8% (± 5°)
• The shock warning function, which can be switched on and off, prevents levelling errors in the event of shocks or vibrations

Bosch Laser Receiver LR1 Features:

• Handy receiver for indoors and outdoors for ranges of up to 300 m in combination with Rotation Laser Level GRL 300 HV Professional
• Optical and acoustic alignment of the laser beam level
• Dust and splash protection (IP54)
• Top-mounted magnets for better fixing

Bosch GRL 300HV Professional Applications:

• General construction – Masonry, metal construction and wood construction
• Installation – Dry walls, partition walls, laying floors, laying sockets and laying air conditioning systems
• Finishing – Laying tiles and wall covering

[/vc_tab][vc_tab title=”Specifications” tab_id=”specifications”] Technical data: Bosch GRL 300HV Professional

Laser diode	635 nm, < 1 mW
Laser class	3R
Working range with receiver	300 m
Levelling accuracy	0,1 mm/m
Self-levelling range	± 5° (8%)
Dust and splash protection	IP 54
Rotation speed	150, 300, 600 rpm
Power supply	2 x 1.2 V HR20 (D) (9 Ah) / 2 x 1.5 V LR20 (D)
Tripod connection	5/8″
Weight	1.8 kg

[/vc_tab][vc_tab title=”Gallery” tab_id=”gallery”] [/vc_tab][vc_tab title=”In The Box” tab_id=”inthebox”]

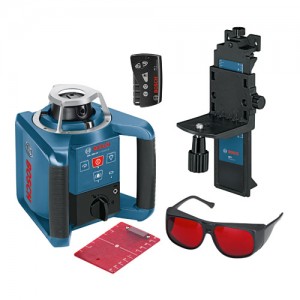

• Bosch GRL 300HV Professional
• Carrying case with EPP foam
• Target Plate
• Laser goggles
• Laser receiver LR 1 Professional
• Remote control RC 1 Professional

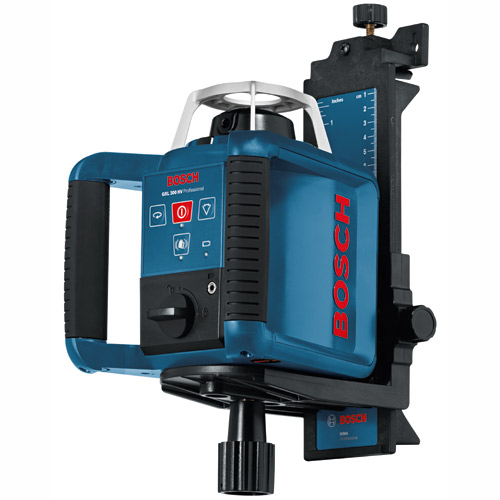

• Wall mount WM 4 Professional
• Alkaline batteries 2 x 1.5 v LR 20 (D)
• Bracket
• Compartment for Alkaline batteries

[/vc_tab] [/vc_tabs]

[vc_tabs interval=”0″ width=”1/1″ el_position=”first last”] [vc_tab title=”Description” tab_id=”description”]

Advantages: Bosch GRL 150HV SET Professional

• Horizontal and vertical self-levelling adjustment saves time
• One function = 1 button with self-explanatory LEDs – easy to use
• Long distance working with LR1 receiver
• Line function
• Metal protective cage – the head is protected in the event of a drop or shock
• IP 54 protected against dust and water projection (splash-proof)
• 2 ergonomic soft-grip handles
• Working distance 150m with the LR1 Receiver
• Keypads with large buttons, intuitive symbols and clear LEDs
• Works even after 1m drop onto concrete
• Works with rechargeable batteries, alkaline or plugged to mains
• Rotation mode: 150/300/600rpm
• Intuitive levelling process: similar to traffic light process, flashing green (levelling), static green (levelled) & red (cannot level – inclination is >5o)
• Scanning mode: 10 o / 30 o / 45o
• Battery status: white (status ok), flashing red (before changing the batteries), static red (batteries need charging – battery can be charged during use (charge time 14 hours)
• Shock warning function: white (not active – after a shock the laser levels again), green (active after a shock, the laser levels again). Red – active the laser has switched off due to a shock)
• 30 second delay after pushing the shock activation button – this must be activated when there is a significant risk that the laser position will be altered due to construction activities
• Strong magnets can be fixed to metallic studs
• Softgrip coating
• 2 self-explanatory displays on front and back
• Large reception area: 4cm high
• Integrated spirit level
• 9v alkaline battery
• Automatic switch-off after 10 mins or 10 mins idle

[/vc_tab][vc_tab title=”Specifications” tab_id=”specifications”] Technical data: Bosch GRL 150HV Professional

Laser diode	635 nm, < 5 mW
Operating temperature	-10 – 50 °C
Storage temperature	-20 – 50 °C
Laser class	2
Working range	30 m
Working range with receiver	150 m
Levelling accuracy	0,1 mm/m
Self-levelling range	± 8 % (± 5°)
Dust and splash protection	IP 54
Rotation speed	150, 300, 600 rpm
Beam diameter	5 mm on tool
Power supply	4 x 1.5 V LR20 (D)
Operating duration, max.	40 h
Tripod connection	5/8
Weight	1,8 kg
Length	170 mm
Width	183 mm
Height	186 mm

[/vc_tab][vc_tab title=”Gallery” tab_id=”gallery”] [/vc_tab][vc_tab title=”In The Box” tab_id=”inthebox”]

• Bosch GRL 150HV Professional
• Carrying Case
• Target Plate
• Laser goggles
• Laser receiver LR 1 Professional
