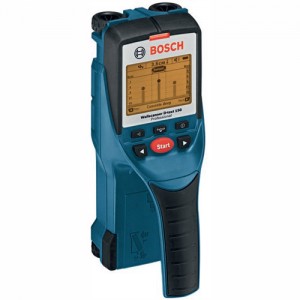

Advantages: D-tect 150 wallscanner Professional

Maximum precision for maximum safety when drilling

• The specialist for all professionals who wish to avoid accidentally striking unwanted objects when drilling
• Ultra wideband radar sensor system provides millimetre-accurate detection of ferrous/non-ferrous metals, live cables, wooden studs and even plastic pipes
• Precise detection of floor and wall heating systems
• Reliability due to accurate display of material properties
• Maximum safety due to display of maximum permitted drilling depth
• Five different modes enable the best possible detection on any surface
• Requires no calibration
• Results visible at a glance due to large display with graphical readout
• Optimum ease of operation due to ergonomic handle
• Ruler View: measuring distances between objects, millimeter-accurate marking on the wall

Detectable materials	Plastic pipes, ferrous metals, non-ferrous metals, wooden substructures, live cables
Max. detection depth	150 mm
Detection depth, steel, max.	150 mm
Accuracy	± 5 mm
Automatic deactivation facility, approx.	5 min
Power supply	4 x 1.5V LR6 (AA)
Weight, approx.	0,7 kg
Length	220 mm
Width	97 mm
Height	120 mm
Dust and splash guard	IP 54

• Bosch GMS 120
• Protective Case
• 4 x 1.5 V batteries

---

Consistent Material Coverage
With its three modes, Bosch’s GMS120 digital multi-scanner is an aid in most situations, as its modes cover wood studs, metal objects such as rebar, studs, and steel/copper pipes, and live wiring. It has precise automatic calibration that makes use easier and an automatic center finder, which pinpoints the center spot of the wood or material that has been detected.

Deep Detection
The GMS120 has a deep metal detection feature, which allows a user to detect steel that is placed up to 4-3/4-inches (120 mm) deep in cured concrete. It has a maximum detection depth of up to 2 inches for live wiring, up to 3-1/8 inches for copper, and up to 1-1/2 inches for wood studs.

User-Friendly Features
Bosch’s GMS120 digital multi-scanner provides an illuminated ring that indicates detection status and an audible detection signal with an on/off button. Adding to the user-focused design, its bright and readable illuminated graphical LCD display indicates mode, detection strength, and more, making it simple to check the detection device and switch modes and tasks. In addition, its ergonomic soft-grip provides a comfortable grip that’s secure and safe.

Advantages: GMS 120 Professional

The most reliable multi-detector in its class

• Maximum reliability: most objects are found and application errors are avoided due to the automatic calibration
• Reliable detection even of deep-lying objects – up to a depth of 12 cm
• Even more reliable detection of objects due to three-colour LED luminous ring
• Pinpoint indication of the object’s centre with the Centre Finder scale, and display of material properties
• Better visibility of the result due to illuminated display
• Marking hole with LED luminous ring
• Three detection modes for various applications: Drywall mode, metal mode, live cable mode

Detectable materials	Ferrous metals, non-ferrous metals, wooden substructures, live cables
Max. detection depth	120 mm
Detection depth, steel, max.	120 mm
Detection depth, copper, max.	80 mm
Detection depth of live cables, max.	50 mm
Detection depth of wooden substructures, max.	38 mm
Automatic deactivation facility, approx.	5 min
Power supply	1 x 9 V 6LR61
Weight, approx.	0,27 kg
Length	200 mm
Width	85 mm
Height	32 mm
Dust and splash guard	IP 54

• Bosch GMS 120
• Hand Strap
• Protective Case
• 1 x 9 V 6LR61 (block) battery

---

• Best in class precise location of metal objects
• Lightweight handheld device that provides quick and accurate detection of metal only
• Detects metal as deep as 10 cm below the surface allowing for safe drilling
• No centre of object detection, but accurate detection of the whole object
• 3 light system shows the user where is safe, when there is an object nearby and where the actual object is
• Reliable accurate and robust, perfect for any tradesman
• Automatic calibration saves end user time
• High sensitivity detection depth of up to 10 cm
• with all sensors placed round the marking hole
• New yellow LED ring will warn of nearby objects
• Simplicity of use single button operation allowing for straight forward use
• Detection of live wire cables (5cm)
• Calibration free
• Ideal for Plumbers detecting hidden pipes, Electricians tracing power supply lines or finding general hidden dangers
• 1 detection mode, easy to use
• 2 detection scales
• Rubber protection
• Marking hole
• Large display
• LED-ring – 3 colours
• Red = object detected
• Green = no detection
• Yellow = object nearby

Detectable materials	Ferrous metals, non-ferrous metals, live cables
Max. detection depth	100 mm
Detection depth, steel, max.	100 mm
Detection depth, copper, max.	80 mm
Detection depth of live cables, max.	50 mm
Automatic deactivation facility, approx.	5 min
Power supply	1 x 9 V 6LR61
Weight, approx.	0,26 kg
Length	200 mm
Width	85 mm
Height	32 mm
Dust and splash guard	IP 54

• Bosch GMS 100M
• Hand Strap
• 1 x 9 V 6LR61 (block) battery
