When Projecting a line or plumbing columns or walls, the Bosch DGT 10 will state to user the actual variance in true plumb and allow user to accurately and quickly turn the instrument back to a plumb position.

The CST/berger DGT 10 features dual digital displays and a simple 6-key user interface that makes using the instrument very simple and easy.

The Bosch DGT-10 inclused an optical plummet that allows the user to align instrument directly over a reference point without having to use the old plumbob method. The telescope is 30X and the minimum focus is 53″.

The DGT10 also features a 1:100 stadia ratio that allows operators to quickly estimate distances in the field. Working range is approximately 450′ in radius.

Features of Bosch DGT-10 Digital Electronic Theodolite

• State of the art glass encoder
• 5-10 second switchable horizontal and vertical angle readout.
• 2 LCD panels with large, easy-to-read numbers
• Crosshair and display panel illumination built-in
• Clockwise/Counterclockwise horizontal angle
  measurement options
• Three different ways to read vertical angles
• Auto Power Off Option: if unit is not moved it will shut off in- 20 minutes, 30 minutes or infinity.
• Optical plummet
• Water resistant, sealed construction
• Removable tribrach for multiple set-ups

When Projecting a line or plumbing columns or walls, the Bosch DGT 2 will state to user the actual variance in true plumb and allow user to accurately and quickly turn the instrument back to a plumb position.

The CST/berger DGT 2 features dual digital displays and a simple 6-key user interface that makes using the instrument very simple and easy.

The Bosch DGT-2 inclused an optical plummet that allows the user to align instrument directly over a reference point without having to use the old plumbob method. The telescope is 30X and the minimum focus is 53″.

The DGT2 also features a 1:100 stadia ratio that allows operators to quickly estimate distances in the field. Working range is approximately 450′ in radius.

Features of Bosch DGT-2 Digital Electronic Theodolite

• State of the art glass encoder
• 2 LCD panels with large, easy-to-read numbers
• 2 second horizontal and vertical readout
• Crosshair and display panel illumination built-in
• Clockwise/Counterclockwise horizontal angle measurement options
• Vertical angle measuring; provides three different options plus percentage of grade
• Vertical Tilt Sensor monitors the tilt angle in x-axis
• Three different ways to read vertical angles
• Zero resetting
• Auto Power Off Option: if unit is not moved it will shut off in- 20 minutes, 30 minutes or infinity.
• Can use rechargeable battery pack, or 4 AA Alkaline batteries. Average runtime of 15 hours using alkaline batteries.
• Optical plummet
• Water resistant, sealed construction
• Removable tribrach for multiple set-ups

Topcon DT-200 Series Features:

• Long Battery Life
• Waterproof and Dustproof Digital Theodolites

Available in three affordable models delivering 5″, 7″, or 9″ angle accuracy, there is a DT-200 theodolite perfect for any job. Like the DT-100 series, the DT-200 series weathers any wet or dust conditions in the field, allowing for a more productive day during inclement weather. All models are also compact and lightweight for easy portability; and their simple operation provides precise measurement in a functional, hassle-free package.

• Longer battery powering duration
  Longer battery powering durations using alkaline batteries. Continuous angle measurement for 150 hours. Laser continuous angle measurement for 45 hours.
• Absolute encoder is used
  Detection of 0° position is no longer needed. Stable, high-accuracy measurement.
• Laser pointer
  The laser pointer is injected in collimation direction by simply operating one switch. Workers can perform work without guidance by observation personnel.
• Excellent waterproof structure
  The theodolite body is guarded against a sudden torrential rain and dirt. The theodolite can be used reliably at work sites under severe conditions.
  JIS C 0920 protection class IP66 (Dustproof and waterproof types)

Leica Builder-106 Digital Theodolite

Alignment work made easy – Leica Geosystems offers Industrial & Construction Theodolites with outstanding performance and maximum flexibility.

Leica Builder 100 Series Construction Theodolites

The era of purely mechanical or optical instruments is over. This is the era where digital instruments are needed to remain competitive. The easy-to-use Leica Builder-106 leads the way and sets an industry’s benchmark.

For anybody working on or around a site with the need of a simple, intuitive, yet innovative, long-lasting and powerful measuring tool.

With the Leica Builder-106, Leica Geosystems has designed a perfectly tailored tool for every construction job. Regardless of your profession, the Builder will amazingly accelerate your work flow. From simple tasks to professional all-day use, the Builder Series offers a scalable product family that exactly meets your needs.

Leica Builder 100 – if you need to trust angles and alignments
With a laser plummet for simple and fast setup over control line, dual axis compensation for accurate plumbing, endless drives eliminating steps, audible notice for 90° turns, graphical leveling aid for fast and convenient setup and IP55 rating, the Leica Builder 100 is an outstanding theodolite.

Leica Builder-106 Set Digital Survey Theodolite Technical Specs:

Working in one of these businesses? Builder will increase your efficiency.

About Leica Geosystems – when it has to be right

With close to 200 years of experience pioneering solutions to measure the world, Leica Geosystems products and services are trusted by professionals worldwide to help them capture, analyze, and present spatial information. Leica Geosystems is best known for its broad array of products that capture accurately, model quickly, analyze easily, and visualize and present spatial information.

Those who use Leica Geosystems products every day trust them for their dependability, the value they deliver, and the superior customer support. Based in Heerbrugg, Switzerland, Leica Geosystems is a global company with tens of thousands of customers supported by more than 3,500 employees in 28 countries and hundreds of partners located in more than 120 countries around the world. Leica Geosystems is part of the Hexagon Group,

Leica Builder-109 Digital Theodolite

Alignment work made easy – Leica Geosystems offers Industrial & Construction Theodolites with outstanding performance and maximum flexibility.

Leica Builder 100 Series Construction Theodolites

The era of purely mechanical or optical instruments is over. This is the era where digital instruments are needed to remain competitive. The easy-to-use Leica Builder-109 leads the way and sets an industry’s benchmark.

For anybody working on or around a site with the need of a simple, intuitive, yet innovative, long-lasting and powerful measuring tool.

With the Leica Builder-109, Leica Geosystems has designed a perfectly tailored tool for every construction job. Regardless of your profession, the Builder will amazingly accelerate your work flow. From simple tasks to professional all-day use, the Builder Series offers a scalable product family that exactly meets your needs.

Leica Builder 100 – if you need to trust angles and alignments
With a laser plummet for simple and fast setup over control line, dual axis compensation for accurate plumbing, endless drives eliminating steps, audible notice for 90° turns, graphical leveling aid for fast and convenient setup and IP55 rating, the Leica Builder 100 is an outstanding theodolite.

Leica Builder-109 Set Digital Survey Theodolite Technical Specs:

Working in one of these businesses? Builder will increase your efficiency.

About Leica Geosystems – when it has to be right

With close to 200 years of experience pioneering solutions to measure the world, Leica Geosystems products and services are trusted by professionals worldwide to help them capture, analyze, and present spatial information. Leica Geosystems is best known for its broad array of products that capture accurately, model quickly, analyze easily, and visualize and present spatial information.

Those who use Leica Geosystems products every day trust them for their dependability, the value they deliver, and the superior customer support. Based in Heerbrugg, Switzerland, Leica Geosystems is a global company with tens of thousands of customers supported by more than 3,500 employees in 28 countries and hundreds of partners located in more than 120 countries around the world. Leica Geosystems is part of the Hexagon Group,

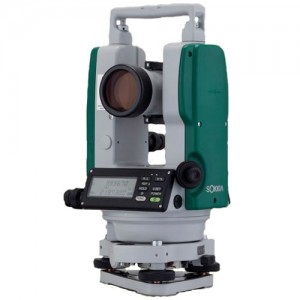

Sokkia Digital Theodolite ensure maximum job efficiency at unmatched performance levels. Sokkia’s new theodolites feature superior optics, advanced absolute encoder systems, and proven automatic compensators. In addition to these essential technologies, the Sokkia DTx40 DTx40L series boasts the industry’s highest IP66 dust and water protection capability to withstand the harshest jobsite environments.

Common Features for All Models:

• 2.5″ – unsurpassed telescope resolving power*

*except for the DT940L

• IP66 – industry’s highest dust/water protection rating

• Absolute encoders• Up to 170 hours of operating time

Exclusive Features for the Laser Models:

• 200m (660ft) – long-range laser pointer

• 0.4mm@10m – ultra-small beam spot

Sokkia’s Digital Theodolites allow you to survey with ease using the absolute encoder’s new algorithm that operates with remarkably reduced power consumption. When the instrument is restarted, the azimuth is automatically restored to save time on the job site. A large LCD screen provides clear angle reading under all conditions, and thanks to simple 4-key operation, no training is required

Variety of display modes

You can select the angle display unit that best suits you. Horizontal angle is switchable between clockwise and counterclockwise, and angle hold and 0-set functions are also provided. Vertical angle can be set to Zenith=0, Horizontal=0, Horizontal=0+/-, or % of slope.

Enhanced reliability with absolute encoders

Sokkia’s market-proven advanced absolute encoders, which utilize RAB (RAndom Bi-directional) code and digital sampling technology, further enhance the reliability of angle measurement. DT240 guarantees 2″ accuracy for both horizontal and vertical angles.

Ultra-long working hours

With Sokkia’s new algorithm in operating absolute encoders, power consumption has been dramatically reduced. Powered by 2 standard LR14/C alkaline batteries, the DT240 will operate for 75 hours.

One-key Start

You can start taking measurements as soon as you turn on the power, thanks to the absolute encoders. Moreover, azimuth is kept when restarting the instrument after turning off the power.

Easy-to-read, easy-to-use control panels

A large LCD screen provides clear angle readings under all conditions, and thanks to simple 4-key operation no training is required. The DT240 has control panels on both faces for added convenience.

Audible right-angle notification

Once the zero (0) horizontal angle direction is determined, all models emit audible tones for each of the four right-angle directions. Specifically, it sounds two different tones within +/-15 degrees of 90 degrees and stops beeping when it comes within +/-1 degree.

Superior IP66 protection

Complying with the tough IP66 standard for resistance to dust and water, both models offer superior dependability even under harsh environmental conditions.

Specifications

• Telescope Magnification: 30X
• Display Resolution (selectable) H & V: 1″/5″,0.2/1mg, 0.005/0.02mil
• Accuracy (ISO 12857-2 1997): 2″
• Display: LCD, 8 digits x 2 lines w/backlight
• Display location: On both faces
• Compensator: Dual-axis compensator, working range ±3″ (±55 mgon)
• Dust and water protection: IP66 (IEC60529)
• Weight with handle and battery: 4.7kg (10.3lb.)
• Battery: LR14/C batteries x2
• Continuous use with alkaline batteries: Approx. 75 hours

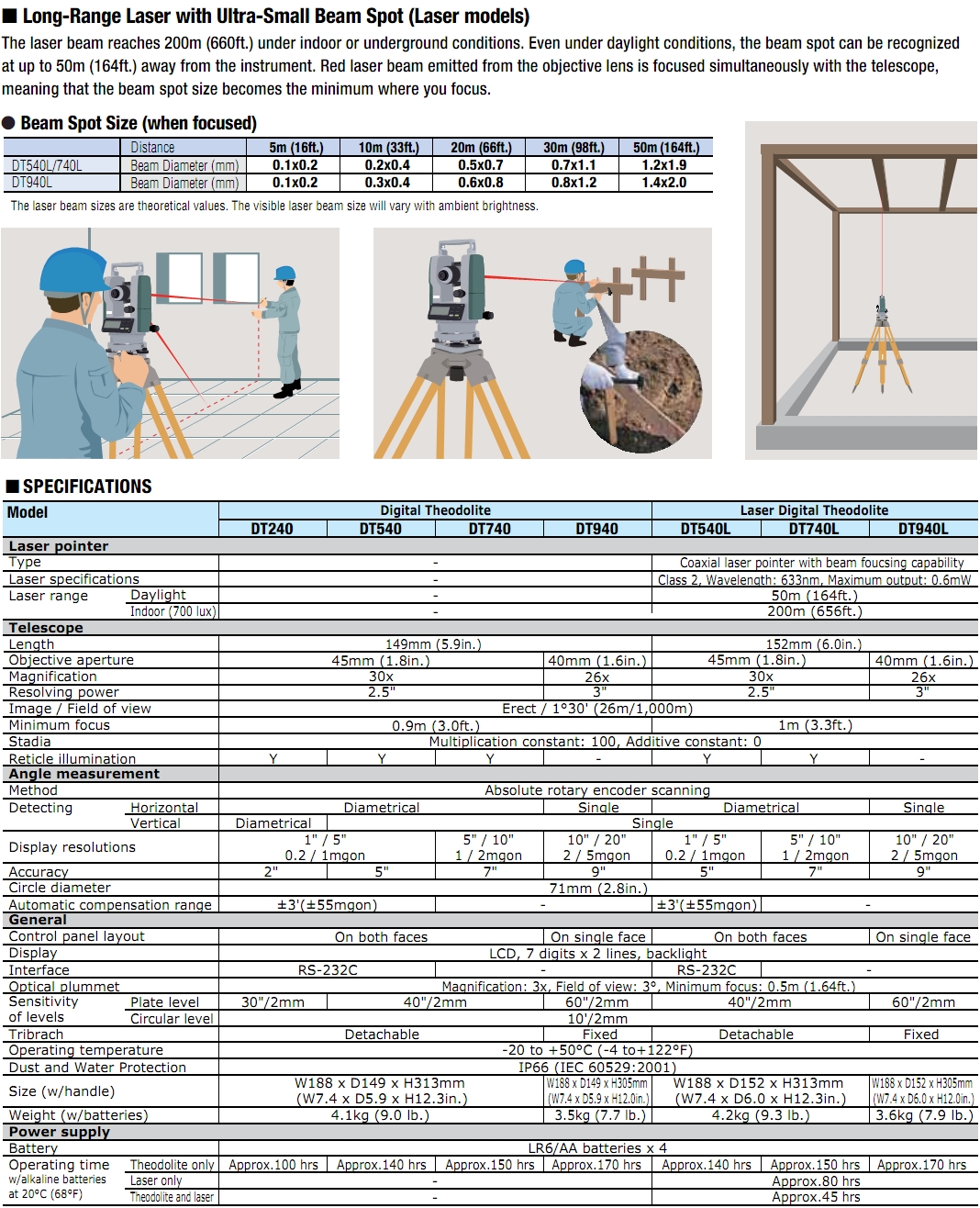

Sokkia Digital Theodolites Technical Specifications:
