Key Feature of Leica Flexline TS01 Reflectorless Total Station

Leica TS01 is a classic manual total station for standard measuring tasks, enabling you to carry out most survey and layout tasks easily and efficiently.

Be it building construction, civil engineering or surveying and mapping – the Leica TS 01 helps you tackle your daily challenges and tasks trouble-free:

• Managing directors of construction departments benefit from minimal downtime of your survey crews to deliver projects under budget and in time.
• Survey managers can rely on the highest product durability in the market, which increases your planning certainty.
• Surveyors work faster by measuring more points per day with less measurement errors and rework.

Leica FlexLine: The new generation of manual total stations
The new Leica FlexLine series is based on a proven product concept, revolutionising the world of measurement and survey for nearly 200 years. Unlike any other manual total stations in the market, Leica Geosystems manual total stations focus on providing the highest quality, the lowest total cost of ownership and the longest durability in the industry, enabling users to work with purpose-driven solutions for the best performance results.

The Leica TS01 Reflectorless Manual Total Station is one of the top-class instruments with an accurate EDM (Electronic Distance Measurement) technology that offers a reflectorless range up to 1,640 feet (500 m). This manual total station operates a range of 9,842 feet (3,000 m) using a single prism.

The TS 01 total station features a dual axis compensation with Hz collimation and V index correction, the Leica TS01 telescope has a 28x magnification, 3” resolving power and a focusing range of 4.92 feet to infinity. It utilizes a Laser class 2 laser plummet that covers a Diameter of laser point 2.5 mm at 1.5 m instrument height. To easily manage data, it has an RS232 interface and a USB stick interface.

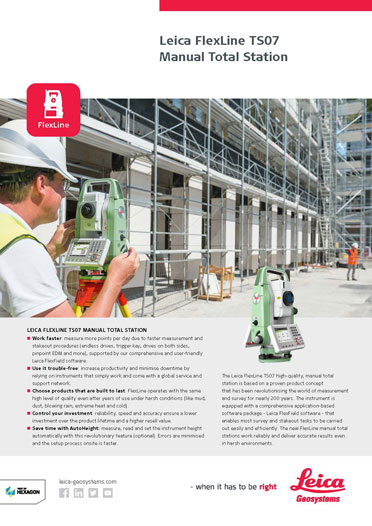

Key Feature of Leica Flexline TS 07 Reflectorless Total Station

Leica FlexLine TS07 is a manual total station, enabling you to carry out mid- to high-accuracy survey and stakeout tasks easily and efficiently.

Building construction, civil engineering, or surveying and mapping professionals benefit from the Flexline TS07 helping them solve their daily professional challenges and tasks:

• Managing directors of construction departments benefit from minimal downtime of your survey crews to deliver projects under budget and in time.
• Survey managers can rely on the highest product durability in the market, which increases your planning certainty.
• Surveyors work faster by measuring more points per day with less measurement errors and rework.

Leica FlexLine: The new generation of manual total stations
The new Leica FlexLine series is based on a proven product concept, revolutionising the world of measurement and survey for nearly 200 years. Unlike any other manual total stations in the market, Leica Geosystems manual total stations focus on providing the highest quality, the lowest total cost of ownership and the longest durability in the industry, enabling users to work with purpose-driven solutions for the best performance results.

AutoHeight: Revolutionising instrument height measurement
The Leica TS 07 offers the world’s first AutoHeight feature as an option. AutoHeight enables the instrument to automatically measure, read and set its instrument height. Prevent time consuming manual effort and eliminate critical errors during the instrument setup when this revolutionary feature uses a laser from the instrument to measure to the ground and automatically passes the measurement to the software.

Leica FlexField software: Comprehensive, intuitive and easy to use
The Leica Flexline TS 07  Total Station is equipped with the Leica FlexField software, an intuitive, easy-to-use and familiar software. Guided workflows and easy to understand graphics and icons ensure a low learning curve when working in the field. The software makes the interpretation of measurement values or text no longer necessary and guarantees a faster and simple operation when you need it. With its pinpoint distance measurement system, you will be able to measure to both prisms and any surfaces.

The Leica FlexLine TS07 Reflectorless Manual Total Station is high-quality surveying equipment that is used for efficient and convenient survey, stakeout, and area investigation applications. Offering a reflectorless range of up to 1,640 feet (500 m) with the R500 EDM, this manual total station also measures a reflectorless range of up to 3,280 feet (1,000 m) with the R1000 EDM and range up to 11,483 feet (3,500 m) with a single prism. It also uses the Leica FlexField software which generates stable and accurate results in any environment.

This Leica FlexLine total station has a quadruple axis compensation which combines the Hz collimation and V-index correction. Equipped with a USB stick and SD card interface, this reflectorless total station accommodates an internal flash memory of 2GB and a 1GB SD RAM. Also, the TS07 also boasts WLAN (wireless local area network) and Bluetooth connectivity for easy on-site device communication. Plus, it uses a Laserclass 2 laser plummet and optional guide light for setting out.

The FlexLine TS07 Leica total station flaunts a 3.5-inch colored touchscreen LCD display with one illuminated keyboard. There is also an option of a second keyboard for more convenience. It features an IP66 rating which protects the instrument from dust and water. This total station uses exchangeable Li-ion batteries that power the device for up to 30 hours. In addition, the TS 07 total station can automatically measure, read, and set the instrument height with the optional AutoHeight feature to minimize errors and deliver a faster setup process.

Key Feature of Leica Flexline TS 03 Reflectorless Total Station

Leica FlexLine TS03 is a classic manual total station for standard measuring tasks, enabling you to carry out most survey and layout tasks easily and efficiently.

Be it building construction, civil engineering or surveying and mapping – the Leica TS03 helps you tackle your daily challenges and tasks trouble-free:

• Managing directors of construction departments benefit from minimal downtime of your survey crews to deliver projects under budget and in time.
• Survey managers can rely on the highest product durability in the market, which increases your planning certainty.
• Surveyors work faster by measuring more points per day with less measurement errors and rework.

Leica FlexLine: The new generation of manual total stations
The new Leica FlexLine series is based on a proven product concept, revolutionising the world of measurement and survey for nearly 200 years. Unlike any other manual total stations in the market, Leica Geosystems manual total stations focus on providing the highest quality, the lowest total cost of ownership and the longest durability in the industry, enabling users to work with purpose-driven solutions for the best performance results.

Leica FlexField software: Comprehensive, intuitive and easy to use
The Flexline TS03 Total Station is equipped with the Leica FlexField software, an intuitive, easy-to-use and familiar software. Guided workflows and easy to understand graphics and icons ensure a low learning curve when working in the field. The software makes the interpretation of measurement values or text no longer necessary and guarantees a faster and simple operation when you need it. With its pinpoint distance measurement system, you will be able to measure to both prisms and any surfaces.

The Leica FlexLine TS03 Reflectorless Manual Total Station is one of the top-class instruments with an accurate EDM (Electronic Distance Measurement) technology that offers a reflectorless range up to 1,640 feet (500 m). This manual total station operates a range of 11,483 feet (3,500 m) using a single prism. It is also equipped with a broad application-based Leica FlexField software for better surveying and stakeout performance.

The FlexLine TS 03 total station features a quadruple axis compensation that has a setting accuracy of up to 0.5 second and range of ±4’. For better target viewing, the TS03 telescope has a 30x magnification, 3” resolving power and a focusing range of 5.05 feet to infinity. It utilizes a Laserclass 2 laser plummet that covers a diameter of 0.1 inches at 4.9 feet instrument height. To easily manage data, it has an RS232 interface and a USB stick/SD card interface, which can accommodate 2GB internal flash memory and a 1GB SD card RAM.

Key Feature of Leica iCON iCB70 Reflectorless Total Station

The next generation of Leica iCON total stations further propels the industry to move from traditional analogue layout methods to digitalised construction layout techniques. Now integrated with the well-established and construction-tailored field software Leica iCON build, the iCON iCB70 allow users to easily digitalise and embed BIM workflows in their construction processes. With an all-new premium design, the iCB70 allow construction professionals to layout complex structures, increase accuracy and minimise delays. Featuring a new integrated 4G modem, the iCB70 enables the operator to transfer construction data between the office and the instrument on site.

The Leica iCON iCB70 allows users to:

• Keep tight project tolerances by measuring to a prism
• Layout points and lines quickly and accurately, even on complex structures
• Perform verticality checks on formwork and structures
• Complete fast and accurate as-built measurements
• Report volume calculations directly on site
• Work with digital design data including fully rendered models in IFC format
• Transfer construction data directly to and from the instrument

Equipped with the construction-tailored and easy-to-use software platform iCON build, the Leica iCON iCB70  construction total station guarantees efficient layout and as-built tasks. Forget about paper plans, tapes, plumb-bobs and chalk-line that cause error-prone layout jobs on your construction site. Leica Geosystems’ new manual construction total stations support you in your no-tapes and no-strings approach to construction layout.

The iCON iCB70 features:

• iCON build with ‘build plus’ on-board software
• 5 inch colour touch screen and full numeric keyboard
• FineFocus telescope to simply aim to a defined target
• 1″, 2″ and 5″ angular accuracy
• Prism and reflectorless measurements
• Bluetooth and WLAN
• Mobile data (GSM / GPRS / UMTS / LTE) as an option
• IP66 rating

Key Feature of Leica iCON Builder-62 Reflectorless Total Station

Construction layout has never been more professional than with Leica iCON builder 60 series total station. The intuitive user interface paired with the highest quality total station perfects any job on site. You perform construction layout tasks fast and easy thanks to the simple, straight forward application software.

The Leica builder 62 total station is built especially with construction workers in mind, providing an entry into the world of Leica Geosystems intelligent CONstruction (iCON) solution.

Leica iCON Builder 62 delivers with:

• Leica iCON build – Industry leading layout software
• Best-in-class measurement technology

All the functionality you need
iCON builder 62 total station can be used for many different tasks in many different ways, for example as a one-person station for checks such as tie distances clearance or verticality. Easily connect a tablet computer via the internal Bluetooth and you instantly benefit from a larger screen.

Intuitive software
The user interface is easy to understand and offers you graphical map view for quick navigation and point/line selection. Leica iCON builder 60 series total station saves you time by short and straightforward operating procedures. Get quick results and save time, speeding up your layout measurements on site.

Key Feature of Leica Flexline TS02plus Reflectorless Total Station

PinPoint EDM The most precise in its class (1.5 mm + 2 ppm) 500 meters without prism Coaxial laser pointer and measurement beam	Large high-resolution display At-a-glance viewing on the largest high-resolution display in its class Everything at a glance without paging due to extra large size Intuitive icons to navigate through the menus	FlexField plus Modern and intuitive onboard software for higher productivity Low learning curve due to guided workflows Icons to quickly verify instrument status
Alpha-numerical keyboard Fast and error free entry of characters with full numeric keypad Advanced black & white Keyboard Intuitive graphics to fasten application tasks	Useful tools A range of tools, such as a trigger key and laser plummet, speed up your work	mySecurity Unique theft protection locking mechanism Prevents unauthorized persons usage Increases data security

The successful Leica FlexLine TS02plus benefits from a best-in-class large high resolution display that’s complemented by the graphical easy-to-use FlexField plus onboard software. It is designed for standard measurement tasks, including a set of field application software for daily work. Whenever high distance measurement is required, you can face the challenge of this demanding task with the Flexline TS 02 plus. It offers the most accurate Electronic Distance Measurement in its class.

State-of-the-art simplicity with the standard-keyboard and the high resolution display

• Low number of operating elements, whose functions are immediately apparent
• At-a-glance viewing on the largest high-resolution display in its class
• Optimally suited to new users and all those on the construction site who do not use the instrument daily

Best-in-class Electronic Distance Measurement (EDM)

• With PinPoint EDM, FlexLine plus delivers the optimal balance of range, accuracy, reliability, beam visibility, laser dot size and measurement time.
• 1.5 mm + 2 ppm to prism
• 2 mm + 2 ppm to any surface
• Extremely fast (2 seconds)
• 500 m range without a prism
• Coaxial laser pointer and measurement beam

Work intuitively with the new Leica FlexField plus onboard software

• Low learning curve due to guided workflows
• Easy to understand graphics and icons
• Icons to quickly verify instrument status
• Faster operation due to graphics which make the interpretation of measurement values or text no longer necessary

Theft protection by Leica Geosystems – mySecurity

• mySecurity gives you total peace of mind
• If your instrument is ever stolen, a locking mechanism is available to ensure that the device is disabled and can no longer be used
