[vc_tabs interval=”0″ width=”1/1″ el_position=”first last”] [vc_tab title=”Description” tab_id=”description”]

Rugged and waterproof (IPX-7), the Magellan eXplorist 710 combines high sensitivity GPS reception with easy to read mapping and accurate navigation. Find your way using more than 30 navigational data fields. Create waypoints, record tracks, and route from point to point. The integrated 3.2 mega-pixel camera, microphone, and speaker enable outdoor enthusiasts to record geo-referenced images and voice notes. Relive your outdoor adventures on the device, on your computer, or share with others on various online communities like geocaching.com.

The Magellan eXplorist 710 packs the most accurate maps into the palm of your hand. The World Edition map allows for 2D or 3D viewing angles. It includes a complete road network in United States, Canada, Western Europe, and Australia and major roads throughout the rest of the world and provides cartographic orientation in almost any location. This unique, preloaded map also includes water features, urban and rural land use, and a realistic shaded relief background. The Magellan eXplorist 710 also includes City Series and Summit Series USA maps, Summit Series USA is a highly detailed topographic map based on 1:24,000 scale source maps. The maps includes contour lines, land use areas, trails, waterways and points of interest. Locate the nearest trailhead. Search for the nearest bike shops, fuel stations, or potable water source. Navigate safely in 3D perspective view while knowing the boundaries between private and public lands. City Series USA allows your eXplorist device to navigate through the city streets with turn-by-turn directions on your way to escaping to your favorite open spaces. Enter a variety of destinations, including address book entries, waypoints, geocaches, or previous destinations.

Enjoy paperless geocaching with the Magellan eXplorist 710. Download and view more than 20 unique characteristics of each cache and view, search, filter on the device. Details include name, location, description, hider, size, difficulty, terrain, hint, and recent logs created by other geocachers.

The best of both worlds, the eXplorist 710 combines the user friendliness of a touch screen with the reliability of two customizable hard buttons. Program the hard buttons to your two favorite or most used functions. Powered by two AA batteries, the Magellan eXplorist 710 will last up to 16 hours under normal conditions. To help conserve power, use the suspend mode to turn off the device but maintain GPS tracking. You can also adjust power management settings to your preference.

Magellan’s award winning OneTouch™ favorites menu is now on our handheld devices. It provides instant access to bookmarks of favorite places. Set your home, base camp, and car. Easily re-assign a new location for each new adventure. 12 customizable icons to create personalized searches, save unique locations, or assign quick access to your favorite screens.

[/vc_tab][vc_tab title=”Features” tab_id=”features”]

• Core Outdoor Navigation Rugged and waterproof, the eXplorist combines high sensitivity GPS reception with aesthetic mapping and accurate navigation. Find your way using more than 30 navigational data fields. Create waypoints, record tracks, and route from point to point.
• Experience Recording Integrated 3.2 mega-pixel camera, microphone, and speaker enables outdoor enthusiasts to record geo-referenced images and voice notes. Relive your outdoor adventures on the device, on your computer, or share with others on various online communities.
• Superior Maps with 3D Perspective View The eXplorist series packs some of the most accurate maps into the palm of your hand. The World Edition map allows for 2D or 3D viewing angles and covers the globe with details roads and land use areas. Summit Series is a new breed of topographic outdoor maps covering various regions with high level of detail. City Series will add turn-by-turn routing to your handheld GPS receiver.
• 3.0″ Touch Screen and Button Controls The best of both worlds, the eXplorist combines the user friendliness of a touch screen with the reliability of two customizable hard buttons. Program the hard buttons to your two favorite or most used functions.
• 3-axis Electronic Compass & Barometric Altimeter* Always know exactly where you are going, which direction is north, and your accurate altitude about sea level with built-in sensors. Know the direction to the geocache while standing still. Measure barometric pressure over time to track changing weather conditions. Use a number of different digital compass’ to always understand your cardinal directions.
• Paperless Geocaching Download and view more than 20 unique characteristics of each cache and view, search, filter on the device. Details include name, location, description, hider, size, difficulty, terrain, hint, and recent logs created by other geocachers.
• 16 Hours of Battery Life Powered by two AA batteries, the eXplorist 710 will last up to 16 hours under normal conditions. To help conserve power, use the suspend mode to turn off the device but maintain GPS tracking. You can also adjust power management settings to your preference.
• OneTouch™ Menu Magellan’s award winning OneTouch™ favorites menu is now on our handheld devices. It provides instant access to bookmarks of favorite places. Set your home, base camp, and car. Easily re-assign a new location for each new adventure. 12 customizable icons to create personalized searches, save unique locations, or assign quick access to your favorite screens.
• World Edition Pre-loaded Map The World Edition includes a complete road network in United States, Canada, Western Europe, and Australia and major roads throughout the rest of the world that provides cartographic orientation in almost any location. This unique preloaded map also includes water features, urban and rural land use, and a realistic shaded relief background.
• Summit Series USA Summit Series USA is highly detailed topographic map based on 1:24,000 scale source maps. The map includes contour lines, land use areas, trails, waterways, and points of interest. Locate the nearest trailhead. Search nearest bike shops, fuel stations, or potable water source. Navigate safely in 3D perspective view while knowing the boundaries between private and public lands.
• City Series City Series USA allows your eXplorist device to navigate through the city streets with turn-by-turn directions on your way to escaping to your favorite open spaces. Enter a variety of destinations, including address book entries, waypoints, geocaches, or previous destinations.
• Navionics® Map Compatibility. Navionics is a world of products that enhance your enjoyment on and off your boat. Simply purchase a Navionics Gold Chart, HotMaps® Premium, or FishN’ Chip Region (sold separately) and plug the SD Card into the eXplorist 510, 610 or 710.

[/vc_tab][vc_tab title=”Specifications” tab_id=”specifications”]

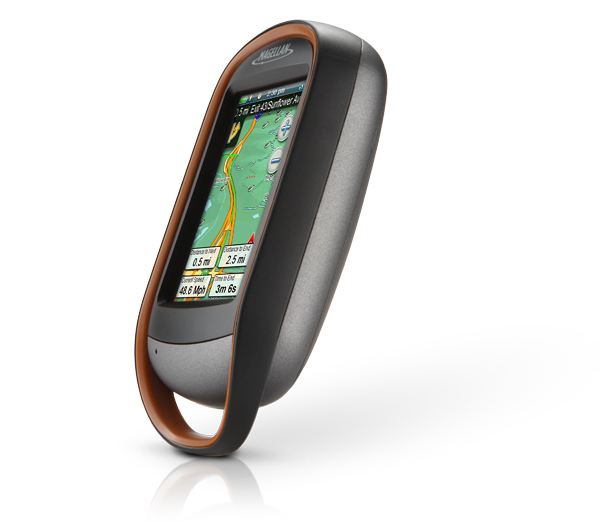

Technical data: Magellan eXplorist 710 Handheld GPS

Product Number	TX0710SGXUS
DEVICE
Dimensions (English)	2.57″ x 5.04″ x 1.45″
Dimensions (Metric)	65.3mm x 128mm x 36.8mm
Weight (English)	6.87oz
Weight (Metric)	195g
Battery Type	2xAA
Battery Life	16 Hours
Camera	Yes
Microphone	Yes
Waterproof	IPX-7
Speaker	Yes
Available User Storage	3 GB
CPU	400MHz
Expandable Memory	microSD
Temperature Range (F)	14F to 140F
Temperature Range ©	-10C to 60C
Suspend Mode	Yes
Internal Memory	8 GB
SCREEN
Display Resolution, WxH	WQVGA
Screen Size	3.0″
Display Type	Color, Transflective
Touch Screen	Yes
GPS & SENSORS
GPS Accuracy	Up to 3-5 meters
High-Sensitivity GPS	SiRFstarIII™
Antenna Type	Multidirectional Patch
3-Axis Electronic Compass	Yes
WAAS/EGNOS/MSAS	Yes
MAPPING & NAVIGATION
Preloaded Maps	World Edition + Summit Series USA
Uploadable Maps	Yes
Points of Interest	Yes
Turn-by-Turn Routing	Yes
Vertical Profile	Yes
Area Calculation	Yes
Hunt & Fish Calendar	Yes
Sun & Moon Information	Yes
Coordinates Systems & Datums	Yes
User Grid	Yes
OneTouch Favorites Menu	Yes
Audible Proximity Alarms	Yes
Silent Proximity Alarms	Yes
Navionics® Map Compatible	Yes
USER GENERATED CONTENT
Accepts GPX Files	Yes
Waypoints	2000
Routes	200
Geocaches	10000
Legs Per Route	500
Paperless Geocaching	Yes
Picture Viewer	Yes
Tracks	200
Points Per Track	10000
User Data Online Sharing	Yes
INTERFACE & COMMUNICATIONS
Communication Protocol	USB Mass Storage
USB Port	Yes
NMEA Output	Yes
PC Compatible	Yes

[/vc_tab][vc_tab title=”Gallery” tab_id=”gallery”] [/vc_tab][vc_tab title=”Downloads” tab_id=”downloads”]

Brochure

• Magellan eXplorist 710 Handheld GPS Leaflet

User Manual

• Magellan eXplorist 710 Handheld GPS User Manual

[/vc_tab] [/vc_tabs]

[vc_separator width=”1/1″ el_position=”first last”]

About Magellan

Magellan is a leading portable GPS navigation consumer electronics company. Founded in 1986 and with over 200 key patents in GPS technology, Magellan is recognized as an industry innovator and leader. Magellan is the creator of the award-winning Magellan RoadMate®, and Maestro™ series portable car navigation products, as well as the Magellan Triton® and eXplorist® outdoor handheld navigation devices. Magellan is also proud to offer innovative Mobile GPS solutions including the RoadMate App for iPhone and Premium Car Kit accessory.

[vc_tabs interval=”0″ width=”1/1″ el_position=”first last”] [vc_tab title=”Description” tab_id=”description”]

The eXplorist 310 is pre-loaded with the World Edition map, which includes a complete road network in the United States, Canada, Western Europe, and Australia and major roads throughout the rest of the world. This unique preloaded map also includes water features, urban and rural land use, and city centers. Regional versions of Magellan’s Summit Series topographic maps are available for download to expand mapping coverage and level of detail.

A vibrant, transflective color screen allows for the best readability in direct sunlight. To zero in on the exact location of a geocache, favorite fishing spot, or the next summit, the SiRF star III GPS chipset provides accuracy of 10-15 feet (3-5 meters). To keep your outdoor adventure going all day long, the device is powered by two AA batteries for 18 hours of constant usage. The Magellan eXplorist 310 is rugged, waterproof, and submersible (IPX-7). All of this is packed into a small and attractive handheld form factor that can be hung around your neck with the optional Magellan lanyard or attached to your pack with the built-in carabineer hook.

The Magellan eXplorist 310 provides unmatched assistance with navigation, such as the combination of the world’s two most useful navigational tools – a compass and a map! Overlay a series of different transparent compass styles on top of a pre-loaded worldwide map that show roads, water features, parks, and city centers. Access the dashboard screen that shows a mini-compass for quick reference and customizable navigation data fields, such as latitude, longitude, heading, bearing, distance to end, trip odometer, and many more. Go back to the map screen and view your active track, which is a series of digital breadcrumbs to record all yours movements. Mark your starting point (car, trailhead, parking lot…) with a waypoint and easily navigate back to that location at the end of the day.

The eXplorist 310 supports paperless geocaching, which allows you to download more than 20 unique characteristics of each cache, including name, location, description, hider, size, difficulty, terrain, hint, spoilers, attributes, and last 20 user logs among a number of other details.

Reference your track summary to keep track of your distance travelled, elevation gained or lost, complete travel time, moving time and stopped time, and average time to find. Easily reset your track summary statistics to track the details of your next geocaching adventure.

No matter where you enjoy the outdoors, the eXplorist 310 GPS receiver will provide precise GPS signals thanks to the Satellite Based Augmentation Systems (SBAS) of WAAS, EGNOS, and MSAS; display coordinates in a myriad of different global systems, including UTM and WGS84; and accurately guide you to and from your next adventure, where ever in the world that may be!

[/vc_tab][vc_tab title=”Features” tab_id=”features”]

Easy to Navigate Menus and Rich Graphics

A simple main menu, intuitive contextual menus, and vibrant graphics make this device easy to use

Brilliant, sunlight readable color screen

A vibrant 2.2” color transflective screen provides the best readability in direct sunlight

Rugged and waterproof to IPX-7 standards

Focus on the adventure not protecting the device

High-sensitivity SiRFstarIII GPS with 3-5 meter accuracy

3-5 meter GPS accuracy provides a superior navigation experience

Pre-loaded World Edition Map

Referencing a complete road network in North America and Western Europe and major roads throughout the rest of the populated world to help in orientation. See parks, rivers, lakes, major city points, and other types of land use areas.

18 Hours of battery life using 2 AA batteries

Go strong for an entire day (or more). No stopping to replace the batteries.

Suspend Mode

The goal is to conserve battery life by putting the device into an advanced power saving mode. Suspend mode will turn off everything except for GPS tracking. Wake up the device with a single click.

Paperless Geocaching

Download and view more than 20 unique characteristics of each cache and view, search, filter on the device. Details include name, location, description, hider, size, difficulty, terrain, hint, spoilers, and last 20 user logs among a number of other details.

500 megabytes of user memory available

Loads of space to store additional maps, geocaches, waypoints, and tracks.

Record Tracks and See “Breadcrumbs” on the Map Screen

Keep a log of all the steps you took throughout the day. Reference your track to find your way back or to keep a digital journal of all your outdoor adventures

Track Summary

Start your journey with one-click and keep tabs on useful statistics such as distance travelled, average speed, elevation gain and descent, and average time to find

NMEA Message Output (USB Only)

For hardcore outdoor GPS enthusiasts who want to connect their device to laptop running VantagePoint software and see your position on computer screen.

Multiple Coordinates and Map Datums

Navigate around the world and do it accurately. See your geographic location in UTM coordinates or reference the OS Grid for use in Great Britain

[/vc_tab][vc_tab title=”Specifications” tab_id=”specifications”]

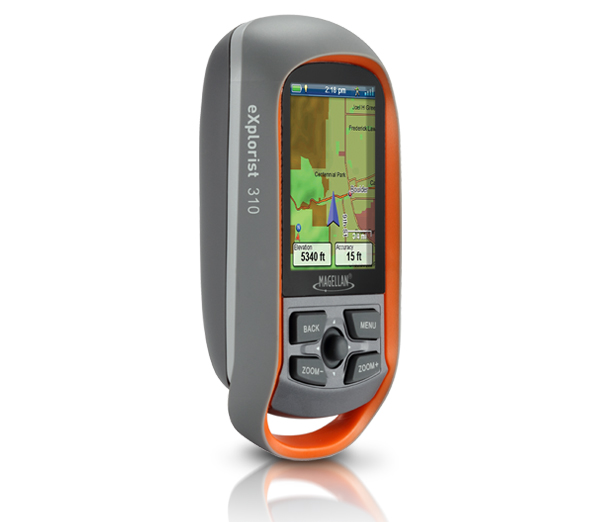

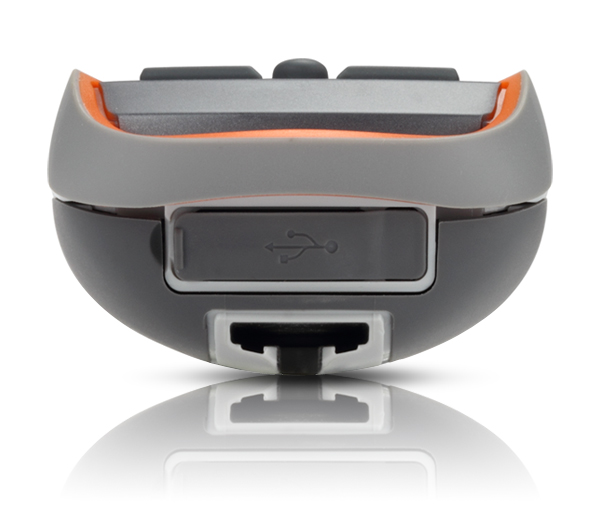

Technical data: Magellan eXplorist 310 Handheld GPS

Product Number	CX0310SGXNA
DEVICE
Dimensions (English)	2.2″ x 4.4″ x 1.4″
Dimensions (Metric)	56mm x 111mm x 36mm
Weight (English)	5.20z
Weight (Metric)	147g
Battery Type	2xAA
Battery Life	18 Hours
Waterproof	IPX-7
Available User Storage	500 MB
CPU	400MHz
Temperature Range (F)	14F to 140F
Temperature Range ©	-10C to 60C
Suspend Mode	Yes
Internal Memory	2 GB
SCREEN
Display Resolution, WxH	QVGA, 240 x 320
Screen Size	2.2″
Display Type	Color, Transflective
GPS & SENSORS
GPS Accuracy	Up to 3-5 meters
High-Sensitivity GPS	SiRFstarIII™
Antenna Type	Multidirectional Patch
WAAS/EGNOS/MSAS	Yes
MAPPING & NAVIGATION
Preloaded Maps	World Edition
Uploadable Maps	Yes
Points of Interest	Yes
Vertical Profile	Yes
Area Calculation	Yes
Hunt & Fish Calendar	Yes
Sun & Moon Information	Yes
Coordinates Systems & Datums	Yes
Audible Proximity Alarms	Yes
USER GENERATED CONTENT
Accepts GPX Files	Yes
Waypoints	1000
Routes	50
Geocaches	10000
Legs Per Route	50
Paperless Geocaching	Yes
Picture Viewer	Yes
Tracks	50
Points Per Track	10000
User Data Online Sharing	Yes
INTERFACE & COMMUNICATIONS
Communication Protocol	USB Mass Storage
USB Port	Yes
NMEA Output	Yes
PC Compatible	Yes

[/vc_tab][vc_tab title=”Gallery” tab_id=”gallery”] [/vc_tab][vc_tab title=”Downloads” tab_id=”downloads”]

Brochure

• Magellan eXplorist 310 Handheld GPS Leaflet

User Manual

• Magellan eXplorist 310 Handheld GPS User Manual

[/vc_tab] [/vc_tabs]

[vc_separator width=”1/1″ el_position=”first last”]

About Magellan

Magellan is a leading portable GPS navigation consumer electronics company. Founded in 1986 and with over 200 key patents in GPS technology, Magellan is recognized as an industry innovator and leader. Magellan is the creator of the award-winning Magellan RoadMate®, and Maestro™ series portable car navigation products, as well as the Magellan Triton® and eXplorist® outdoor handheld navigation devices. Magellan is also proud to offer innovative Mobile GPS solutions including the RoadMate App for iPhone and Premium Car Kit accessory.

[vc_tabs interval=”0″ width=”1/1″ el_position=”first last”] [vc_tab title=”Description” tab_id=”description”]

With a powerful 533MHz processor, 128MB RAM, and 4GB of onboard storage, the high-performance, handheld Magellan eXplorist Pro 10 provides all the power needed to work with maps and large-data sets away from the office. Its Windows Mobile® v6.5 operating system allows you to choose a software solution designed specifically for your needs. The unit’s built-in Bluetooth wireless technology makes it easy to receive background map data off the Internet using a Bluetooth-enabled cell phone. It also can be connected to other Bluetooth-enabled devices, such as laser rangefinders and barcode scanners, for convenient cable-free solutions.

Supply your mobile workforce with the durable, compact Magellan eXplorist Pro 10 that incorporates functional features such as photo, video and voice note capture and a high-yield GPS receiver with 3 to 5 meters real-time positioning accuracy (1 to 3 meter post-processed accuracy). The handheld eXplorist Pro 10 is the affordable way to maximize mobile GIS productivity.

[/vc_tab][vc_tab title=”Features” tab_id=”features”]

• Windows Mobile 6.5 in English, Spanish, French, Danish, Italian, German, Dutch, Brazilian Portuguese, Russian, Simplified Chinese, Japanese, Korean
• Samsung 533MHz S3C2450 processor
• Integrated Bluetooth v2.0 wireless technology
• Integrated digital camera (color, 3.2 megapixel resolution)
• 128MB RAM on-board memory
• 4GB non-volatile internal flash data storage
• MicroSD (MicroSDHC compatible) memory card slot
• WQVGA display (400 x 240 Portrait), sunlight-readable transflective color touch screen
• 16 bit Color support
• Integrated speaker and microphone
• 3D compass, Pressure Altimeter and Barometer
• Powered by two AA batteries, lasting up to 15 hours w/ LCD backlight at 40 Nits
• Integrated high-sensitivity SIRFstar III GPS receiver and Multidirectional Patch antenna
• 3 to 5 meter typical accuracy
• 1 to 3 meter post-processed accuracy
• NMEA and SiRF protocol support

[/vc_tab][vc_tab title=”Specifications” tab_id=”specifications”]

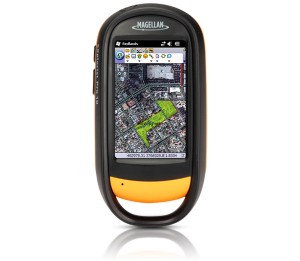

Technical data: Magellan eXplorist Pro 10 GIS Data Collector

Product Number	TP10ENSGXWW
DEVICE
Dimensions (English)	2.57″ x 5.04″ x 1.45″
Dimensions (Metric)	65.3mm x 128mm x 36.8mm
Weight (English)	6.87oz
Weight (Metric)	195g
Battery Type	2xAA
Battery Life	15 Hours
Camera	Yes
Microphone	Yes
Waterproof	IPX-7
Speaker	Yes
Stereo Audio Jack	Yes
Available User Storage	4GB
CPU	533MHz
Expandable Memory	microSD
Temperature Range (F)	14F to 140F
Temperature Range ©	-10C to 60C
Suspend Mode	Yes
SCREEN
Display Resolution, WxH	WQVGA, 240 x 400
Screen Size	3.0″
Display Type	Color, Transflective
Touch Screen	Yes
GPS & SENSORS
GPS Accuracy	Up to 3-5 meters (1-3 meter post-processed)
High-Sensitivity GPS	SiRFstarIII™
Antenna Type	Multidirectional Patch
3-Axis Electronic Compass	Yes
WAAS/EGNOS/MSAS	Yes
MAPPING & NAVIGATION
Coordinates Systems & Datums	Yes
USER GENERATED CONTENT
Accepts GPX Files	Yes
Picture Viewer	Yes
INTERFACE & COMMUNICATIONS
Communication Protocol	USB Mass Storage
USB PortYes	Yes
NMEA Output	Yes
PC Compatible	Yes
Bluetooth	Yes

[/vc_tab][vc_tab title=”Gallery” tab_id=”gallery”] [/vc_tab][vc_tab title=”Downloads” tab_id=”downloads”]

Brochure

• Magellan eXplorist 710 Handheld GPS Leaflet

[/vc_tab] [/vc_tabs]

[vc_separator width=”1/1″ el_position=”first last”]

About Magellan

Magellan is a leading portable GPS navigation consumer electronics company. Founded in 1986 and with over 200 key patents in GPS technology, Magellan is recognized as an industry innovator and leader. Magellan is the creator of the award-winning Magellan RoadMate®, and Maestro™ series portable car navigation products, as well as the Magellan Triton® and eXplorist® outdoor handheld navigation devices. Magellan is also proud to offer innovative Mobile GPS solutions including the RoadMate App for iPhone and Premium Car Kit accessory.

[vc_tabs interval=”0″ width=”1/1″ el_position=”first last”] [vc_tab title=”Description” tab_id=”description”]

Rugged and waterproof (IPX-7), the eXplorist 610 combines high sensitivity GPS reception with easy to read mapping and accurate navigation. Find your way using more than 30 navigational data fields. Create waypoints, record tracks, and route from point to point. The integrated 3.2 mega-pixel camera, microphone, and speaker enable outdoor enthusiasts to record geo-referenced images and voice notes. Relive your outdoor adventures on the device, on your computer, or share with others on various online communities like geocaching.com.

Enjoy paperless geocaching with the Magellan eXplorist 610. Download and view more than 20 unique characteristics of each cache and view, search, filter on the device. Details include name, location, description, hider, size, difficulty, terrain, hint, and recent logs created by other geocachers.

The eXplorist 610 packs the most accurate maps into the palm of your hand. The World Edition map allows for 2D or 3D viewing angles. It includes a complete road network in United States, Canada, Western Europe, and Australia and major roads throughout the rest of the world and provides cartographic orientation in almost any location. This unique, preloaded map also includes water features, urban and rural land use, and a realistic shaded relief background. The Magellan eXplorist 610 also includes Summit Series USA, a highly detailed topographic map based on 1:24,000 scale source maps. The maps includes contour lines, land use areas, trails, waterway7s and points of interest. Locate the nearest trail head. Search for the nearest bike shops, fuel stations, or potable water source. Navigate safely in 3D perspective view while knowing the boundaries between private and public lands.

The best of both worlds, the Magellan eXplorist 610 combines the user friendliness of a touch screen with the reliability of two customizable hard buttons. Program the hard buttons to your two favorite or most used functions. Powered by two AA batteries, the eXplorist 610 will last up to 16 hours under normal conditions. To help conserve power, use the suspend mode to turn off the device but maintain GPS tracking. You can also adjust power management settings to your preference.

Magellan’s award winning OneTouch™ favorites menu is now on our handheld devices. It provides instant access to bookmarks of favorite places. Set your home, base camp, and car. Easily re-assign a new location for each new adventure. 12 customizable icons to create personalized searches, save unique locations, or assign quick access to your favorite screens.

[/vc_tab][vc_tab title=”Features” tab_id=”features”]

• Core Outdoor Navigation Rugged and waterproof, the eXplorist combines high sensitivity GPS reception with aesthetic mapping and accurate navigation. Find your way using more than 30 navigational data fields. Create waypoints, record tracks, and route from point to point.
• Experience Recording Integrated 3.2 mega-pixel camera, microphone, and speaker enables outdoor enthusiasts to record geo-referenced images and voice notes. Relive your outdoor adventures on the device, on your computer, or share with others on various online communities.
• Superior Maps with 3D Perspective View The eXplorist series packs some of the most accurate maps into the palm of your hand. The World Edition map allows for 2D or 3D viewing angles and covers the globe with details roads and land use areas. Summit Series is a new breed of topographic outdoor maps covering various regions with high level of detail. City Series will add turn-by-turn routing to your handheld GPS receiver.
• 3.0″ Touch Screen and Button Controls The best of both worlds, the eXplorist combines the user friendliness of a touch screen with the reliability of two customizable hard buttons. Program the hard buttons to your two favorite or most used functions.
• 3-axis Electronic Compass & Barometric Altimeter* Always know exactly where you are going, which direction is north, and your accurate altitude about sea level with built-in sensors. Know the direction to the geocache while standing still. Measure barometric pressure over time to track changing weather conditions. Use a number of different digital compass’ to always understand your cardinal directions.
• Paperless Geocaching Download and view more than 20 unique characteristics of each cache and view, search, filter on the device. Details include name, location, description, hider, size, difficulty, terrain, hint, and recent logs created by other geocachers.
• 16 Hours of Battery Life Powered by two AA batteries, the eXplorist 610 will last up to 16 hours under normal conditions. To help conserve power, use the suspend mode to turn off the device but maintain GPS tracking. You can also adjust power management settings to your preference.
• OneTouch™ Menu Magellan’s award winning OneTouch™ favorites menu is now on our handheld devices. It provides instant access to bookmarks of favorite places. Set your home, base camp, and car. Easily re-assign a new location for each new adventure. 12 customizable icons to create personalized searches, save unique locations, or assign quick access to your favorite screens.
• World Edition Pre-loaded Map The World Edition includes a complete road network in United States, Canada, Western Europe, and Australia and major roads throughout the rest of the world that provides cartographic orientation in almost any location. This unique preloaded map also includes water features, urban and rural land use, and a realistic shaded relief background.
• Summit Series USA Summit Series USA is highly detailed topographic map based on 1:24,000 scale source maps. The map includes contour lines, land use areas, trails, waterways, and points of interest. Locate the nearest trailhead. Search nearest bike shops, fuel stations, or potable water source. Navigate safely in 3D perspective view while knowing the boundaries between private and public lands.
• Navionics® Map Compatibility. Navionics is a world of products that enhance your enjoyment on and off your boat. Simply purchase a Navionics Gold Chart, HotMaps® Premium, or FishN’ Chip Region (sold separately) and plug the SD Card into the eXplorist 510, 610 or 710.

[/vc_tab][vc_tab title=”Specifications” tab_id=”specifications”]

Technical data: Magellan eXplorist 610 Handheld GPS

Product Number	TX0610SGXUS
DEVICE
Dimensions (English)	2.57″ x 5.04″ x 1.45″
Dimensions (Metric)	65.3mm x 128mm x 36.8mm
Weight (English)	6.87oz
Weight (Metric)	195g
Battery Type	2xAA
Battery Life	16 Hours
Camera	Yes
Microphone	Yes
Waterproof	IPX-7
Speaker	Yes
Available User Storage	500 MB
CPU	400MHz
Expandable Memory	microSD
Temperature Range (F)	14F to 140F
Temperature Range ©	-10C to 60C
Suspend ModeYes	Yes
Internal Memory	4 GB
SCREEN
Display Resolution, WxH	WQVGA, 240 x 400
Screen Size	3.0″
Display Type	Color, Transflective
Touch Screen	Yes
GPS & SENSORS
GPS Accuracy	Up to 3-5 meters
High-Sensitivity GPS	SiRFstarIII™
Antenna Type	Multidirectional Patch
3-Axis Electronic Compass	Yes
WAAS/EGNOS/MSAS	Yes
MAPPING & NAVIGATION
Preloaded Maps	World Edition + Summit Series USA
Uploadable Maps	Yes
Points of Interest	Yes
Turn-by-Turn Routing	Yes
Vertical Profile	Yes
Area Calculation	Yes
Hunt & Fish Calendar	Yes
Sun & Moon Information	Yes
Coordinates Systems & Datums	Yes
User Grid	Yes
OneTouch Favorites Menu	Yes
Audible Proximity Alarms	Yes
Silent Proximity Alarms	Yes
Navionics® Map Compatible	Yes
USER GENERATED CONTENT
Accepts GPX Files	Yes
Waypoints	2000
Routes	200
Geocaches	10000
Legs Per Route	500
Paperless Geocaching	Yes
Picture Viewer	Yes
Tracks	200
Points Per Track	10000
User Data Online Sharing	Yes
INTERFACE & COMMUNICATIONS
Communication Protocol	USB Mass Storage
USB Port	Yes
NMEA Output	Yes
PC Compatible	Yes

[/vc_tab][vc_tab title=”Gallery” tab_id=”gallery”] [/vc_tab][vc_tab title=”Downloads” tab_id=”downloads”]

Brochure

• Magellan eXplorist 610 Handheld GPS Leaflet

User Manual

• Magellan eXplorist 610 Handheld GPS User Manual

[/vc_tab] [/vc_tabs]

[vc_separator width=”1/1″ el_position=”first last”]

About Magellan

Magellan is a leading portable GPS navigation consumer electronics company. Founded in 1986 and with over 200 key patents in GPS technology, Magellan is recognized as an industry innovator and leader. Magellan is the creator of the award-winning Magellan RoadMate®, and Maestro™ series portable car navigation products, as well as the Magellan Triton® and eXplorist® outdoor handheld navigation devices. Magellan is also proud to offer innovative Mobile GPS solutions including the RoadMate App for iPhone and Premium Car Kit accessory.

[vc_tabs interval=”0″ width=”1/1″ el_position=”first last”] [vc_tab title=”Description” tab_id=”description”]

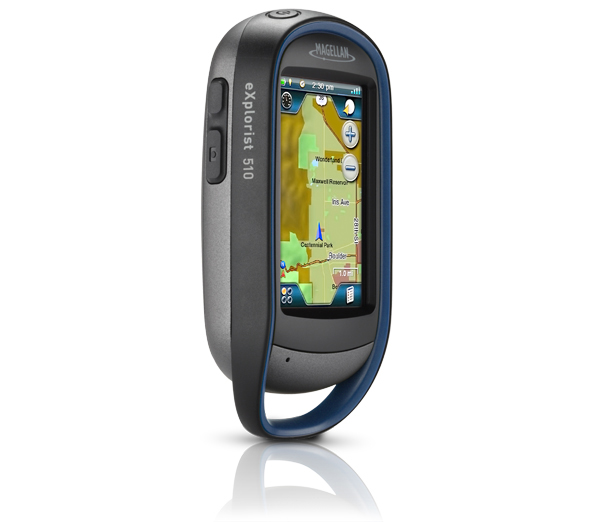

Rugged and waterproof (IPX-7), the Magellan eXplorist 510 combines high sensitivity GPS reception with easy to read mapping and accurate navigation. Find your way using more than 30 navigational data fields. Create waypoints, record tracks, and route from point to point. The integrated 3.2 mega-pixel camera, microphone, and speaker enable outdoor enthusiasts to record geo-referenced images and voice notes. Relive your outdoor adventures on the device, on your computer, or share with others on various online communities like geocaching.com.

Enjoy paperless geocaching with the eXplorist 510. Download and view more than 20 unique characteristics of each cache and view, search, filter on the device. Details include name, location, description, hider, size, difficulty, terrain, hint, and recent logs created by other geocachers.

The Magellan eXplorist 510 packs the most accurate maps into the palm of your hand. The World Edition map allows for 2D or 3D viewing angles. It includes a complete road network in United States, Canada, Western Europe, and Australia and major roads throughout the rest of the world and provides cartographic orientation in almost any location. This unique, preloaded map also includes water features, urban and rural land use, and a realistic shaded relief background.

The best of both worlds, the Magellan eXplorist 510 combines the user friendliness of a touch screen with the reliability of two customizable hard buttons. Program the hard buttons to your two favorite or most used functions. Powered by two AA batteries, the eXplorist 510 will last up to 16 hours under normal conditions. To help conserve power, use the suspend mode to turn off the device but maintain GPS tracking. You can also adjust power management settings to your preference.

Magellan’s award winning OneTouch™ favorites menu is now on our handheld devices. It provides instant access to bookmarks of favorite places. Set your home, base camp, and car. Easily re-assign a new location for each new adventure. 12 customizable icons to create personalized searches, save unique locations, or assign quick access to your favorite screens.

[/vc_tab][vc_tab title=”Features” tab_id=”features”]

• Core Outdoor Navigation Rugged and waterproof, the eXplorist combines high sensitivity GPS reception with aesthetic mapping and accurate navigation. Find your way using more than 30 navigational data fields. Create waypoints, record tracks, and route from point to point.
• Experience Recording Integrated 3.2 mega-pixel camera, microphone, and speaker enables outdoor enthusiasts to record geo-referenced images and voice notes. Relive your outdoor adventures on the device, on your computer, or share with others on various online communities.
• Superior Maps with 3D Perspective View The eXplorist series packs some of the most accurate maps into the palm of your hand. The World Edition map allows for 2D or 3D viewing angles and covers the globe with details roads and land use areas. Summit Series is a new breed of topographic outdoor maps covering various regions with high level of detail. City Series will add turn-by-turn routing to your handheld GPS receiver.
• 3.0″ Touch Screen and Button Controls The best of both worlds, the eXplorist combines the user friendliness of a touch screen with the reliability of two customizable hard buttons. Program the hard buttons to your two favorite or most used functions.
• Paperless Geocaching Download and view more than 20 unique characteristics of each cache and view, search, filter on the device. Details include name, location, description, hider, size, difficulty, terrain, hint, and recent logs created by other geocachers.
• 16 Hours of Battery Life Powered by two AA batteries, the eXplorist 510 will last up to 16 hours under normal conditions. To help conserve power, use the suspend mode to turn off the device but maintain GPS tracking. You can also adjust power management settings to your preference.
• OneTouch™ Menu Magellan’s award winning OneTouch™ favorites menu is now on our handheld devices. It provides instant access to bookmarks of favorite places. Set your home, base camp, and car. Easily re-assign a new location for each new adventure. 12 customizable icons to create personalized searches, save unique locations, or assign quick access to your favorite screens.
• World Edition Pre-loaded Map The World Edition includes a complete road network in United States, Canada, Western Europe, and Australia and major roads throughout the rest of the world that provides cartographic orientation in almost any location. This unique preloaded map also includes water features, urban and rural land use, and a realistic shaded relief background.
• Navionics® Map Compatibility. Navionics is a world of products that enhance your enjoyment on and off your boat. Simply purchase a Navionics Gold Chart, HotMaps® Premium, or FishN’ Chip Region (sold separately) and plug the SD Card into the eXplorist 510, 610 or 710.

[/vc_tab][vc_tab title=”Specifications” tab_id=”specifications”]

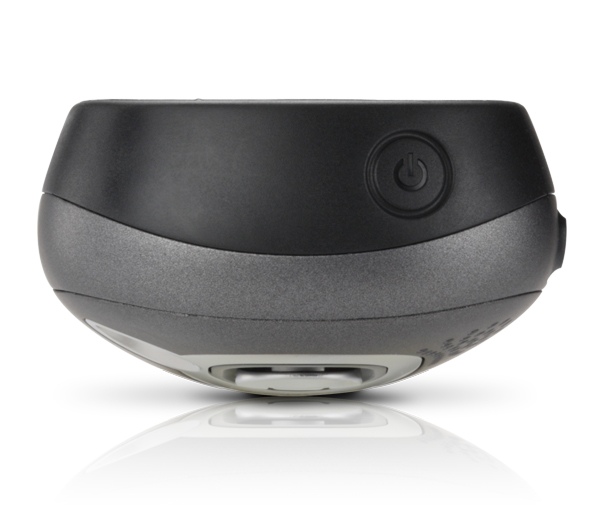

Technical data: Magellan eXplorist 510 Handheld GPS

Product Number	TX0510SGXNA
DEVICE
Dimensions (English)	2.57″ x 5.04″ x 1.45″
Dimensions (Metric)	65.3mm x 128mm x 36.8mm
Weight (English)	6.87oz
Weight (Metric)	195g
Battery Type	2xAA
Battery Life	15 Hours
Camera	Yes
MicrophoneYes	Yes
Waterproof	IPX-7
Speaker	Yes
Available User Storage	500 MB
CPU	400MHz
Expandable Memory	microSD
Temperature Range (F)	14F to 140F
Temperature Range ©	-10C to 60C
Suspend Mode	Yes
Internal Memory	2 GB
SCREEN
Display Resolution, WxH	WQVGA, 240 x 400
Screen Size	3.0″
Display Type	Color, Transflective
Touch Screen	Yes
GPS & SENSORS
GPS Accuracy	Up to 3-5 meters
High-Sensitivity GPS	SiRFstarIII™
Antenna Type	Multidirectional Patch
WAAS/EGNOS/MSAS	Yes
MAPPING & NAVIGATION
Preloaded Maps	World Edition
Uploadable Maps	Yes
Points of Interest	Yes
Turn-by-Turn Routing	Yes
Vertical Profile	Yes
Area Calculation	Yes
Hunt & Fish Calendar	Yes
Sun & Moon Information	Yes
Coordinates Systems & Datums	Yes
User Grid	Yes
OneTouch Favorites Menu	Yes
Audible Proximity Alarms	Yes
Silent Proximity Alarms	Yes
Navionics® Map Compatible	Yes
USER GENERATED CONTENT
Accepts GPX Files	Yes
Waypoints	2000
Routes	200
Geocaches	10000
Legs Per Route	500
Paperless Geocaching	Yes
Picture Viewer	Yes
Tracks	200
Points Per Track	10000
User Data Online Sharing	Yes
INTERFACE & COMMUNICATIONS
Communication Protocol	USB Mass Storage
USB Port	Yes
NMEA Output	Yes
PC Compatible	Yes

[/vc_tab][vc_tab title=”Gallery” tab_id=”gallery”] [/vc_tab][vc_tab title=”Downloads” tab_id=”downloads”]

Brochure

• Magellan eXplorist 510 Handheld GPS Leaflet

User Manual

• Magellan eXplorist 510 Handheld GPS User Manual

[/vc_tab] [/vc_tabs]

[vc_separator width=”1/1″ el_position=”first last”]

About Magellan

Magellan is a leading portable GPS navigation consumer electronics company. Founded in 1986 and with over 200 key patents in GPS technology, Magellan is recognized as an industry innovator and leader. Magellan is the creator of the award-winning Magellan RoadMate®, and Maestro™ series portable car navigation products, as well as the Magellan Triton® and eXplorist® outdoor handheld navigation devices. Magellan is also proud to offer innovative Mobile GPS solutions including the RoadMate App for iPhone and Premium Car Kit accessory.
