Key Features of Bosch GLL 3-80P Professional Laser Level Device

The Bosch Professional Green Laser Level GLL 3-80CG enables simultaneous horizontal and vertical levelling with just one tool thanks to 3 x 360° lines—1 horizontal and 2 vertical.

The lines project around an entire room and from floor to ceiling, making it easier than ever both to collaborate with colleagues and avoid frequent repositioning.

The laser lines on the Bosch GLL 3-80 CG are green, which deliver up to 4x better visibility than red laser lines.

The device is highly accurate, delivering precise results within ± 0.2 mm/m */**, with a working range of up to 30m (or 120m with the additionally available LR 7 receiver). To reduce the need for manual adjustments, the device can self-level on non-level surfaces up to +/- 4 degreeor be controlled using a Bluetooth-connected smartphone app. When diagonal lines are needed, the device can also be positioned in lock mode.

The Cal Guard Function warns users of a calibration error by illuminating the red LED light on the device. Users can see detailed information about the error in the smartphone app.

Green laser diodes provide excellent visibility, even at long distances. The laser level is robust, thanks in part to an IP 54 dust and splash protection. It can be used for a variety of applications including installing windows, mounting shelves, laying drainage pipes and tiles, or building framework for drywall.

Multi-line laser
The 3 simultaneously available laser lines ( 1 horizontal and 2 vertical 360° ) enable parallel work in a team with only one tool. Thanks to the very clearly visible laser lines, there is no need to repeatedly position the tool during leveling work in larger rooms. Moreover, the all-round availability of the three laser lines enables simultaneous work in a team with only one tool.



Bosch GLL 3-80P Scope of delivery:

• Bosch GLL 3-80 CG
• Carrying Pouch
• Target Plate
• Universal Holder BM 1 Professional
• Clamp
• 4 x AA Alkaline Batteries
• User Manual

Video of Bosch GLL 3-80 CG P Professional Laser Level

Key Features of Bosch GLL 3-80P Professional Laser Level Device

The working range of the tool has a diameter of about 80 meters with the Bosch LR 2 Professional Receiver. The receiver indicates both with light emitting diodes and also acoustically when the laser beam makes contact with it. There are two accuracy levels: leveling accurate to within three millimeters is done in seconds. If higher precision is required, the receiver does not respond until the result is accurate to within one millimeter.

The robust housing makes the multi line laser insensitive to dust and splash water (protection class IP54). Thanks to its pendulum lock, the Bosch GLL 3-80 P Professional is also perfectly protected against impact when it is transported to the construction site. It remains fully functional when dropped from a height of one meter.

The tool’s “Out-of-Level” function helps to achieve error-free working. If there is an unintentional incline of more than 4°, the Bosch GLL 3-80 P Professional warns the user by means of an acoustic signal and a quickly flashing laser line. The user can fix the pendulum lock if inclined lines are required. Then he can use the tool to project laser lines at any desired inclination.

Multi-line laser
The 3 simultaneously available laser lines ( 1 horizontal and 2 vertical 360° ) enable parallel work in a team with only one tool. Thanks to the very clearly visible laser lines, there is no need to repeatedly position the tool during leveling work in larger rooms. Moreover, the all-round availability of the three laser lines enables simultaneous work in a team with only one tool.

Self-leveling
The Bosch GLL 3-80 P Professional levels itself in less than four seconds. It is very accurate with a leveling accuracy of 0.2 millimeters per meter. There is a 5/8″ and a 1/4″ thread for working with a tripod. In addition to this, the magnetic base plate makes it easy to fix the tool on iron girders or rails. 4° in 4 sec, very precise (± 0.2 mm/m) and range of up to 80 m with receiver.

Highly compact
Compact, easy-to-handle and extremely robust (IP 54). Saves you having to purchase several different tools, the individually switchable lines for the specific applications collectively cover the functions of a cross line laser and a point laser with only one tool. This tool even performs the indoor applications of a rotation laser.

Bosch GLL 3-80P Scope of delivery:

• Bosch GLL 3-80P
• Carrying Pouch
• 4 x AA Alkaline Batteries
• User Manual

Video of Bosch GLL 3-80 P Professional Laser Level

Key Features of Bosch GTL 3 Professional Tile Laser Level Device

Clearly visible lasers
The lasers on the Bosch GTL3 new tile laser level are clearly visible thanks to the new strong focusing optical components designed by Bosch. The range when used with the target plate includined is upto 20 meters. The laser line accuracy of 0.2 millimeters per meter makes the Bosch GTL 3 the best tile laser in its class.

Designed for the job
More convenient working is ensured by the lightweight and compact design, and the single-button operation. Two magnetic feet make it easier to fit the tool on a wall or floor using the metal plate that is supplied as standard. The tool is robust and also dust and splash-protected to IP 54. It remains fully functional after being dropped from a height of one meter.



Bosch GTL 3 Scope of delivery:

• Bosch GTL 3
• Carrying Pouch
• Laser Target Plate
• Alignment Disc
• 4 x AA Alkaline Batteries
• User Manual

Video of Bosch GTL 3 Professional Tile Laser Level

Key Features of Bosch GCL 25 Professional Combi Laser Level Device

The Bosch GCL 25 five-point self-leveling alignment laser with cross-line delivers two-in-one versatility, with combination horizontal level, vertical level, square, plumb transfer and layout applications. Electricians, plumbers, installers, framers or general contractors no longer have to pack two lasers to jobsites or off-site projects. The five points plus cross-line functionality precisely align, square and transfer points, leaving hands free to get on with layout.

Flexible functions for a range of tasks
This laser is a multipurpose workhorse. It is ideal for the operator who works a variety of jobs involving squaring, plumbing and leveling where a multifunction tool is required. Its various applications include transferring points to the ceiling or lighting installations using plumb points, and squaring a room for partition or walls. The manual mode locks lines for use at any angle.

Accuracy and utility
The GCL 25’s Smart Pendulum Leveling System self-levels and indicates out-of-level condition. The easy-to-use one-button operation is ideal for users who need an adaptable, effective and convenient tool for daily use. It has a plumb range of 15 feet, a horizontal point range of 100 feet and a lines range of 30 feet. The laser’s accuracy is within 1/8 inch at 30 feet. The line/point selection keypad allows for switching between point and line laser function.

Push-button control
The GCL 25 saves you time, money and space with the simple switch of a button. Its three different levels are: the laser is on and in self-leveling mode, the laser is on but self-leveling is off, or the laser is off. The LED battery status is located on top of the tool for added user convenience, and the laser is ergonomically designed for a comfortable and solid grip.

Bosch GCL 25 Scope of delivery:

• Bosch GCL 25
• Carrying Pouch
• 4 x AA Alkaline Batteries
• User Manual

Video of Bosch GCL 255 Professional Combi Laser Level

Key Features of Bosch GPL 5 Professional Laser Level Device

The Bosch GPL 5 Professional five-point self-leveling alignment laser features has an innovative design combined with cutting-edge technology. It features quad mirror technology, integrated reference lines, a smart pendulum leveling system, and easy field recalibration.  This tool is ideal for both professional and DIYers-it is packed with top technology in a compact package.

Innovative Technology
The Bosch GPL5 self-leveling alignment laser features top-of-the-line technology. First, it has quad-mirror technology that provides five-point lasers for level, plumb up, plumb down, and square. This laser can be precisely positioned during use and transfer points for easy and accurate transfer and alignment of points in level, plumb, and square grade applications. It also has a smart pendulum leveling system that allows the laser to self-level. In addition, this system allows the laser to sense and indicate out-of-level condition and locks when the laser is switched off.

User Features
The Bosch GPL5 has integrated reference lines, allowing for exact positioning of the tool and transfer of point. It also accurately transfers and aligns level, plumb, and 90-degree square points. This laser has easy field re-calibration as well, that maintains the precision of the laser while preventing down time. This laser has a conveniently located battery compartment on the top of the tool, so that it is always easy to access. This laser measures 4 1/8-inches in height, making it pocket-sized or able to fit in a pouch on a tool belt. The GPL5 comes with a multipurpose attachment that will position and mount with magnets, strap, or threaded mounts (1/4-inch at 20 and 5/8-inch at 11).

Laser Specifics
The GLP 5 laser has an accuracy within 1/4-inch at 100-feet and a range up to 100-feet. It’s leveling type is self, with up to 5-degrees. The laser diode is a Class 2 635-nanometer that is less than or equal to 1 milliwatt. The mount threading is 5/8-inch at 11 and 1/4-inch at 20. The operating temperature ranges from 24-degrees Fahrenheit (-10-degrees Celsius) to 122-degrees Fahrenheit (50-degrees Celsius). The overall dimensions of the laser are 4.1-inches by 3.1-inches by 1.6-inches and it weighs 1 pound.

Bosch GPL 5 Scope of delivery:

• Bosch GPL 5
• Carrying Pouch
• Multi-functional mount
• 3 x AA Alkaline Batteries
• User Manual

Video of Bosch GPL 5 Professional Point Laser Level

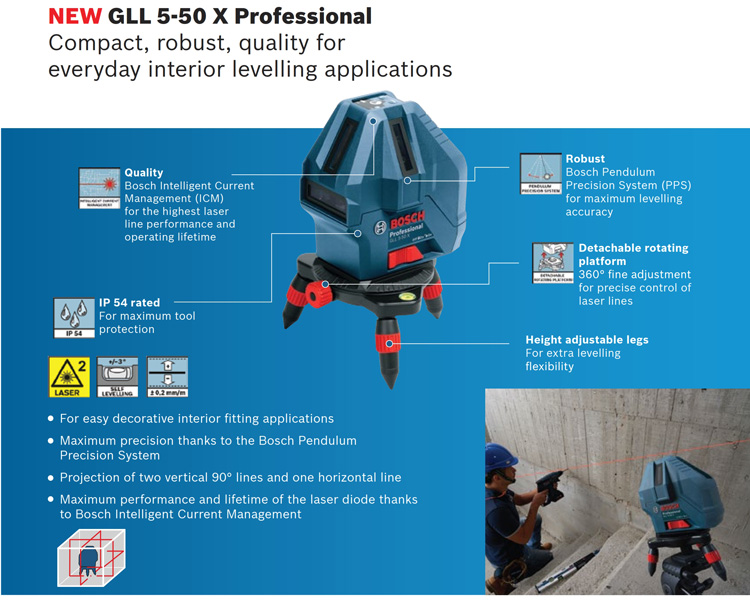

Key Features of Bosch GLL 5-50X Professional Laser Level Device

The Bosch GLL 5-50X Professional self-leveling five-line laser level can help with alignment, leveling and squaring needs. Bright laser lines can be used in self-leveling mode or locked in manual mode for sloped applications. The unit features an audio alarm to alert that the tool is out of range in self-leveling mode so you can build with confidence.

• One horizontal line, four vertical lines at 90 to each other – for level, align and squaring applications
• Smart pendulum system – self-levels and indicates out-of-level condition; switch slider to lock for transport
• Five line selection modes – projects five lines independently or together for a wide array of level/align and squaring application
• Line generator laser level is great for a variety of projects

Bosch GLL 5-50X Scope of delivery:

• Bosch GLL 5-50X
• Carrying Pouch
• Tripod Adapter
• 4 x AA Alkaline Batteries
• User Manual

Video of Bosch GLL 5-50X Professional Laser Level

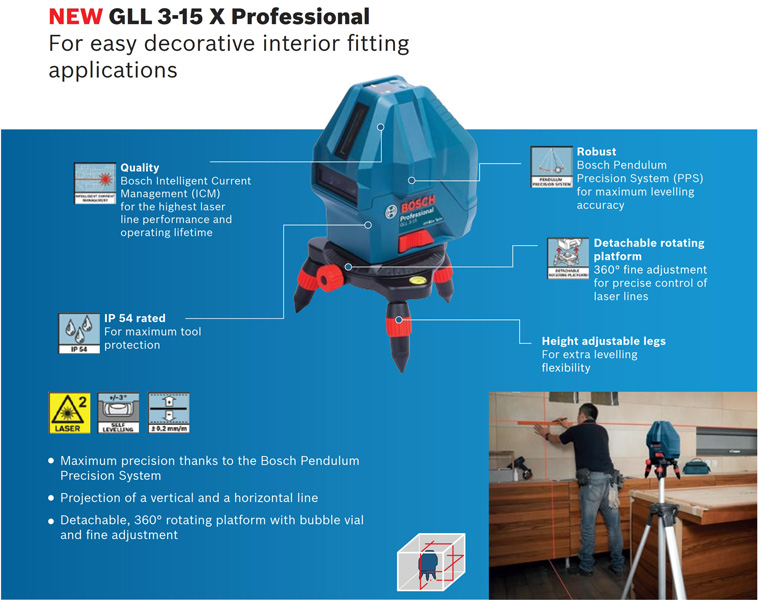

Key Features of Bosch GLL 3-15X Professional Laser Level Device

The Bosch GLL 3-15X Professional self-leveling three-line laser level can help with alignment, leveling and squaring needs. Bright laser lines can be used in self-leveling mode or locked in manual mode for sloped applications. The unit features an audio alarm to alert that the tool is out of range in self-leveling mode so you can build with confidence.

• One horizontal line, two vertical lines at 90 to each other – for level, align and squaring applications
• Smart pendulum system – self-levels and indicates out-of-level condition; switch slider to lock for transport
• Three line selection modes – projects three lines independently or together for a wide array of level/align and squaring application
• Line generator laser level is great for a variety of projects

Bosch GLL 3-15X Scope of delivery:

• Bosch GLL 3-15X
• Carrying Pouch
• Tripod Adapter
• 4 x AA Alkaline Batteries
• User Manual

Video of Bosch GLL 3-15X Professional Laser Level

Key Features of Bosch GLL 30G Professional Laser Level Device

The Bosch GLL 30 G Self-Leveling cross-line laser projects two lines, making a cross-line projection, for a wide array of level and align uses. This versatility makes it more valuable than a typical line laser. With top-notch accuracy and one-switch operation, the user’s leveling and alignment tasks are done quickly and correctly. The laser lines are visible up to 30 feet. The smart pendulum system self-levels and indicates out-of-level condition to help ensure an accurate layout, and it locks the lines at any angle. The pendulum system locks when switched off, to assure secure tool transport.

Bosch GLL 30G Scope of delivery:

• Bosch GLL 30G
• Carrying Pouch
• 2 x AA Alkaline Batteries
• User Manual

Video of Bosch GLL 30G Professional Laser Level

Key Features of Bosch GLL 3X Professional Laser Level Device

The Bosch GLL 3X Professional is positioned as an advanced entry-level 3-line crossline laser level. It is a simple and easy product which has adequate technical specification and a more competitive pricing. It’s the ideal tool for users doing the basic levelling work in interior area at relatively small job sites!

The Bosch GLL 3X supports easy handling and accuracy in measurement whilst working. It weighs only 0.5 kg and comes with a compact build which makes it extremely portable. With this premium device you have the ability to work for long hours effortlessly on your home tasks equipped with a Class II 635 Nm laser. Thanks to its working range of 15 m, a levelling accuracy of ±0.5 mm/m and a self-levelling range of ±4˚, Bosch GLL 3X is the ideal hobbyist’s tool.

Functionality
Bosch GLL 3X works on an easy to use interface which is literally a one person task. All you need to do is tap on the on/off switch as its operating mode selection and you are good to go.To retrieve results for, front cross line and one side vertical line in 90˚ results tap once, for horizontal line only tap twice, for vertical line only tap thrice and with the fourth press the tool is off.

Battery life
Power-driven by four 1.5V LR6 (AA) batteries it has an optimised runtime which is in every hobbyist priority list. You can work with it for long hours without the stress of running out of battery and complete your jobs on time without any obstruction.

Bosch GLL 3X Scope of delivery:

• Bosch GLL 3X
• Carrying Pouch
• 4 x AA Alkaline Batteries
• User Manual

Video of Bosch GLL 3X Professional Laser Level

Key Features of Leica Lino L2P5G – A multi-functional green cross line and point laser.

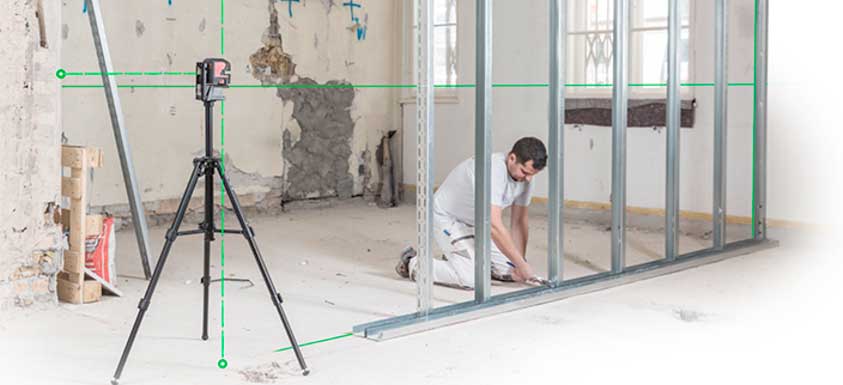

The Leica Lino L2P5G’s green laser beams and points are up to four times more visible to the human eye compared to red ones, which makes it the ideal tool for bright environments and large rooms.

Leica Lino L2P5G Laser Level Technical Specifications

Leica Lino L2PG Scope of delivery:

• Leica Lino L2P5G
• Twist 360 Adapter
• UAL 130 Wall Mount Adapter
• Case

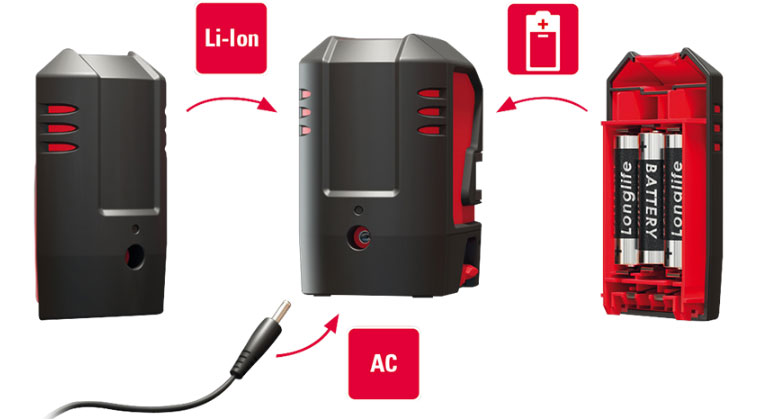

• Li-Ion battery
• Charger
• Alkaline battery tray
• Target Plate

Video of Leica Lino L2P5G Crossline Laser Level
