[vc_tabs interval=”0″ width=”1/1″ el_position=”first last”][vc_tab title=”Description” tab_id=”description”]

Be honest. Do you check floor surfaces completely and accurately every time? This was almost impossible anyway with the previous point-by-point methods. Or if at all possible, it would require a lot of time and personnel. This is now visibly easier to do because the new GSL 2 Professional enables you to check floors completely in no time. It is ideal for everyone who works with floor surfaces – for composite floor layers, tilers, parquet layers, drywallers and surveyors.

The principle is ingeniously simple – and simply ingenious. The floor surface laser projects two lines onto the floor. If the surface is flat, the lines will be exactly on top of each other. The user will see them as only one line. Where the lines are apart, the floor is not flat.

Fast and Easy

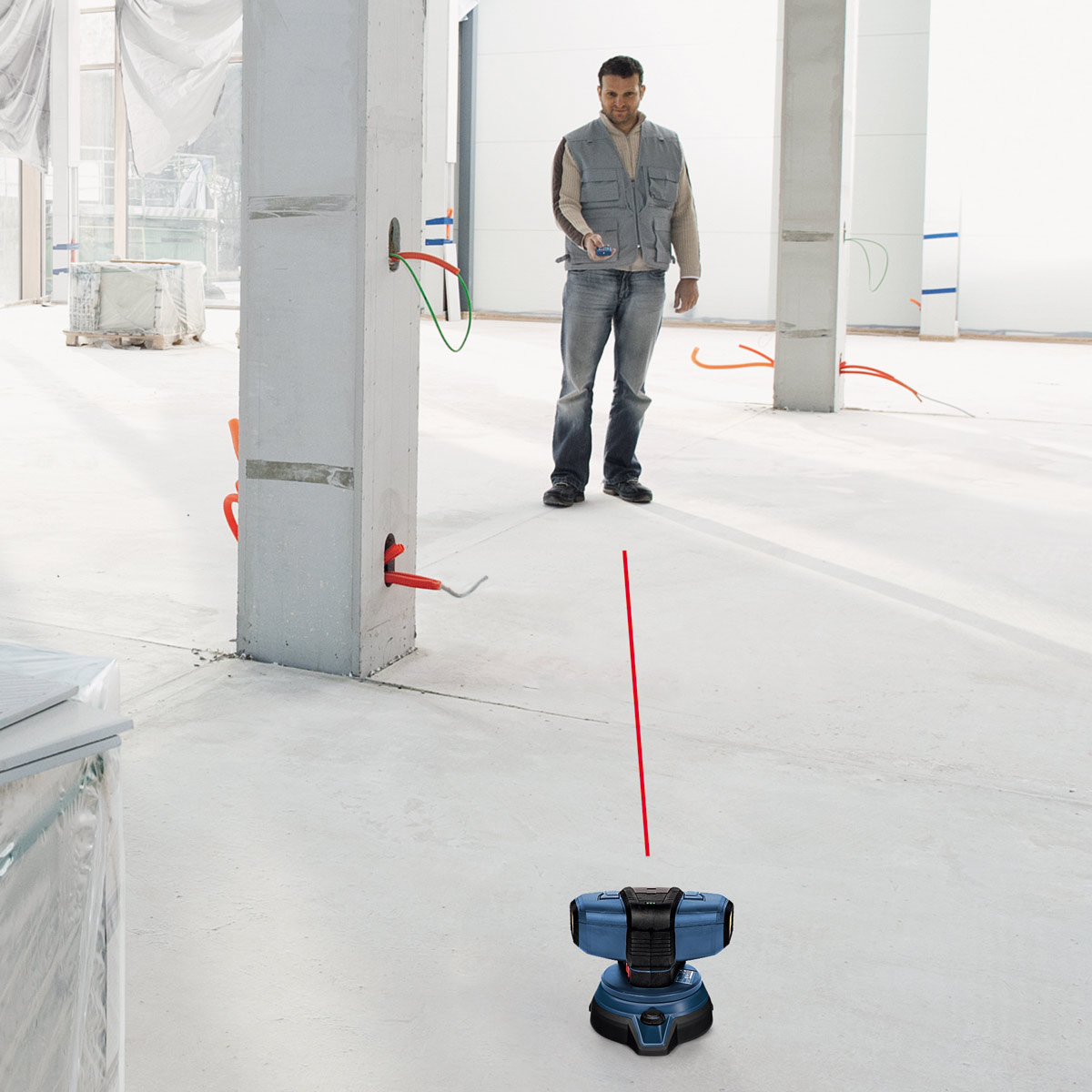

No need to bend down, re-measure, or get someone to assist you: even large surfaces can be comfortably checked by only one person with a remote control!

Accurate

The GSL 2 enables to see the high and low spots at a glance with accuracy and reliability

Complete coverage

Unlike conventional spot checking methods the GSL 2 checks floor surface in a radius of up to 60 ft in just a few minutes. It saves time and increases the accuracy

How to Operate

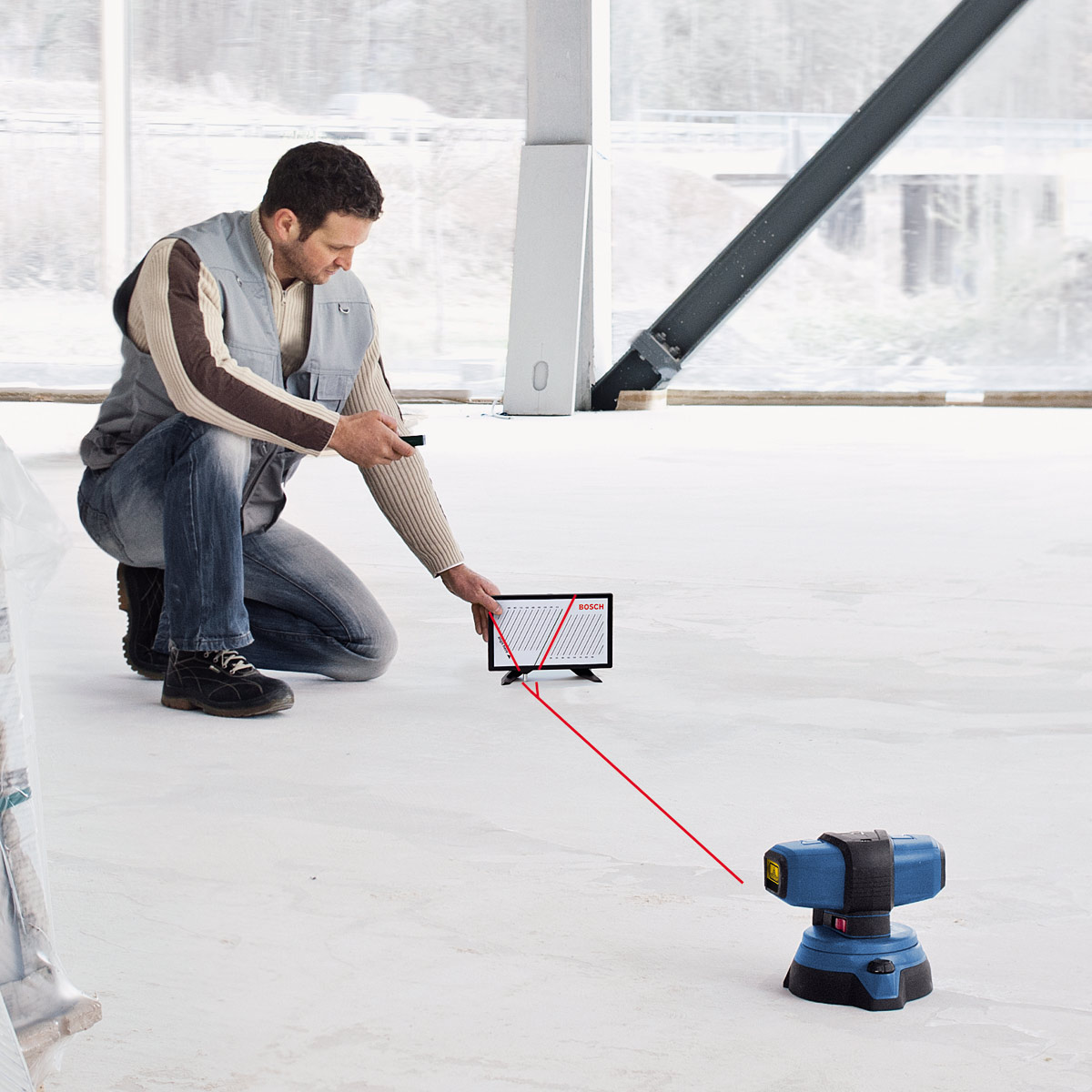

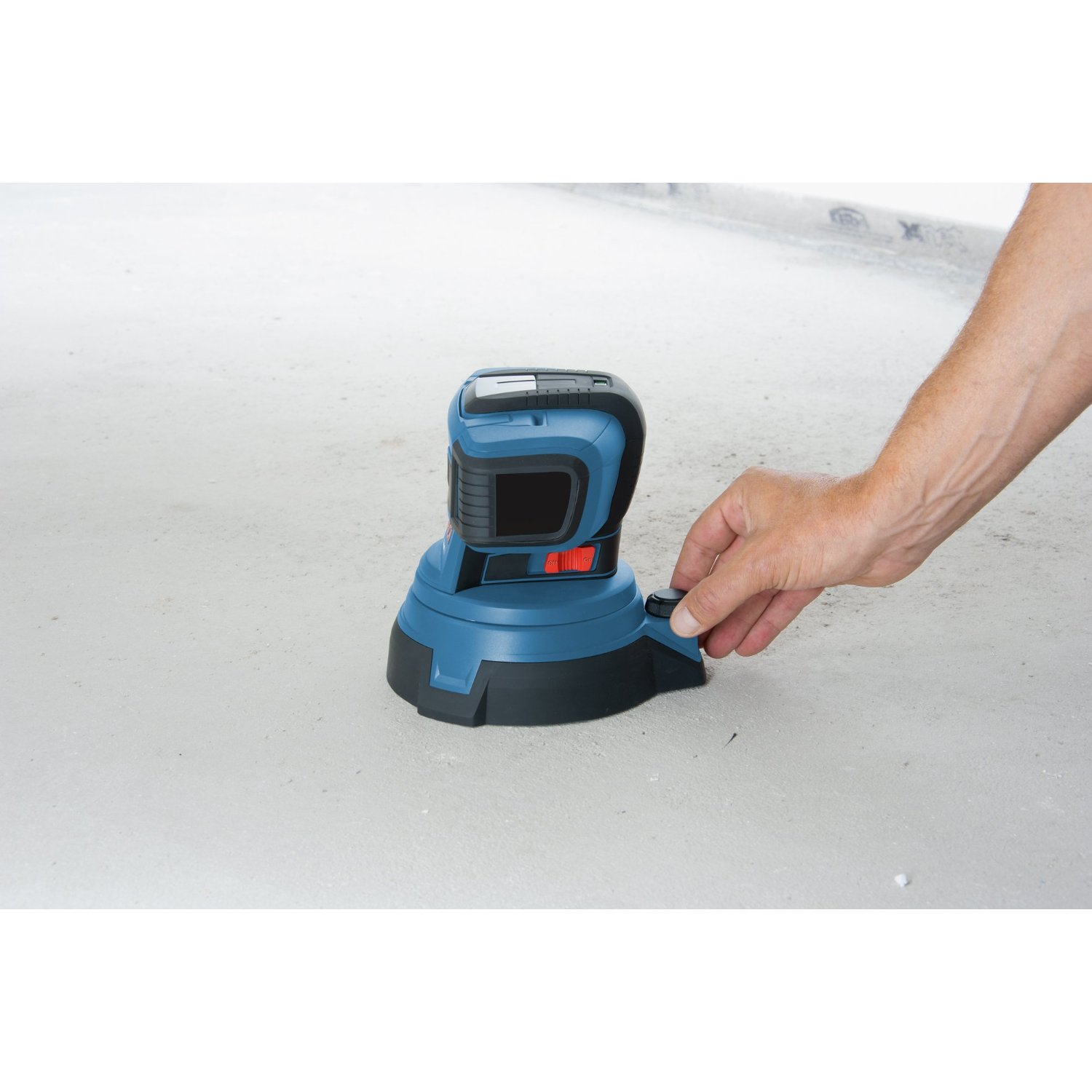

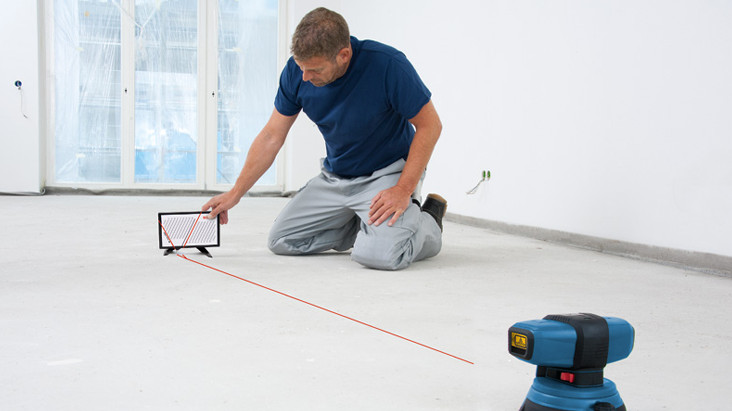

This revolutionary new laser by Bosch introduces not only a new tool to the world, but also a tool that is simple and straight-forward for every user. To use the GSL 2 laser, simply place it at your desired benchmark on the floor that you would like the rest of the floor to match. Then, turn on the laser via the sliding switch located on the side of the tool. After that, adjust the height of the laser until the two lines come together as one on the floor. The height adjustment range is 1-3/16-inches. Then, initiate the scan of the floor surface with your RC 2 remote control (make sure to stand facing the laser when operating with the RC 2 remote). Observe the lines on the floor and watch as the lines separate along the floor surface or at points. At those separated areas, bumps, or recesses, read the height of deviation with a target plane and mark for re-work.

User Features

The Bosch GSL 2 surface laser incorporates several special features to increase both the performance and user ease of the tool. On the exterior of the tool are the carrying handle, on/off switch, and height adjustor. In addition, there is the LED battery indicator light conveniently located on top of the laser so you never have to move the tool to see the status of your battery light. On the interior there is a signal receiving area, motorized rotary base, and laser exit. This laser is also self-leveling to warrant accurate delivery of results. The self-leveling range is plus-or-minus 4-degrees.

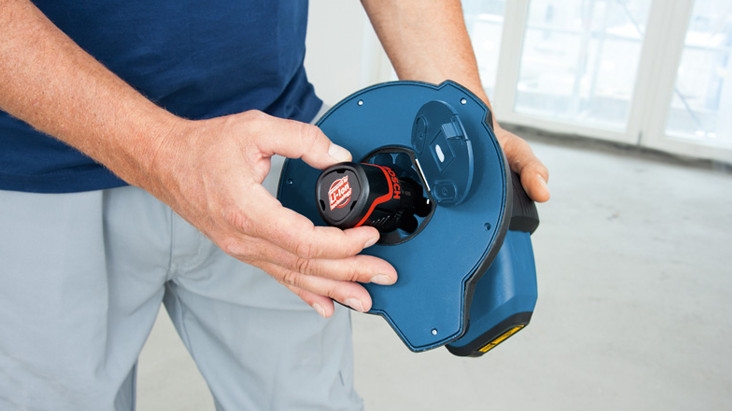

Battery Compatibility

This GSL 2 surface laser has been ingress protection 54 (IP 54) jobsite tested. It can be used with the four AA 1.5-volt alkaline batteries that are included. In addition, it can be used with a Bosch 10.8-volt lithium-ion battery pack. The typical operating time is 15 hours, and it can be used in temperatures ranging from 14-degrees to 122-degrees Fahrenheit (negative 10-degrees to 50-degrees Celsius).

Laser Features

This Bosch laser class is 3R with a self-leveling time and range of around 5 seconds, plus-or-minus 4-degrees. When the laser becomes out of level, the warning pattern is the line flashing on for 1/2-second and then off for 1/2-second to easily alert the user. The measured accuracy is approximately within 1/8-inch at a distance of 30-feet. The regular line visibility is 30-feet and 65-feet with a target plane. The working range is up to 65-feet when being operated with the remote control. In addition, the receiving area size horizontal is 120-degrees at 16-feet and 90-degrees at 33-feet. The vertical opening is always 90-degrees. The rotation speed can vary at tje slow speed of 0.3 RPM to the quick speed of 1 RPM.

RC 2 Remote Control

The GSL 2 surface laser comes with the RC 2 remote control. This remote control feature allows the user to not be restricted to the spot of the tool with a working range up to 65-feet. It can be used with 3 AAA 1.5-volt alkaline batteries and operate in a temperature of 14-degrees to 122-degrees Fahrenheit (negative 10-degrees to 50-degrees Celsius). It has an ingress protection of 5X that is dust protected. The remote control has a rotation-per-minute speed ranging from 1- to 3-minutes.

Bosch GSL 2 Professional Surface Laser Features:

• Speed – check large areas quickly and efficiently
• Precision – surface laser allows user to measure irregularities height / depth to millimetre accuracy
• Complete coverage – checks surfaces completely oppose to conventional spot checking methods
• Visibility – laser lines clearly visible on surface up to 10 m and 20 m with target plate
• Robust – comes with IP54 dust and splash protection
• Innovation – new innovative method of checking surface evenness aimed at saving the user time and money
• Carry handle – allows for easy transportation
• Height adjustment – manually adjust height of unit
• Manual rotary base – rotate base to face required direction
• Uses standard Bosch 10.8v li-ion batteries (not supplied) or 4 x AA batteries
• Battery status LED shows battery life

[/vc_tab][vc_tab title=”Specifications” tab_id=”specifications”]

Technical data: Bosch GSL 2 Professional Surface Laser

Accuracy	Up to ±1/8-in @ 30-ft (Horizontal & Vertical)
Battery	12V Max Lithium-ion Battery
Battery	4 AA 1.5V Batteries
Dimensions	8.3″ x 7.7″ x 8.1″
Laser Diode	630 – 670 nm Class 3R
Leveling Type	Self-Leveling, Up to 4°
Operating Temperature	14°F / -10°C ~122°F / 50°C
Range	Up to 30ft without Target Plate, Up to 60ft with Target Plate
Weight (lbs.)	3.3 lbs

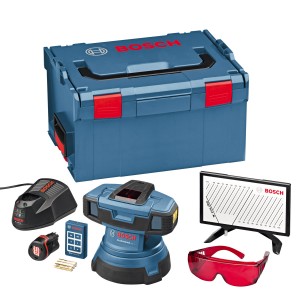

[/vc_tab][vc_tab title=”Gallery” tab_id=”gallery”] [/vc_tab][vc_tab title=”In The Box” tab_id=”inthebox”]

• GSL 2 Professional
• 10.8 V Li-Ion battery
• Charger
• RC 2 remote control
• 3 x AAA 1.5 V (for the remote control)

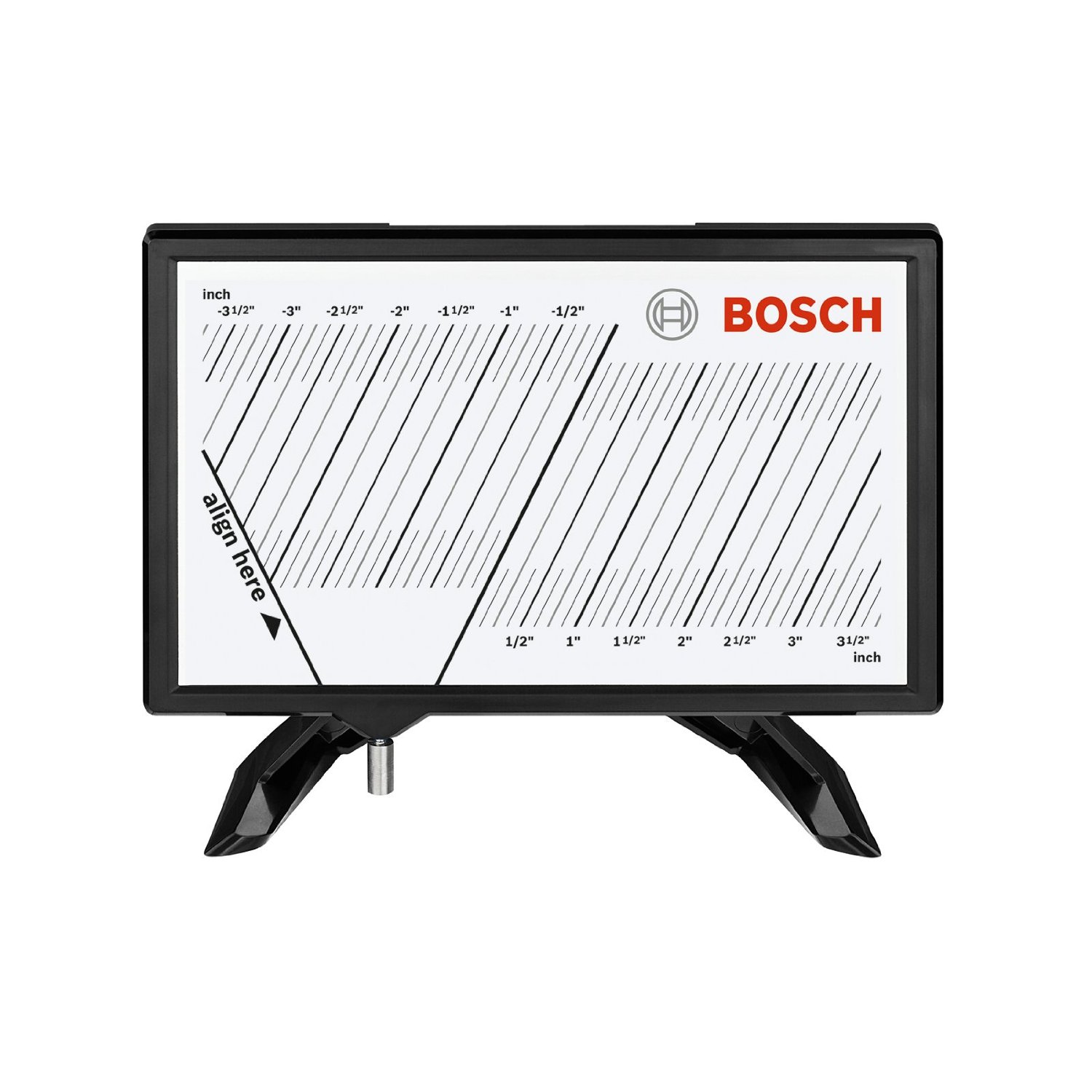

• Target
• Laser viewing glasses
• L-BOXX carrying case

[/vc_tab][vc_tab title=”Downloads” tab_id=”downloads”]

Brochure

• Bosch GSL 2 Surface Laser Leaflet

User Manual

• Bosch GSL 2 Surface Laser User Manual

[/vc_tab] [/vc_tabs]

[vc_tabs interval=”0″ width=”1/1″ el_position=”first last”] [vc_tab title=”Description” tab_id=”description”]

Be honest. Do you check floor surfaces completely and accurately every time? This was almost impossible anyway with the previous point-by-point methods. Or if at all possible, it would require a lot of time and personnel. This is now visibly easier to do because the new GSL 2 Professional enables you to check floors completely in no time. It is ideal for everyone who works with floor surfaces – for composite floor layers, tilers, parquet layers, drywallers and surveyors.

The principle is ingeniously simple – and simply ingenious. The floor surface laser projects two lines onto the floor. If the surface is flat, the lines will be exactly on top of each other. The user will see them as only one line. Where the lines are apart, the floor is not flat.

Fast and Easy

No need to bend down, re-measure, or get someone to assist you: even large surfaces can be comfortably checked by only one person with a remote control!

Accurate

The GSL 2 enables to see the high and low spots at a glance with accuracy and reliability

Complete coverage

Unlike conventional spot checking methods the GSL 2 checks floor surface in a radius of up to 60 ft in just a few minutes. It saves time and increases the accuracy

Bosch GSL 2 Professional Surface Laser Features:

• Speed – check large areas quickly and efficiently
• Precision – surface laser allows user to measure irregularities height / depth to millimetre accuracy
• Complete coverage – checks surfaces completely oppose to conventional spot checking methods
• Visibility – laser lines clearly visible on surface up to 10 m and 20 m with target plate
• Robust – comes with IP54 dust and splash protection
• Innovation – new innovative method of checking surface evenness aimed at saving the user time and money
• Carry handle – allows for easy transportation
• Height adjustment – manually adjust height of unit
• Manual rotary base – rotate base to face required direction
• Uses standard Bosch 10.8v li-ion batteries (not supplied) or 4 x AA batteries
• Battery status LED shows battery life

[/vc_tab][vc_tab title=”Specifications” tab_id=”specifications”]

Technical data: Bosch GSL 2 Professional Surface Laser

Accuracy	Up to ±1/8-in @ 30-ft (Horizontal & Vertical)
Battery	12V Max Lithium-ion Battery
Battery	4 AA 1.5V Batteries
Dimensions	8.3″ x 7.7″ x 8.1″
Laser Diode	630 – 670 nm Class 3R
Leveling Type	Self-Leveling, Up to 4°
Operating Temperature	14°F / -10°C ~122°F / 50°C
Range	Up to 30ft without Target Plate, Up to 60ft with Target Plate
Weight (lbs.)	3.3 lbs

[/vc_tab][vc_tab title=”Gallery” tab_id=”gallery”] [/vc_tab][vc_tab title=”In The Box” tab_id=”inthebox”]

• GSL 2 Professional (without motor)
• 4 x AA 1.5 V batteries
• Target
• Laser viewing glasses
• L-BOXX carrying case

[/vc_tab][vc_tab title=”Downloads” tab_id=”downloads”]

Brochure

• Bosch GSL 2 Surface Laser Leaflet

User Manual

• Bosch GSL 2 Surface Laser User Manual

[/vc_tab] [/vc_tabs]
