Key Features of Bosch D-tect 150 CNT Professional Multi Material Scanner
Bosch D-tect 150 Wall/Floor Scanner with Radar

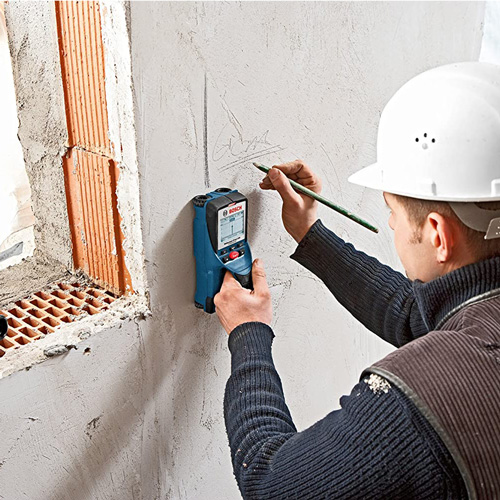

The Bosch D-tect 150 Wall/Floor Scanner with Radar features an Ultra-Wide Band (UWB) radar technology that delivers a higher range of detection, and this scanner has multimode detection capability. It is an ideal tool for construction, electricians, carpenters, plumbers, and others who need reliable detection. The tool has seven detection modes, for concrete, wet concrete and more. Before users start a job, they can detect wood studs, metal objects or live wiring in floors and walls. It has a deep detection mode for pipe in concrete of up to 6 inches deep.
Detection deep and wide
The scanner offers the Bosch Ultra-Wide Band (UWB) radar technology, which offers a wide range of detection performance up to 6 inches. The actual object depth is displayed, making it easy to determine the amount of material cover over the object. And this scanner can detect plastic pipes. It self-calibrates once the user starts detection and continues to self-calibrate during detection.
Seven detection modes
The Bosch D-tect 150 Wall/Floor Scanner with Radar features seven detection modes, including concrete, wet concrete, deep concrete, in-floor heating, drywall, metal and signal view. The user can find wood studs; plastic pipes; metal objects, such as rebar, metal studs or steel/copper pipe; or live wiring in floors and walls. The four-wheel design allows it to easily maneuver across surfaces.
Large illuminated display
The Bosch D-tect 150 has an easy-to-read backlit graphical display that indicates the depth and location of the object, plus mode, detection strength and more. The innovative signal view provides detection when two objects are close together – showing two peaks for the two separate objects. It is also used for big empty plastic pipes, to estimate the size of the pipes.
Deep detection of metals
The Bosch D-tech 150 can detect ferrous and nonferrous metals up to 6 In. in concrete. It has a maximum detection depth of up to 3-1/8 inches for electrical copper wiring and up to 1-1/2 inches for wood studs. The graphical display shows the center, edge and depth of an object. It has an audible detection signal that switches on and off. It also has an ergonomic soft-grip that’s comfortable to use.
Specifications of Bosch D-tect 150 CNT Detector
|Detection depth, steel, max. ||150mm |
|Max. detection depth ||150mm |
|Detectable materials ||Plastic pipes, ferrous metals, non-ferrous metals, wooden substructures, live cables |
|Accuracy ||±5mm |
|Automatic deactivation, approx. ||5 minutes |
|Power supply ||4 x 1.5 V LR6 (AA) |
|Weight, approx. ||700g |
|Detection depths, max. (material) ||Plastic pipes (water-filled), 60, Copper wires (live), Ferrous metals, 120, Non-ferrous metals (copper) |
|Warranty ||One Year Warranty |

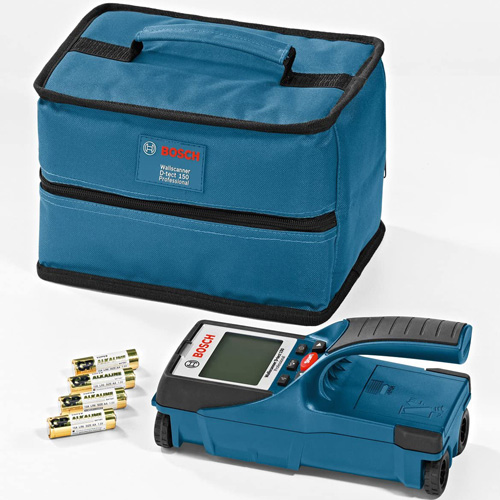

Bosch D-tect 150 CNT Scope of delivery:
- Bosch D-tect 150 CNT
- Carrying Pouch
- 4 x 1.5 V LR6 (AA) batteries
- User Manual
Video of Bosch D-tect 150 CNT Professional Wall Scanner
