Leica Disto D510 with FTA 360 Adapter & TRI 70 Tripod Pro Pack

You are here: Home » Online Store » Laser Distance Meters » Leica Disto D510 with FTA 360 Adapter & TRI 70 Tripod Pro Pack

Leica Disto D510 with FTA 360 Adapter & TRI 70 Tripod Pro Pack

 70,000  59,990

  Free Shipping. Cash on Delivery Available.*
Delivery within 2-3 business days.

Leica DISTO™ D510 case

The Leica DISTO D510 combo case – the professional package for convenient aiming and precise measurement. It consists of the Leica DISTO™ D510, the Leica FTA360 adapter and the Leica tripod TRI70. The instrument and accessories come in an attractive, robust case.

  • Measuring Range: 0.05m – 200m both indoors and outdoors
  • Measuring Accuracy ± 1mm (ISO 16331-1 certified)
  • Digital Pointfinder / Viewfinder with 4x zoom
  • IP65 – 100% water jet protection and dust-tight
  • Power Range Technology
  • Measuring Units m, in, ft & 50 Points Memory

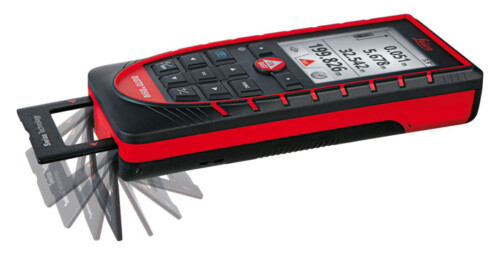

  • Automatic multi-functional end piece for measuring from corners
  • Fine adjustment of the laser dot at the target point by using the Leica FTA 360 adapter
  • Precise aiming and measuring on small objects and large distances
  • Complete package in a robust and functional carrying case
  • Each product and accessory is visible in the case, so nothing will be lost or forgotten

Brand:
SKU: 823199 Category: Tag:

Product Description

Leica DISTO™ D510 case

The new Leica DISTO D510 case – the professional package for convenient aiming and precise measurement. It consists of the Leica DISTO™ D510, the Leica FTA360 adapter and the Leica tripod TRI70.

Precise measuring over long distances requires a stable set-up of the laser distance meter. It is often difficult to fine adjust the laser dot at the target point by holding the device to a solid reference. We have addressed this challenge with this professional package.

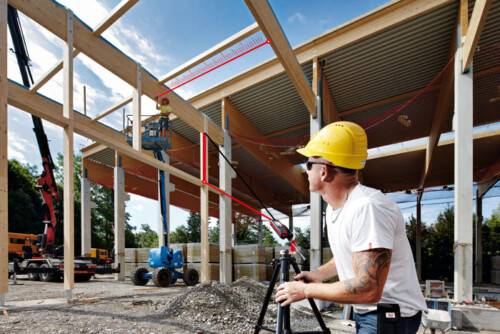

The Leica DISTO D510 laser distance meter with its digital Pointfinder is the right choice for outdoor use on construction sites. Designed for job site use, the DISTO™ D510 meets tough dust and waterproof requirements. Construction professionals benefit from improved workflows for project documentation and wireless data exchange with its latest Bluetooth Smart technology.

Leica DISTO D510 performs the specified measuring accuracy and range under job site conditions. Confirmed by ISO 16331-1 certification – we keep our promise.

The Leica FTA360 adapter features an easy fine adjustment system for convenient and accurate aiming and fits perfectly to the Leica tripod TRI70. Together with the FTA360 adapter the Leica DISTO D510 touch becomes a highly precise measuring system.

Leica Disto D510 Laser Distance Meter

Leica Disto D510 Laser Distance Meter

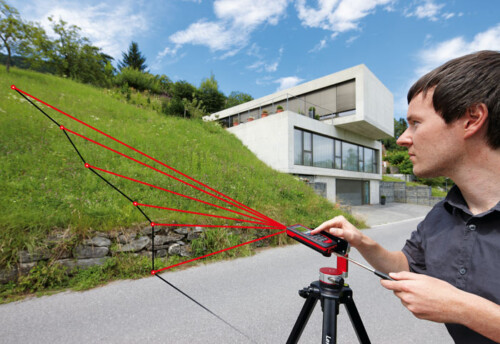

The Leica DISTO D510 stands for easy and effortless outdoor distance measurement. The unique combination of digital Pointfinder and 360° tilt sensor allows measurements which are not possible with conventional distance meters. In addition, with Bluetooth® Smart and attractive free apps, you are prepared for the future.

  • Measuring Range: 0.05m – 200m both indoors and outdoors, even in bright sunshine
  • Measuring Accuracy ± 1 mm (ISO 16331-1 certified)
  • Digital Pointfinder / Viewfinder with 4x zoom
  • IP65 – 100% water jet protection and dust-tight
  • Power Range Technology
  • Measuring Units m, in, ft & 50 Points Memory
View Leica Disto D510 Details

Leica FTA360 Tripod Adapter

Leica FTA360 Tripod Adapter – for precise targeting

For precise measurement or levelling task it is important to perfectly position the laser device. Therefore Leica Geosystems offers different types of adapters & clamps for your application needs.

  • Stable adapter with fine adjustment for convenient and accurate aiming
  • Minimized measuring deviation for indirect measurement
  • Fits perfectly on Leica TRI70, TRI100 & TRI200 tripod
  • High precision tripod adapter for the Leica DISTO D510.
View Leica FTA360 Adapter Details

Leica TRI 70 Tripod

Leica TRI-70 small & handy tripod for every day use

  • Small and handy tripod for every day use
  • Aluminium tripod with easy fine adjustment
  • Bubble level
  • ¼” screw on a stable and turnable head plate
  • Transportation length: 0.45m
  • Weight: 1.4kg
  • Working height from 0.40m to 1.15m (including screw-out central pillar)
View Leica TRI 70 Details

Robust carrying Case

Leica carrying case

  • Robust, attractive and protective carrying case
  • Each item is visible in the case, nothing will be lost or forgotten
  • Designed to be stacked up

Leica Disto D510 Package Contents : Scope of Delivery

  • Leica DISTO™ D510 laser distance meter
  • Holster
  • Hand loop
  • Leica FTA360 tripod adapter
  • Leica TRI 70 tripod
  • Leica robust carrying case
  • 2x AA batteries
  • Calibration Certificate
  • Quick Start Guide
  • Manual / safety instructions on CD

Specifications of Leica Disto D510 Laser Distance Meter

Minimum Measurement 0.05m / 0.16ft
Maximum Measuring Range 200m / 660ft
Measuring Accuracy ±1mm (ISO 16331-1 certified)
Measuring Units m, ft, in
Power Range Technology
Tilt sensor measuring range  360°
Accuracy to the laser beam ± 0.2°
Accuracy to the housing  ± 0.2°
Units in the tilt sensor  0.0°, 0.00%
mm / m, in / ft
Pointfinder with 4x zoom
Memory 30 Points Memory
Time delay release (timer)
Display Illumination
Free App iOS / Android
Data interface Bluetooth® SMART
Measurements per set of batteries up to 5,000 Measurements Reduced in Bluetooth® mode
Service life of battery up to 10 hours Reduced in Bluetooth® mode
Multifunctional end-piece
Tripod thread
Batteries type AA 2 × 1.5 V
Protection class IP65
Dimension 143 × 58 × 29 mm
Weight with batteries 198g
Laser Class 2
Warranty Full Three-Year Replacement Warranty.
Country of Origin Hungary

Functions of Leica Laser Distance Meter Disto D510

Distance measuring Yes
Min/Max measuring Yes
Permanent measuring Yes
Stake out Yes
Addition/Subtraction Yes

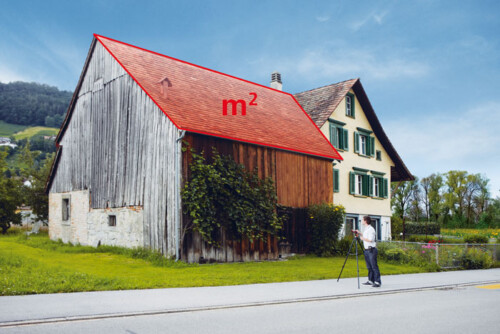

Area Yes
Triangle area Yes
Volume Yes
Trapezium Yes
Painter function (area with partial measurement) Yes
Pythagoras Yes, 2-point, 3-point
Smart Horizontal Mode / Indirect height Yes
Height-profile measurement Yes
Inclination tracking Yes
Sloped objects Yes
Height tracking Yes
Illuminated colour display Yes
Digital Level Yes
Personalized Favorites Yes
Long Range Mode Yes
Calculator Yes
