Leica Disto S910 with FTA 360 Adapter & TRI 70 Tripod Pro Pack

You are here: Home » Online Store » Laser Distance Meters » Leica Disto S910 with FTA 360 Adapter & TRI 70 Tripod Pro Pack

Leica Disto S910 with FTA 360 Adapter & TRI 70 Tripod Pro Pack

 180,000  133,990

Leica DISTO™ S910 case

The Leica DISTO S910 is worldwide the first laser distance meter with the revolutionary P2P Technology. This package is the complete professional system for convenient aiming, precise measurements of point data and creating drawings. It consists of the Leica DISTO™ S910, the Leica FTA360-S tripod adapter, the Leica TRI 70 tripod and the Leica GZM3 target plate. The instrument and accessories come in an attractive, robust case.

  • Measuring Range: 0.05m – 300m both indoors and outdoors
  • Measuring Accuracy ± 1mm (ISO 16331-1 certified)
  • Digital Pointfinder / Viewfinder with 4x zoom, Overview camera
  • Precise 360° tilt sensor & 360° smartbase horizontal sensor
  • Integrated Smart Base for P2P Technology
  • Fine adjustment of the laser dot at the target point by using the Leica FTA 360-S adapter
  • Precise aiming and measuring on small objects and large distances
  • Complete package in a robust and functional carrying case
  • Each product and accessory is visible in the case, so nothing will be lost or forgotten
Brand:
SKU: 806677 Category: Tag:

Product Description

Leica DISTO™ S910 touch case

With the Leica DISTO S910 Leica Geosystems set a new benchmark for handheld laser measuring. Functions such as the P2P Technology for measuring any distance from anywhere or the powerful DXF data capturing enables to fulfil measuring tasks like never before. The extraordinary positive feedback from our customers proof that the Leica DISTO™ S910 is one of the greatest inventions within the Leica DISTO™ family.

The Leica DISTO S910 package comes with the Leica FTA 360-S adapter with fine adjustment, the Leica TRI 70 tripod and the innovative Leica GZM3 target plate in our attractive and robust carrying case. This is exactly what many customers need for precise and comfortable aiming. No matter whether measuring long distances or documenting dimensions of a room from one single position with the Leica DISTO™ S910 package our customers are well prepared for doing a professional measuring job.

The Leica DISTO S910 touch package supports professionals to save time and money and increase their productivity ensuring that they stay ahead of the competition – “when it has to be right”.

Leica Disto S910 Laser Distance Meter

Leica Disto S910 Laser Distance Meter

The Leica DISTO S910 is worldwide the first laser distance meter with the revolutionary P2P Technology. Measure fast and easily distances between any two points from one location. The measurement results can be transferred instantly to PC’s via WLAN. Alternatively the results can be saved on the device as DXF data and downloaded later with the USB interface for use in CAD software. This shortens the workflow and saves valuable time.

  • Measuring Range: 0.05m – 300m both indoors and outdoors
  • Measuring Accuracy ± 1mm (ISO 16331-1 certified)
  • Digital Pointfinder / Viewfinder with 4x zoom, Overview camera
  • Precise 360° tilt sensor & 360° smartbase horizontal sensor
  • Integrated Smart Base for P2P Technology
  • X-Range Power Technology for highest measurement performance
View Leica Disto S910 Details

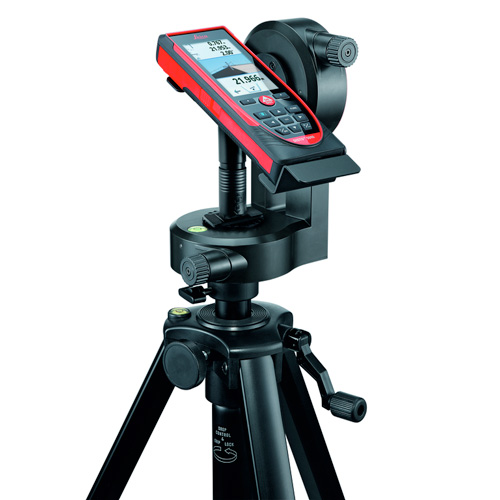

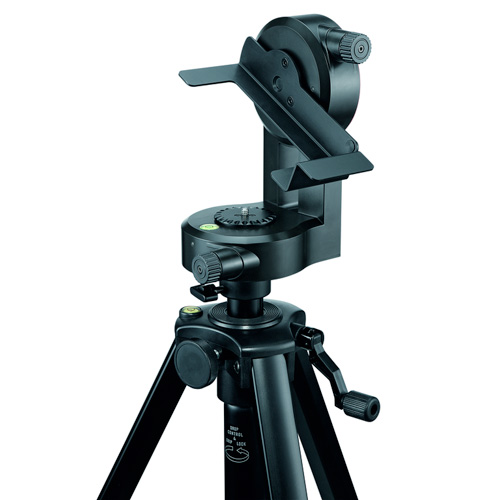

Leica FTA360-S Tripod Adapter

Leica FTA360-S Tripod Adapter – for precise targeting

For precise measurement or levelling task it is important to perfectly position the laser device. Therefore Leica Geosystems offers different types of adapters & clamps for your application needs.

  • Stable adapter with fine adjustment for convenient and accurate aiming
  • Minimized measuring deviation for indirect measurement
  • Fits perfectly on Leica TRI70, TRI100 & TRI200 tripod
  • High precision tripod adapter for the Leica DISTO S910.
View Leica FTA360-S Adapter Details

Leica TRI 70 Tripod

Leica TRI-70 small & handy tripod for every day use

  • Small and handy tripod for every day use
  • Aluminium tripod with easy fine adjustment
  • Bubble level
  • ¼” screw on a stable and turnable head plate
  • Transportation length: 0.45m
  • Weight: 1.4kg
  • Working height from 0.40m to 1.15m (including screw-out central pillar)
View Leica TRI 70 Details

Robust carrying Case

Leica carrying case

  • Robust, attractive and protective carrying case
  • Each item is visible in the case, nothing will be lost or forgotten
  • Designed to be stacked up

Leica Disto S910 Package Contents : Scope of Delivery

  • Leica DISTO™ S910 laser distance meter
  • Holster
  • Hand loop
  • Smart Base Extention
  • Leica FTA360 tripod adapter
  • Leica TRI 70 tripod
  • Leica GZM3 target plate
  • Leica robust carrying case
  • USB charger incl. 4 plugs
  • USB Cable
  • Calibration Certificate
  • Quick Start Guide
  • Manual / safety instructions on CD

Specifications of Leica Disto S910 P2P Laser Distance Meter

Minimum Measurement 0.05m / 0.16ft
Maximum Measuring Range 300m / 1000ft
Measuring Accuracy ±1mm (ISO 16331-1 certified)
Measuring Units m, ft, in
X-Range Power Technology
Tilt sensor measuring range  360°
Accuracy to the laser beam  – 0.1° / + 0.2°
Accuracy to the housing  ± 0.1°
Units in the tilt sensor  0.0°, 0.00%
mm / m, in / ft
Smart Base measuring range
Horizontal 360°
Vertical – 40° to 80°
Distance in m
Typical tolerance of the P2P function
2, 5, 10m
2, 5, 10mm
Levelling range ±5°
Levelling accuracy ±0.05°
Pointfinder with 4x zoom
Overview camera
Picture file format  .jpg
Memory 50 Points Memory
Memory for pictures 80 Photos
CAD data format .dxf
Memory for CAD files 20 files, each with 30 points
Time delay release (timer)
Display Illumination
Free software for Windows
Free App iOS / Android
Data interface Bluetooth® SMART, WLAN
Measurements per set of batteries up to 4,000 Measurements Reduced in Bluetooth® mode
Service life of battery up to 8 hours Reduced in Bluetooth® mode
Multifunctional end-piece
Tripod thread Smart Base
Batteries Li-ion rechargeable
Charging time 4 Hours
Protection class IP54
Dimension 164 × 61 × 32 mm
Weight with batteries 290g
Laser Class 2
Warranty Full Three-Year Replacement Warranty.
Country of Origin Austria

Functions of Leica Laser Measuring Meter Disto S910

Distance measuring Yes
Min/Max measuring Yes
Permanent measuring Yes
Stake out Yes
Addition/Subtraction Yes
Area Yes
Triangle area Yes
Volume Yes
Trapezium Yes
Painter function (area with partial measurement) Yes
Pythagoras Yes, 2-point, 3-point
Smart Horizontal Mode / Indirect height Yes
Height-profile measurement Yes
Level Yes
Sloped objects Yes
Height tracking Yes
Illuminated colour display Yes
Personalized Favorites Yes
Calculator Yes
Photo/Screenshot Yes
Compass Yes
Gallery with USB download Yes
Diameter Yes
Width Yes
Area from Photo Yes
Smart Base Yes
Pointdata transmission Yes
Point to point function / distance Yes
Smart Angle Yes
Smart Area Yes
DXF Data capture Yes

Videos of Leica Disto S910 Touch Laser Distance Meter



Leica Disto S910 – 3D Measurements



Leica Disto S910 – Point to Point Area Measurements
