Leica Lino L2 Plus Crossline Laser Level

 22,000  15,990

Leica Lino L2 Plus – The perfect alignment tool

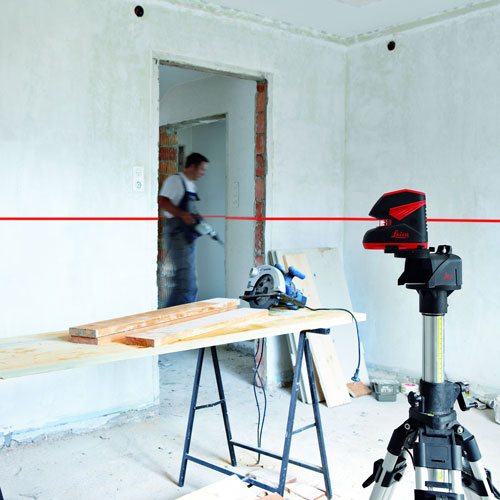

The time-consuming and tedious drawing of lines on the wall is a thing of the past. The Leica Lino L2+ projects them exactly, quickly and easily – allowing you to concentrate on the job in hand. The improved emergence angel ensures outstanding visibility and extension of the laser lines and allow perfect leveling and alignment at long distances.

  • Working Range: Up to 15m* > 30 m with detector
  • Handy size – easy to fit in any professional toolbox
  • Emergence angle of 180°
  • Exact 90° angle
  • Projection and leveling accuracy of +/- 1mm @ 5m
  • Self leveling function - The instrument levels itself in the range of ± 4°
  • IP54 dust and splash water protected
Brand:
SKU: 783711 Category: Tag:

Product Description

Key Features of Leica Lino L2 Plus – the cross line laser

The time-consuming and tedious drawing of lines on the wall is a thing of the past. The Leica Lino L2+ projects them exactly, quickly and easily – allowing you to concentrate on the job in hand. The improved emergence angel ensures outstanding visibility and extension of the laser lines and allow perfect leveling and alignment at long distances.

Extra long laser lines
The improved emergence angle ensures outstanding visibility and extension of the laser line for perfect levelling and alignment at long distances. It is possible, e.g., to transfer reference points from one wall to the next. Leave your spirit level and string in your tool box.

Easily, quickly and with self-levelling function
The Leica Lino L2+ can be set up quickly and effortlessly. Minor alignments are compensated automatically by levelling itself over a range of ±4°. If the tilt is outside these limits, the instrument does not project any lines and errors are therefore prevented. The self-levelling feature can be switched off manually using the lock function. This serves not only as transport protection but allows also to project the laser lines at any angle.

Working in bright conditions
The pulse function is not just an energy-saving mode: it also allows you to locate the laser lines using a laser detector, even in very bright lighting conditions. A series of acoustic signals from the detector indicates the precise position of the laser beam plane.

Lock function
You can manually switch off the self-levelling features using the lock function. The laser line can then be projected at any angle. The lock function also serves as transport protection.

Excellent visibility and accuracy
The Leica Lino projects lines to millimetre accuracy and makes alignment and levelling tasks a lot easier. The well proven Leica Power Range Technology™ ensures a high visibility, even in bright conditions. Due to the extra large emergence angle of the optics the Leica Lino L2+ projects exceptional long lines. It is especially suitable to transfer reference points to walls and ceilings.

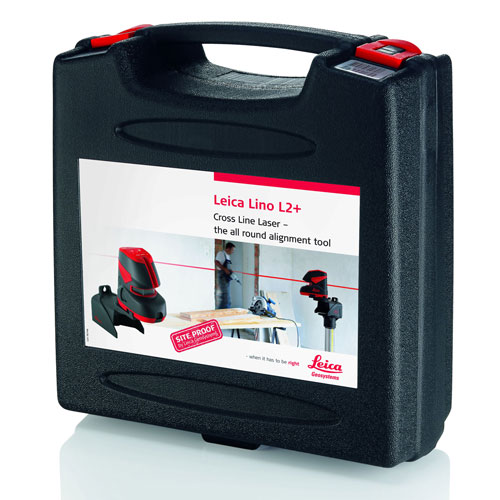

The Lino L2+ is delivered in a practical hard-case, which protects the device and the clever scope of delivery perfectly during transportation and storage.



Leica Lino L2 Plus Technical specifications:
Range up to 15 m depending on lighting conditions
Range with detector > 30 m
Levelling accuracy @ 5 m ± 1 mm
Self-levelling range 4° ± 0.5°
Accuracy of horizontal line @ 5 m ± 1.5 mm
Vertical accuracy @ 3 m line length ± 0.75 mm
Number of laser lines 2
Beam divergence < 180°
Beam direction vertical, horizontal
Laser type 635 nm, laser class II
Batteries type AA 4 × 1.5 V
Protection class splash water/ dust proof IP54
Operating temperature –10 °C to 40 °C
Storage temperature –25 °C to 70 °C
Dimensions (H × D × W) 117.8 × 130.7 × 75.4 mm
Weight without batteries 435g
Tripod thread 1/4”

Video of Leica Lino L2 Plus Crossline Laser Level
