Leica Lino L2 Pro Crossline Laser Level

You are here: Home » Online Store » Line & Point Lasers » Leica Lino L2 Pro Crossline Laser Level

Leica Lino L2 Pro Crossline Laser Level

 22,000  16,990

  Including GST.   Free Shipping.
Delivery within 2-3 business days.

Leica Lino L2 Pro – the cross line laser

The Leica Lino L2 cross line laser projects highly visible lines at right angles to one another. The time-consuming and tedious task of drawing lines on a wall is a thing of the past. The Leica Lino L2 features high accuracy of 1mm@5meters. With its multifunctional magnetic mini tripod, the Leica Lino L2 can be quickly set-up or attached to walls, shelves or profiles.

  • Working Range: Up to 25m* > 80 m with detector
  • Handy size – easy to fit in any professional toolbox
  • Soft grip components prevent slipping
  • Projection and leveling accuracy of +/- 1mm @ 5m
  • Self leveling function The instrument levels itself in the range of ± 4°
  • IP54 dust and splash water protected

Brand:
SKU: 864413 Category: Tag:

Description

Key Features of Leica Lino L2 – the cross line laser

The Leica Lino L2 Pro cross line laser projects highly visible lines at right angles to one another. The time-consuming and tedious task of drawing lines on a wall is a thing of the past. The Leica Lino L2 features high accuracy of ±1mm@5meters. With its multi-functional magnetic adapter, the Leica Lino L2 can be quickly set-up or attached to walls, shelves or profiles.

Exact and quick projection of horizontal and vertical lines

Leica Lino L2s Outstanding Laser Visibility

OUTSTANDING LASER VISIBILITY

The high-precision optics of the Leica Lino L2 ensure outstanding laser line visibility up to 25 meters, depending on lighting conditions. Its exceptionally long horizontal and vertical laser lines are projected to floors, walls and ceilings at more than 180 degrees.

SELF-LEVELLING

The Leica Lino L2 Pro automatically adjusts its positioning if it is slightly out of level up to ± 4°. Outside this limit a visual alert is activated to prevent errors.

SMART ADAPTERS

Smart adapters allow for quick and precise positioning. You can set up rotatable adapters over edges and profiles, or easily attach them to iron pipes, tracks and bars.

RUGGED DESIGN

The Leica Lino L2 is dust and spray water protected to IP 54 standards. This makes it a rugged instrument suitable for all your jobs.

Leica Lino L2 Pro Laser Level Technical Specifications

Laser 2 lines (red)
Beam direction/fan angle Vertical / >170°, Horizontal / >180°
Range* 25 m (82 ft)
Range* with receiver 80 m (262 ft)
Levelling accuracy ±0.2 mm/m  or  ±1.0 mm @ 5m  or  ±2.0 mm @ 10m
±0.002 in/ft  or  ±0.04 in @ 16ft  or  ±0.08 in @ 33ft
Horizontal/Vertical line accuracy ±0.3 mm/m (±0.004 in/ft)
Self-levelling range ± 4 °
Self-levelling time < 3 s
Out-of-level warning Yes à laser lines blink every 5 s
Levelling system Automatic pendulum
Pendulum Lock Yes
Laser type 635 ± 5 nm, Class 2 acc. IEC 60825-1
Protection class IP 54 (IEC 60529) dust and splash water
Drop resistance 6 x 0.5 m (1.64 ft)

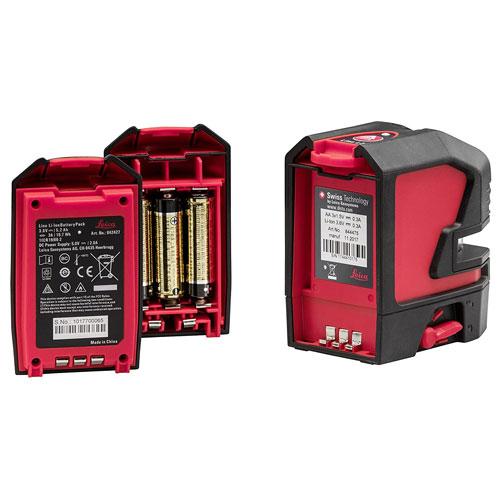

Battery type Lino Li-Ion battery pack 5200 mAh / 18.7 Wh (3 alkaline AA)
Operating time with Li-Ion battery 8h (2 beam) – 13h (1 beam) continuous
Operating time with alkaline battery 26h (2 beam) – 44h (1 beam) continuous
Low power alert Status LED red
Automatic shut-off Available
Dimensions (L x W x H) 110 x 60 x 100 mm (4.33 x 2.36 x 3.93 in)
Weight with Li-Ion/Alkaline battery 530/500 g (1.17/1.10 lbs)
Operating temperature -10…+50 °C (+14…+122 °F)
Storage temperature -25…+70 °C (-13…+158 °F)
Temperature alert Status LED blinks red (5Hz)
Laser line width at 5m distance < 2 mm (<0.08 in)
Beam divergence < 1.5 mrad
Tripod thread 1/4’’ (+ 5/8’’ with adapter)
Pulse power for receiver Yes, auto
Size Info’s Case Single 1 pcs = 33.5 cm x 38 cm x 17 cm   Weight: 3.7 kg
Size Info’s Box Single 1 pcs = 16.8 cm x 19 cm x 9.5 cm   Weight: 1.2 kg

Leica Lino L2 Pro Scope of delivery:

  • Leica Lino L2
  • Twist 250
  • Case
  • Li-Ion battery
  • Charger
  • Alkaline battery tray
  • Target Plate

Video of Leica Lino L2 Crossline Laser Level
