Leica Lino L2P5 With TRI 70 Tripod Pro Pack

 39,000  28,990

Leica Lino L2P5 Pro Case – The complete solution for interior applications

The Leica Lino L2P5 point-line laser can do everything; it combines all the functions and advantages of the Leica Lino point and line lasers. In addition to the five laser points at right angles to one another, the tool creates a horizontal and vertical line or plane to allow your alignment and levelling work to be completed quickly and easily.

  • Working Range: Up to 15m* > 30 m with detector
  • Emergence angle of 180°
  • Exact 90° angle
  • Projection and leveling accuracy of ± 1.5mm @ 5m
  • Accuracy of plumb dots ± 1.5mm @ 5m
  • Self leveling function – The instrument levels itself in the range of ± 4°
  • IP54 dust and splash water protected
Brand:
SKU: 820685 Category: Tag:

Product Description

Key Features of Leica Lino L2P5 – the all-in-one instrument

The Leica Lino L2P5 point-line laser can do everything; it combines all the functions and advantages of the Leica Lino point and line lasers. In addition to the five laser points at right angles to one another, the tool creates a horizontal and vertical line or plane to allow your alignment and levelling work to be completed quickly and easily.

Extra long laser lines
The improved emergence angle ensures outstanding visibility and extension of the laser line for perfect levelling and alignment at long distances. It is possible, e.g., to transfer reference points from one wall to the next. Leave your spirit level and string in your tool box.

Leica Lino L2P5 – Multi-functionality perfected
The Leica Lino L2P5 combines all the advantages of Leica Lino dot and line lasers. The five laser dots are precisely aligned at right angles to one another. The laser cross lines make alignment so simple.

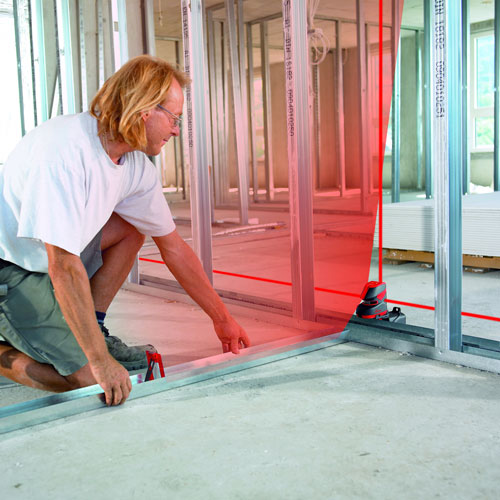

Aligning windows and tiles
In addition to the plumb beams, the Leica Lino L2P5 projects two dots and lines. Aligning windows, partition walls and other building elements becomes quick and easy.

Setting out right angles
The Leica Lino L2P5 has 4 lines and two dots which are exactly at right angles to one another. This simplifies setting out tasks and makes your interior fittingout more precise and efficient.

Self-levelling
Minor angular misalignments of ±4° are compensated automatically. If the angular misalignment is greater, the device does not project any lines or dots.

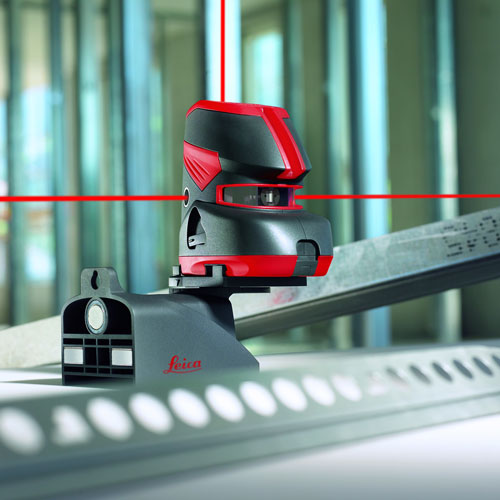

Right-angled arrangement
Leica Lino L2P5 laser points and lines are projected at right angles to one another. Aligning tasks, such as marking out 90° angles, are done at the touch of a button. Aligning windows, partition walls and other building elements becomes an easy task.

Aligning vertical pipework
Leica Lino L2P5 is the perfect tool for plumbing. The laser beam is projected above and below the tool, allowing you to transfer reference points quickly and efficiently, e.g. from floor to ceiling. Pipework, trunking and other fixtures are always perfectly plumb.

Expanded range of applications
The adapter supplied with the Leica Lino L2P5 positions the instrument quickly and with absolute precision. You can set up the adapter over edges and profiles, attach it to circular columns or fix it to steel or iron pipes with the integrated magnets.

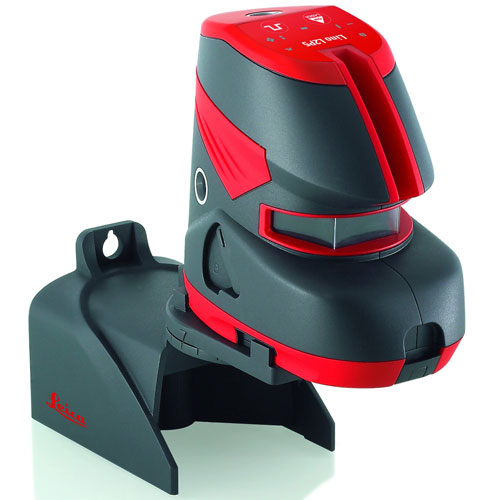

Leica Lino L2P5 Crossline & Point Laser Level

Leica Lino L2P5 – The all-in-one instrument

The Leica Lino L2P5 point-line laser can do everything; it combines all the functions and advantages of the Leica Lino point and line lasers. In addition to the five laser points at right angles to one another, the tool creates a horizontal and vertical line or plane to allow your alignment and levelling work to be completed quickly and easily.

  • Working Range: Up to 15m* > 30 m with detector
  • Emergence angle of 180°
  • Exact 90° angle
  • Projection and leveling accuracy of ± 1.5mm @ 5m
  • Accuracy of plumb dots ± 1.5mm @ 5m
  • Self leveling function - The instrument levels itself in the range of ± 4°
  • IP54 dust and splash water protected
View Leica Lino L2P5 Details

Leica TRI 70 Tripod

Leica TRI-70 small & handy tripod for every day use

  • Small and handy tripod for every day use
  • Aluminium tripod with easy fine adjustment
  • Bubble level
  • ¼” screw on a stable and turnable head plate
  • Transportation length: 0.45m
  • Weight: 1.4kg
  • Working height from 0.40m to 1.15m (including screw-out central pillar)
View Leica TRI 70 Details

Robust carrying Case

Leica carrying case

  • Robust, attractive and protective carrying case
  • Each item is visible in the case, nothing will be lost or forgotten
  • Designed to be stacked up

Leica Lino L2G Plus Package Contents : Scope of Delivery

  • Leica Lino L2P5 Crossline Laser Level
  • Target Plate
  • Magnetic Multi-functional Adapte

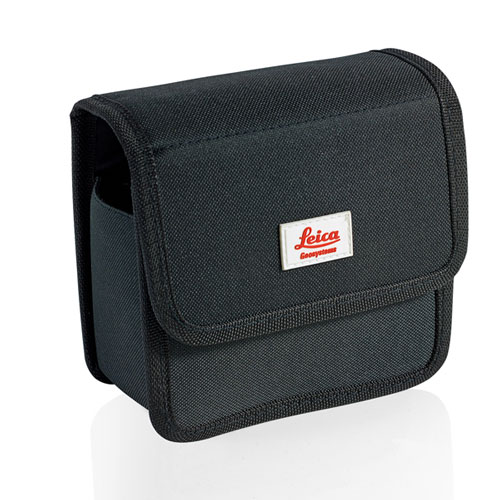

  • Soft Pouch
  • Leica TRI 70 tripod
  • 4x AA Reachargeable Batteries with Charger
  • Leica robust carrying case
Leica Lino L2P5 Plus Technical specifications:
Range up to 15 m depending on lighting conditions
Range with detector > 30 m
Levelling accuracy @ 5 m ± 1.5 mm
Self-levelling range 4° ± 0.5°
Accuracy of plumb dots @ 5 m ± 1.5 mm
Accuracy of horizontal line @ 5 m ± 1.5 mm
Vertical accuracy @ 3 m line length ± 0.75 mm
Number of laser lines 2
Beam direction Vertical, Horizontal, Up, Down, Right, Left
Laser type 635 nm, laser class II
Batteries type AA 4 × 1.5 V
Protection class splash water/ dust proof IP54
Operating temperature –10 °C to 40 °C
Storage temperature –25 °C to 70 °C
Dimensions (H × D × W) 117.8 × 130.7 × 75.4 mm
Weight without batteries 370g
Tripod thread 1/4”

Video of Leica Lino L2P5 Crossline Laser Level
