Leica Lino ML180 Crossline Laser Level

 135,000  91,990

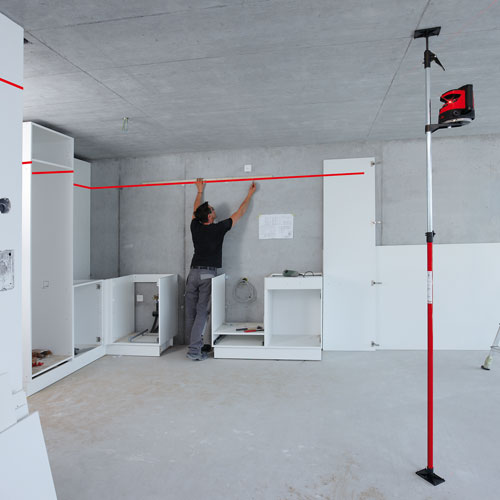

Leica Lino ML180 – Versatility for interior and exterior applications

The Smart Targeting function of the Leica Lino ML 180 enables construction workers to get their layout job done very efficient by one person even at long distances. Only a single press on a button is necessary to align the laser lines quickly. For layout work up to 100 meters, if accuracy is extremely important to avoid expensive mistakes, the precise electronic self-levelling system is a decisive advantage.

  • Working Range: Up to 20m > 100 m with detector
  • Emergence angle of 180°
  • Precise projection of 90° angles
  • Projection and leveling accuracy of ± 0.7mm @ 10m
  • Self leveling function - The instrument levels itself in the range of ± 5°
  • Innovative Li-Ion power: 12 h battery life on a single charge
  • Precision – 360° rotation base with fine adjustment

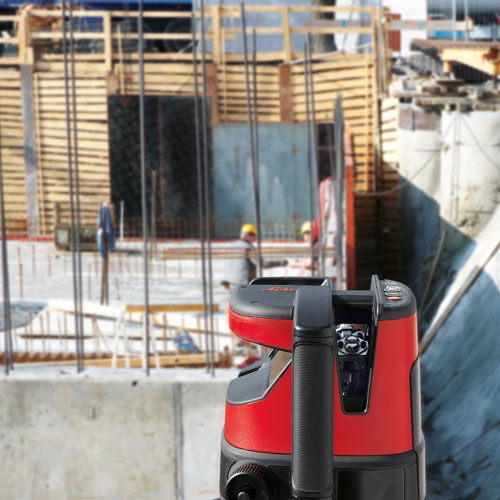

  • Designed for everyday use on site – interior and exterior
  • Extended working range with laser receiver Leica XCR Catch can detect laser lines up to 100m
  • IP54 dust and splash water protected
Brand:
SKU: 784438 Category: Tag:

Product Description

Key Features of Leica Lino ML180 – Versatility for interior and exterior applications

The Smart Targeting function of the Leica Lino ML 180 enables construction workers to get their layout job done very efficient by one person even at long distances. Only a single press on a button is necessary to align the laser lines quickly. For layout work up to 100 m, if accuracy is extremely important to avoid expensive mistakes, the precise electronic self-levelling system is a decisive advantage. Thanks to its flexible power supply concept the Leica Lino ML180 is always ready to use.

Leica Lino ML-180 – the most advanced multi line laser
The new multi-line laser Leica Lino ML180 combines high accuracy with ease of use by adding automatic Smart Targeting. This new function automatically catches the laser beam to save time and costs on interior finishing or smaller exterior construction projects. One person is all that is needed to efficiently complete layout tasks of up to 50 meters. The repetitive, time-consuming task of checking projection lines over long distances has been eliminated.

Leica Lino ML-180 One Man OperationOne Man Operation
The Smart Targeting function enables automatic aligning of the vertical laser beam from the Leica Lino ML180 via the included XCR Catch laser receiver with remote control. Users no longer need to walk back and forth to continuously check alignment positions. Workflows are optimised, resulting in time and cost savings. One person is all that is needed to efficiently complete layout tasks of up to 50 meters.

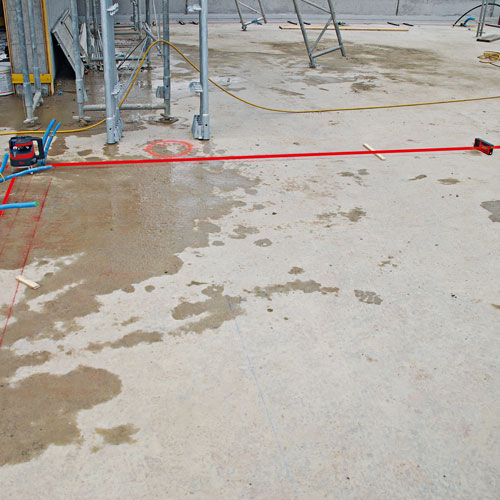

Leica Lno ML-180 Precise Layout at Long DistancesPrecise layouts at long distances
The unique & highly accurate electronic self-levelling projects precise laser lines and avoids errors due to inaccurate line projection. A clear advantage, especially over long distances up to 50 meters.

Leica Lino ML-180 Work Without DowntimeWork without any downtime
The Leica Lino ML 180 can be used with a rechargeable battery pack or alkaline batteries. This provides maximum flexibility and ensures that the Leica Lino ML180 is always ready for use. The tool can also be operated whilst being charged.

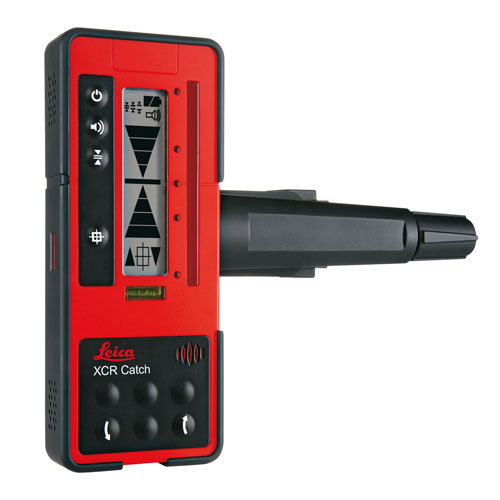

XCR Catch Laser Receiver ClampLaser Receiver & Remote XCR Catch
Leica XCR Catch is equipped with a large window for reception. Laser lines can be detected very quickly. The window can be displayed from either side of the device to position the laser line can be read from any working position.


Leica Lino ML180 No DisplacementNo displacement

90° angle is rotated over plumb in a ± 4° range. Displacement avoided as no manual re-positioning of the line laser necessary.


Leica Lino ML180 Effortless PositioningEffortless positioning

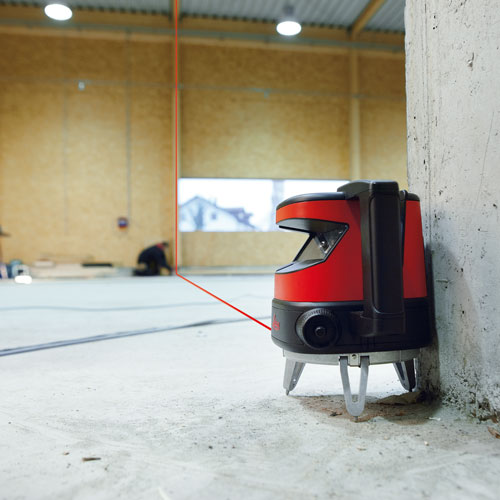

Plumb beam is located on the outer edge of the housing for closer positioning towards a wall or in a corner – simplifies layouting.

Leica Lino ML180 Multi Line Laser Level Art. No. 784438 Scope of delivery

  • Leica Lino ML 180 Multi Line Laser Level
  • XCR Catch Laser Receiver with Clamp
  • Ni-MH Rechargeable Battery Pack
  • Charger with different plugs for world-wide use
  • Alkaline battery tray
  • Target Plate Small
  • Target Plate Big
  • Laser Goggles
  • Rugged Carrying Case
  • Quickstart guide, Protect card, Safety instructions, Manufacturer certificate
Technical specifications Leica Lino ML180
No of lines / points 4 lines / 1 point
Directions vertical front, left, right, horizontal, plumb down
Levelling / line accuracy ±0.7 mm @ 10 m   (0.027 in @ 10m)
90° angular accuracy ±0.2 mm / m
Self-levelling range ±5 °
Self-levelling time < 10 s
Range, visible* 20 m (65.6 ft)
Vertical adjustment over plumb point automatically at ±4° vertical
Motorized unit, works with
XCR Catch for auto-alignment
yes, ready for remote control and Smart Targeting with XCR Catch
Range of remote control / Smart Targeting with XCR Catch 50 m (164 ft)
Range with XCR Catch
(line location)
100 m (328 ft)
Out-of-level warning yes, laser beam blinks
Levelling system Electronic levelling
Pendulum lock no, not necessary
Laser type < 1 mW, 635 nm, class 2 (IEC 60825-1:2008)
Protection class IP 54
Battery type type D, 2 x 1.5V or rechargeable NiMH battery pack
Operating time alkaline batteries 10 h
Operating time rechargeable batteries 12 h
Charging during operation yes is possible
Low power alert yes, red LED indication on keypad:

blinking = power lasts up to 2 h
permanent = power too low

Dimensions ML device 250 x 159 x 230 mm  (9.9 x 6.3 x 9.1 inch)
Weight with batteries 2200 g (77oz)
Operating temperature -10 to + 45° C  (14° F to + 113° F)
Storage temperature -25 to +70 ° C  (-13° F to + 158° F)
Fan angle vertical sides 120 °
Fan angle vertical front 120 °
Fan angle horizontal 170°
Laser line width @ 5 m distance < 2 mm
Tripod thread 5/8 in
Pulse power for receiver yes, is permanently switched on

Leica Lino XCR Catch

Technical specifications Leica Lino XCR Catch
Range* for line location 100 m (328 ft)
Range remote control / Smart Targeting 50 m (164 ft)
Sensitivity for line location ± 1mm, ± 3mm, ± 5mm
Length of detection window front- and backside 86 mm (3.4 inch)
Protection Class IP 65
Operation Temperature -10° to 50° C, (14° to + 122° F)
Storage Temperature -25° to 70°C, (-13° F to + 158° F)
Battery type 3 x 1.5V AA
Dimensions 190 x 75 x 30 mm (7.5 x 3.0 x 1.2 inch)
Weight with batteries 310g
