Leica NA2 and Leica NAK2 are two universal automatic levels meet all the requirements of precision levelling.

Angle measurement with the NAK2
The model NAK2 has an internal glass circle which is read via a scale microscope and which can be set to any value by turning the rim around the base of the instrument. Tacheometric levelling is also available with the K-version on fl at terrain by combining stadia and angular measurements with height readings.

• Standard deviation per km: 0.7mm (double-run levelling). Protection: IP53. Operating temperature: -20 °C to +50 °C. Weight: 2kg.
• Telescope – Magnifi cation: 32x. Clear objective aperture: 45mm. Shortest focusing distance: 1.6m, Multiplication factor: 100. Additive constant: 0.
• Compensator – Working range: ± 30’. Setting accuracy (stand. dev.): 0.3”. Sensitivity of circular level: 10/2mm. Graduation interval of Hz: 1 °.

Leica’s top-class optical quality gives the NA2 & NAK2 a bright high contrast image.

• push button compensator check
• endless horizontal drive for left and right handed users
• coarse and fine focusing knob
• play-free footscrews
• optional eyepieces available
• top-class optics

To improve accuracy a parallel plate micrometer can be fitted over the telescope objective. The parallel plate micrometer permits direct readings to 0.1mm and estimated readings to 0.01mm. This makes the NA2 and NAK2 an ideal precise level for deformation studies or industrial measuring tasks.

The NAK2 model has an internal glass circle for reading horizontal angles. Combined with the stadia calculation of distances from staff readings the NAK2 circle adds the application benefit of detail survey work.

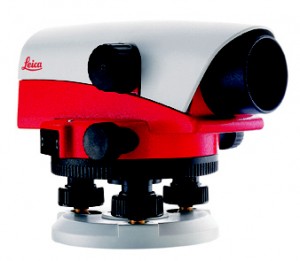

Leica NA700 Series

Leica NA 700 Series Automatic Levels

Build for builders, engineers and surveyors levels.

Nothing stops a Leica NA700 auto level. A short drop onto the ground, a fall into water, vibration from heavy machinery – with a Leica NA700 auto level you just carry on working. No time-consuming checking or readjustment required. And, the ‘best in class’ optics enable you to always work as precisely as possible, even in twilight. What does this add up to? Reduced work downtime, thus translate into higher productivity, resulting in reliability and accuracy at an extremely reasonable price. Test one for yourself, today.

Leica NA-700 Series Features:

Superior Performance, Superior Value Extreme robustness, the highest measurement precision and an extremely competitive price. All this in one package. No one else comes close.

So Easy to Use

The circular bubble and horizontal circle can be read directly next to the telescope. Approximate targeting is made easy using the external sight. The image is presented upright and precise targeting is quick, courtesy of the double-sided endless drives. The NA728 and NA730 have a rough/fine focus drive making your work even easier.

Free Choice

Configure the level to suit your work and preferences. The horizontal circle can be read in either degrees or gons, the footscrews have adjustable resistance. Also, the NA700 automatic level series may be mounted on flat or dome head tripod.

Ergonomic Optics

Probably the finest optics in the world. Banish tired eyes forever. Ensures you’re really aiming accurately at the target, even in extreme light conditions. A minimum target distance of 50cm enables you to work in the tightest conditions.

Just in case – Shock Resistant

Even after a fall, the LEICA NA700 series levels can be used again straight away. No need to check or readjust the instrument in the workshop or send it for service. In our quality assurance tests the LEICA NA700 auto level is subjected to impacts with an acceleration of up to 700G. It’s also passed the tough ISO9022-33-05 standard. These quality tests ensure that the LEICA NA700 can withstand the roughest treatment on site.

Just in case – Waterproof

Water, dust and dirt have no effect on the LEICA NA700 series automatic level. High quality workmanship matched with an intelligent design, watertight seals, a gas-filled telescope and the most modern technology mean that even after a total soaking you just carry on working. LEICA NA700 series levels are tested for water resistance up to IP57 (total immersion) of the IEC60529 standard.

Just in case – “Best in class” optics

Whether early in the morning, late in the afternoon or simply in the shade of a large building, you can work with the NA700 level series where the others simply have to give up. Better contrast reduces the strain on your eyes and makes it easier to read the measurement. The building site is no place for compromise. That’s why every LEICA NA700 auto level uses our renowned optics. What does this mean? Longer periods of use with reduced chances of error. And at no extra cost.

There are four models in the NA700 range:

Leica NA720  –  The automatic level for all applications on the construction site. 20x telescopic magnification.

Leica NA724  –  24x telescopic magnification for improved accuracy. Reliability and Robustness for the demanding construction user.

Leica NA728  –  The all-rounder. 28x telescopic magnification, precision compensator. For building or engineering surveys.

Leica NA730  –  The most precise. 30x telescopic magnification. Meets the highest standards in construction, engineering and topographic surveys.

Leica NA700 Auto Level Technical Specs:

100 Years of Leica Geosystems Research, Development and Experience In every LEICA NA700 auto level series lies over a century of research and development from forefathers Kern Swiss and WILD Heerbrugg. Continuous application of the most modern technology has led to Leica Geosystems of today. Leica offers a wide range of surveying instruments and software, with a legendary reputation for precision and reliability that has been put to the test for decades on the building site.

Leica Jogger 32-Fit for Work

Leica’s most economical Automatic Builders Level  is designed specifically for general construction applications. The Leica Jogger 32 has a 32x magnification and is the ideal instrument for all your daily leveling tasks such as Building and Civil Engineering, Profiling, Landscaping, and Area Leveling.

Automatic optical levels are also known as site levels or dumpy levels.

[vc_tabs interval=”0″ width=”1/1″ el_position=”first last”][vc_tab title=”Description” tab_id=”description”]

Fit for Work – Great features and great performance:

• Magnification: 32x
• Automatic, air-damped compensator
• Smooth, double-sided endless fine drive for easy and precise targeting
• Horizontal circle with 360° division

Fit for Work – Quality and Endurance:

• Water resistant (IP54) for instrument use under harsh environmental conditions.
• 1 year warranty.

Fit for Work – Great Jogger package

Tripod and staff are important parts of any levelling equipment. Get better results with Best Quality Tripods and Staffs.

Applications

• Levelling footing
• Concrete pours
• Elevation control
• Grade checking
• Excavations
• Drainage pipes
• Walkway construction
• Profiling
• Area levelling

[/vc_tab][vc_tab title=”Specifications” tab_id=”specifications”]

Leica Jogger Technical data	Leica Jogger 20	Leica Jogger 24	Leica Jogger 28	Leica Jogger 32
Standard deviation per 1 km double-run level	2.5 mm	2.0 mm	2.0 mm	2.0 mm
Magnification	20x	24x	28x	32x
Shortest focusing distance	1 m	1 m	1 m	1 m
Compensator Working range Setting range	±15′ 0.5″	±15′ 0.5″	±15′ 0.5″	±15′ 0.5″
Operating temperature	-20°C to +40°C	-20°C to +40°C	-20°C to +40°C	-20°C to +40°C
Weight (net)	1.5 kg	1.5 kg	1.5 kg	1.5 kg

Leica Jogger 32 Package:

• 1 No. Leica Jogger 32 Automatic Optical Level
• 1 No. Hard ABS Protective Case
• 1 No. Adjustment Screwdriver
• 1 No. Adjustment Allen Key
• 1 No. Instruction Manual
• 1 No. 12 Month Warranty
• 1 No. Aluminium Tripod
• 1 No. Aluminium 5m Levelling Staff

[/vc_tab][vc_tab title=”Gallery” tab_id=”gallery”] [/vc_tab][vc_tab title=”Downloads” tab_id=”downloads”]

[/vc_tab] [/vc_tabs]

[vc_separator width=”1/1″ el_position=”first last”]

About Leica Geosystems – when it has to be right

With close to 200 years of experience pioneering solutions to measure the world, Leica Geosystems products and services are trusted by professionals worldwide to help them capture, analyze, and present spatial information. Leica Geosystems is best known for its broad array of products that capture accurately, model quickly, analyze easily, and visualize and present spatial information.

Those who use Leica Geosystems products every day trust them for their dependability, the value they deliver, and the superior customer support. Based in Heerbrugg, Switzerland, Leica Geosystems is a global company with tens of thousands of customers supported by more than 3,500 employees in 28 countries and hundreds of partners located in more than 120 countries around the world. Leica Geosystems is part of the Hexagon Group,

Tough, budget-priced construction levels.

Leica Runner 24 are robust, budget-priced construction levels. They are quick to set up, simple to use and accurate, with clear, bright optics for easy readings.

Leica Runner 24 are offered with a wide range of sturdy tripods and telescopic leveling staffs.

Leica Runner optical Levels – Superior performance at a great price

These Leica Optical levels are unshakeable. With a level from Leica you can just keep on working. The Leica RUNNER 24 levels are ideal construction levels for site foremen ,engineers, architects, landscape gardeners, carpenters, construction companies and many more. A solid metal housing provides a robust mounting for the high quality Leica optics and compensator. This ensures the Leica Runner is truly SITE TOUGH working in the Harshest environments time and time again. A two year warranty is Leicas commitment to this quality.

The clear optics makes the Leica Runner 20 ideal for smaller construction sites and the Leica Runner 24 with the greater magnification makes the longer sites more manageable offering clear visibility at the greater distances. Clear lines visible in the eye piece on the Leica Runner series of optical levels makes reading the staff easy and the calculating of distances very straight forward.

Leica Runner 24 Leveling Instrument Features:

• Robust and accurate
• Air-damped compensator
• Water resistant (IP55)
• Double-sided endless fine drive
• Pentaprism for easy viewing of circular level
• Horizontal circle with 360° division
• Budget-priced

Tough, budget-priced construction levels.

Leica Runner 20 are robust, budget-priced construction levels. They are quick to set up, simple to use and accurate, with clear, bright optics for easy readings.

Leica Runner 20 are offered with a wide range of sturdy tripods and telescopic leveling staffs.

Leica Runner optical Levels – Superior performance at a great price

These Leica Optical levels are unshakeable. With a level from Leica you can just keep on working. The Leica RUNNER 20 levels are ideal construction levels for site foremen ,engineers, architects, landscape gardeners, carpenters, construction companies and many more. A solid metal housing provides a robust mounting for the high quality Leica optics and compensator. This ensures the Leica Runner is truly SITE TOUGH working in the Harshest environments time and time again. A two year warranty is Leicas commitment to this quality.

The clear optics makes the Leica Runner 20 ideal for smaller construction sites and the Leica Runner 24 with the greater magnification makes the longer sites more manageable offering clear visibility at the greater distances. Clear lines visible in the eye piece on the Leica Runner series of optical levels makes reading the staff easy and the calculating of distances very straight forward.

Leica Runner 20 Leveling Instrument Features:

• Robust and accurate
• Air-damped compensator
• Water resistant (IP55)
• Double-sided endless fine drive
• Pentaprism for easy viewing of circular level
• Horizontal circle with 360° division
• Budget-priced

Leica Jogger 28-Fit for Work

Leica’s most economical Automatic Builders Level  is designed specifically for general construction applications. The Leica Jogger 28 has a 28x magnification and is the ideal instrument for all your daily leveling tasks such as Building and Civil Engineering, Profiling, Landscaping, and Area Leveling.

Automatic optical levels are also known as site levels or dumpy levels.

[vc_tabs interval=”0″ width=”1/1″ el_position=”first last”] [vc_tab title=”Description” tab_id=”description”] Fit for Work – Great features and great performance:

• Magnification: 28x
• Automatic, air-damped compensator
• Smooth, double-sided endless fine drive for easy and precise targeting
• Horizontal circle with 360° division

Fit for Work – Quality and Endurance:

• Water resistant (IP54) for instrument use under harsh environmental conditions.
• 1 year warranty.

Fit for Work – Great Jogger package

Tripod and staff are important parts of any levelling equipment. Get better results with Best Quality Tripods and Staffs.

Applications

• Levelling footing
• Concrete pours
• Elevation control
• Grade checking
• Excavations
• Drainage pipes
• Walkway construction
• Profiling
• Area levelling

[/vc_tab][vc_tab title=”Specifications” tab_id=”specifications”]

Leica Jogger Technical data	Leica Jogger 20	Leica Jogger 24	Leica Jogger 28	Leica Jogger 32
Standard deviation per 1 km double-run level	2.5 mm	2.0 mm	2.0 mm	2.0 mm
Magnification	20x	24x	28x	32x
Shortest focusing distance	1 m	1 m	1 m	1 m
Compensator Working range Setting range	±15′ 0.5″	±15′ 0.5″	±15′ 0.5″	±15′ 0.5″
Operating temperature	-20°C to +40°C	-20°C to +40°C	-20°C to +40°C	-20°C to +40°C
Weight (net)	1.5 kg	1.5 kg	1.5 kg	1.5 kg

Leica Jogger 28 Package:

• 1 No. Leica Jogger 28 Automatic Optical Level
• 1 No. Hard ABS Protective Case
• 1 No. Adjustment Screwdriver
• 1 No. Adjustment Allen Key
• 1 No. Instruction Manual
• 1 No. 12 Month Warranty
• 1 No. Aluminium Tripod
• 1 No. Aluminium 5m Levelling Staff

[/vc_tab][vc_tab title=”Gallery” tab_id=”gallery”] [/vc_tab][vc_tab title=”Downloads” tab_id=”downloads”] [/vc_tab] [/vc_tabs]

[vc_separator width=”1/1″ el_position=”first last”]

About Leica Geosystems – when it has to be right

With close to 200 years of experience pioneering solutions to measure the world, Leica Geosystems products and services are trusted by professionals worldwide to help them capture, analyze, and present spatial information. Leica Geosystems is best known for its broad array of products that capture accurately, model quickly, analyze easily, and visualize and present spatial information.

Those who use Leica Geosystems products every day trust them for their dependability, the value they deliver, and the superior customer support. Based in Heerbrugg, Switzerland, Leica Geosystems is a global company with tens of thousands of customers supported by more than 3,500 employees in 28 countries and hundreds of partners located in more than 120 countries around the world. Leica Geosystems is part of the Hexagon Group,
