Leica Piper 100 And 200 Pipe Lasers

You are here: Home » Leica » Leica Pipe Lasers » Leica Piper 100 And 200 Pipe Lasers

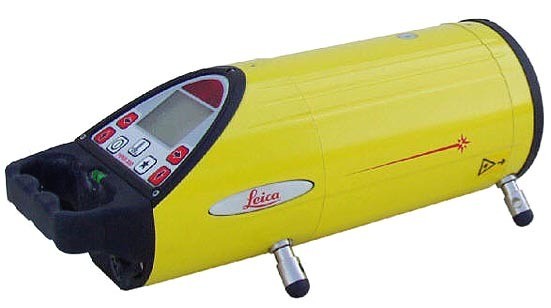

Leica Pipe Laser Piper 100/200 SeriesThe Leica Piper series of pipe lasers are perfect for: storm and sanitary sewer construction, gravity flow pipe line and anywhere grade and line are required with a single beam. Choose from the Leica Piper 100 or the Leica Piper 200 with Alignmaster.

Powerful and compact, the Leica Piper is the only pipe laser that fits inside a 100 mm (four inch) pipe. It is built with solid cast-aluminum housings, and is loaded with features that will improve productivity and minimize downtime on the jobsite.

It is ideal anywhere line and grade is required.  It has a large clear display that makes it easier for contractors to read grade, line position, battery status, and level indication. The intelligent battery monitors the amount of charge/discharge so that contractors always know how much battery life they have left. The Leica Piper’s bright, visible beam is focused to maintain its crisp, clear spot and size over long distances. Automatic grade compensation easily identifies and corrects grade errors. It automatically self-levels over a full grade range, and eliminates the need to tip the laser for steep slopes.

The Piper 200 features the Alignmaster function, a patented automatic targeting system that searches and finds the target for fast second day setups.

Technical Specifications of Leica Piper

 Features Piper 100 Piper 200
Beam Highly visible red beam Highly visible red beam
Display Large, easy to read LCD display Large, easy to read LCD display
Alignmaster* No Yes
Line and Grade Locks Yes Yes
Wide Line Adjustment Yes Yes
Self-levelling Over full range Over full range
Grade entry Direct or by digit Direct or by digit
Remote control Yes, wireless Yes, wireless
Housing Rock solid metal Rock solid metal
Battery pack Rechargeable Lithium-Ion Rechargeable Lithium-Ion
Waterproof 100% 100%

*Automatic targeting system allows you to find the target fast for second day set-ups.

[vc_separator width=”1/1″ el_position=”first last”]

About Leica Geosystems – when it has to be right

With close to 200 years of experience pioneering solutions to measure the world, Leica Geosystems products and services are trusted by professionals worldwide to help them capture, analyze, and present spatial information. Leica Geosystems is best known for its broad array of products that capture accurately, model quickly, analyze easily, and visualize and present spatial information.

Those who use Leica Geosystems products every day trust them for their dependability, the value they deliver, and the superior customer support. Based in Heerbrugg, Switzerland, Leica Geosystems is a global company with tens of thousands of customers supported by more than 3,500 employees in 28 countries and hundreds of partners located in more than 120 countries around the world. Leica Geosystems is part of the Hexagon Group,
