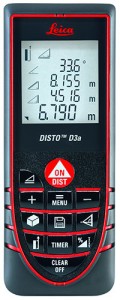

New: With a measuring accuracy of ± 1.0 mm, the Leica DISTO™ D3a offers high precision at the touch of a button. The large, illuminated display shows the measurement results and supplementary information clearly and legibly.
Smart Horizontal Mode™
Inclination measurement (± 45°)
Illuminated 4-line display
Multifunctional end-piece
Robust with IP54
Power Range Technology™
The new Leica DISTO™ D3a with Smart Horizontal Mode™ for precise measurements is the newly uprgraded multi-functional instrument combining accuracy and reliablity with software enhancements developed for more expensive instruments
Replacing the older Leica DISTO™ D3 the new unit offers even more features inside an updated ruggedized body able to withstand even the toughest conditions.
With a measuring accuracy of ± 1.0 mm, the Leica DISTO™ D3a offers high precision at the touch of a button and with the large, illuminated display the measurement results and supplementary information are clearly and legibly displayed.
Multiple functions
The Leica DISTO™ D3a can calculate rectangular and triangular areas, volumes, room dimensions and various types of Pythagoras functions. A time delay release and enough memory for up to 20 measurements round off the instrument’s wide range of functions – a concept designed to make your work life easier.
Multifunctional endpiece
Aim the instrument straight at the target point, whether measuring out of corners, slots or from edges: with this endpiece you are prepared for all measuring situations. The instrument detects the endpiece automatically, which helps you avoid expensive measuring errors.
Power Range Technology™
The integrated Power Range Technology™ makes measuring long distances very easy. You can measure up to 80 m without a target plate and even up 100 m with a target plate, without having to take single step.
Brilliant and clearly arranged display
The results are displayed on the large (2”), clearly arranged and high contrast display. At the touch of a button, the display makes supplementary information available about the measurements, e.g. indirect height, room dimensions, angle information or room angles.
Leica Disto D3a Delivery Package:
- Holster
- Hand loop
- 2 AAA batteries
- Target plate
- CD with manual / safety instructions
- Producer certificate M in accordance with DIN 55350-18-4.2.2
- Quickstart guide
| Features | Your advantages |
| Measuring range 0.05 to 100 m Typ. accuracy ± 1.0 mm |
Precise, quick and reliable measurements |
| Smart Horizontal Mode ™ | Determine precise horizontal distances at the press of a key |
| Tilt sensor | Measure angles up to ± 45° at the touch of a button |
| Flip-out end-piece with automatic detection |
Reliable, trouble-free and error-free measurement from edges or out of corners |
| Pythagoras functions | Indirect height and width measurements in inaccessible positions |
| Room dimensions | Values such as total wall length, wall and ceiling area are available at the touch of a button |
| Stake out function | Stake out equal or two different recurring distances |
| Triangle function | Determine the area of a many-cornered room efficiently |
Brouchure
Manuals
| Interior | Exterior | |||||||||
| Functions | DXT | D2 | D3a | D3a BT |
D5 | D8 | ||||
| Smart Horizontal Mode™ | • | • | ||||||||
| Min / max measurement | • | • | • | • | • | • | ||||
| Continuous measurement | • | • | • | • | • | • | ||||
| Addition / subtraction | • | • | • | • | • | • | ||||
| Area / volume measurements | • | • | • | • | • | • | ||||
| Pythagoras functions | • | • | • | • | • | • | ||||
| Room dimensions | • | • | • | • | • | |||||
| Horizontal distance | • | • | ||||||||
| Trapezium measurements | • | • | ||||||||
| Indirect measurements using tilt sensor |
• | |||||||||
| Line Levelling | • | |||||||||
| Technical Data | DXT | D2 | D3a | D3a BT | D5 | D8 | ||||
| Typical measuring accuracy | ± 1.5 mm | ± 1.5 mm | ± 1.0 mm | ± 1.0 mm | ± 1.0 mm | ± 1.0 mm | ||||
| Range | 0.05 – 70 m |
0.05 – 60 m |
0.05 – 100 m |
0.05 – 100 m |
0.05 –200 m |
0.05 –200 m |
||||
| Measuring units | m, ft, in | m, ft, in, yd | ||||||||
| Power Range Technology™ | • | • | • | • | ||||||
| Distance in m Ø of the laser dot in mm |
10, 50, 100 m 6, 30, 60 mm |
10, 50, 100 m 6, 30, 60 mm |
||||||||
| Tilt sensor Measuring range Accuracy to the laser beam Accuracy to the housing |
± 45° ± 0.3° ± 0.3° |
± 45° ± 0.3° ± 0.3° |
360° ± 0.1° ± 0.1° |
|||||||
| Units in the tilt sensor | 0.0°, 0.0% | 0.0°, 0.00% mm/m, in/ft |
||||||||
| 4-fold digital viewfinder | • | • | ||||||||
| Store constant values | 1 | 1 | ||||||||
| Memory recall | 10 | 10 | 20 | 20 | 20 | 30 | ||||
| Time delay release (timer) | • | • | • | • | • | |||||
| Display illumination | • | • | • | • | • | • | ||||
| Free software | • | • | ||||||||
| Data interface | Bluetooth (Class 2) |
Bluetooth (Class 2) |
||||||||
| Measurements per set of batteries |
up to 5,000 |
up to 5,000 |
up to 5,000 |
up to 5,000 |
up to 5,000 |
up to 5,000 |
||||
| Multifunctional end-piece | automatic | manual | automatic | automatic | automatic | automatic | ||||
| Tripod thread | • | • | • | • | ||||||
| Batteries | AAA 2×1.5 | AA 2×1.5 | ||||||||
| Protection class | IP 65 | IP 54 | IP 54 | |||||||
| Dimensions | 122×55 ×28 mm |
111× 42 × 23 mm |
127×49×27.3 mm | 143.5×55×30 mm | ||||||
| Weigh with batteries | 159g | 90g | 149g | 150g | 195g | 205g | ||||
Leica Disto D3a Demo Video
