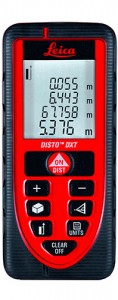

Leica Disto DXT Laser Distance MeterThe Leica DISTO™ DXT is the only laser distance meter, which is protected against jet water and is absolutely tight against dust – according to IP 65. This ensures, that it operates precisely, even at very unpleasant conditions.

Many manufacturers talk about robustness, only few go to such lengths as Leica Geosystems: The Leica DISTO™ DXT is the only laser distance meter which is protected against jet water, completely sealed against dust (IP65 Certified) and dropped from a height up to 2m to demonstrate its robustness.

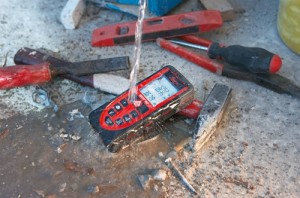

With its sealed and flat keypad, the device can be easily cleaned by holding it under running water. On the inside, it is strengthened with special fibreglass-reinforced plastic bracing. Thick rubber housing on the outside protects the module against possible damage in case it is dropped. These features make the Leica DISTO™ DXT the ideal measuring instrument for daily use on construction sites.


The Leica DISTO™ DXT has a number of other useful functions, such as continuous measuring with display of minimum and maximum, as well as fast area and volume calculators with additional information for wall and floor area or perimeter. Keys for subtraction and addition, as well as a Pythagoras calculation for indirect measuring are all there too. A memory for the last ten measurements completes the functionality of the device, allowing you to take several measurements before entering them into your plan.

It goes without saying, that distances can be measured precisely to an accuracy of 1.5mm with the Leica DISTO™ DXT; true to the Leica Geosystems standard, “when it has to be right”.

Another key feature is the proven multi-functional end piece with automatic position detection. Irrespective of whether measuring is carried out with the end piece in or out, the correct distance is automatically detected and displayed, avoiding tiresome measuring errors.

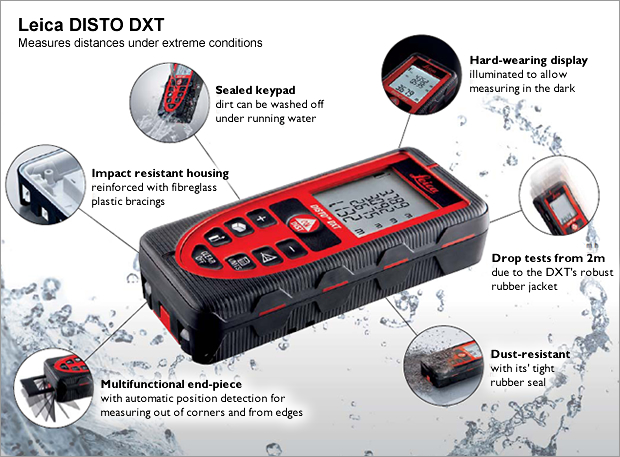

Leica DXT Extereme Conditions

Features Your advantages
Measuring range 0.05 to 70 m
Typ. accuracy ± 1.5 mm
Precise, quick and reliable measurements.
Sealed keypad For measurements in extremely dusty environments.
Easy to clean under running water.
Solid rubber housing Endures drop tests from 2 m height.
Hard-wearing, illuminated display Measured values can be read, even in the dark.
Flip-out end-piece with automatic detection Reliable, trouble free and error free measurement from edges or out of corners.
Minimum and maximum measurement function Horizontal and diagonal measurements, e.g. in corners.
Room dimensions Values such as circumference, wall area, floor or ceiling area are displayed at the touch of a button.
Continuous measurement Simple and quick staking out.
 IP65 Dust-proof and jet water protected

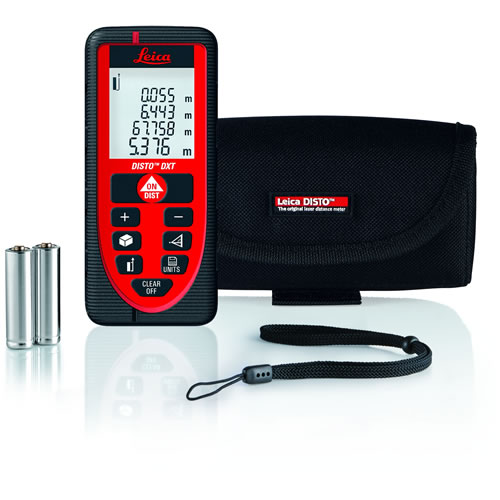

Leica Disto DXT Package:

  • 1 No. Leica DXT Laser Distance Meter
  • 1 No. Protective Holster
  • 1 No. Wrist Strap
  • 2 No. AAA Batteries
  • 1 No. Quick Start Guide
  • 1 No. CD with manual / safety instructions
