Bosch D-tect 120 Universal Detector

You are here: Home » Online Store » Detectors » Bosch D-tect 120 Universal Detector

Bosch D-tect 120 Universal Detector

 25,000  16,990

  Including GST.   Free Shipping.
Delivery within 2-3 business days.

Bosch D-TECT 120 Wall and Floor Detection Scanner
The Bosch D-tect 120 offers the reliability of radar technology to deliver accuracy on the job. The unit features Spot Detection technology that can detect objects instantly when placed on a wall, panel or floor.

  • SMART TECHNOLOGY: The Bosch D-Tect 120 Wall and Floor Detection Scanner features Spot Detection technology to accurately detect objects behind walls, floors, and panels.
  • ACCURACY: The D-Tect 120 never requires calibration so you can always feel confident with your reads and focus on the task at hand.
  • VERSATILITY: The detection scanner can identify objects in any direction. The D-Tect 120 offers three modes: drywall, universal, and concrete so you can detect “anything in anything”.
  • EASY-TO-USE: The wall and floor scanner is easy to use with it’s traffic light system: Green, nothing detected; orange, something is close; red, object detected.
  • PRECISION: Not only does the D-Tect 120 show you directly detected objects but also shows the direction of nearby objects with arrows.

Brand:
SKU: 06010813K0 Category: Tag:

Description

Key Features of Bosch D-tect 120 Professional Multi Material Scanner

Bosch D-TECT 120 Wall and Floor Detection Scanner
The Bosch D-tect 120 offers the reliability of radar technology to deliver accuracy on the job. The unit features Spot Detection technology that can detect objects instantly when placed on a wall, panel or floor.

A Detector That’s Easy to Use
The detector is easy to use in small spaces and features an ergonomic design. A “traffic light” makes detection easy to understand: Green, nothing detected; orange, something is close; red, object detected.

Don’t Worry About the Detector
Since the Bosch D-tect 120 never needs calibration, users can focus on their task without worrying about the detector. This saves time and increases productivity on the job.

One Detector, Many Jobs
Detection in any direction is a good thing ‒ it allows versatility. The Bosch D-tect 120 can be used in a variety of applications with three modes: drywall, universal and concrete.

Anything in Anything

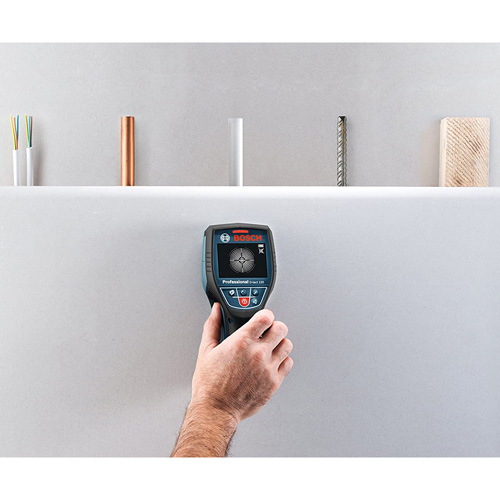

This device offers sound as well as light to show the user when something is detected behind a wall, panel or under flooring. It not only detects objects, but also indicates to the user, through arrows, the direction of nearby objects. Universal mode sees through more material, so it sees “anything in anything.”

Bosch Dtect-120 Detector Features

Specifications of Bosch D-tect 120 Detector

Detection depth, steel, max. 120mm
Detection depth, copper, max. 120mm
Max. detection depth 120mm
Detectable materials Water-filled plastic pipes, ferrous metals, non-ferrous metals, wooden studs, live cables
Detection depth of live cables, max. 60mm
Detection depth of wooden substructures, max. 38mm
Accuracy ±10mm
Automatic deactivation, approx. 5 minutes
Power supply 10.8 V Li-ion or 4 x 1.5 V LR6 (AA)
Weight, approx. 500g
Detection depths, max. (material) Plastic pipes (water-filled), 60, Copper wires (live), Ferrous metals, 120, Non-ferrous metals (copper)
Detection depths, max. (mode) Concrete, 120, Drywall construction, 60, Universal mode
Warranty One Year Warranty

Bosch D-tect 120 Scope of delivery:

  • Bosch D-tect 120
  • Carrying Pouch
  • Battery Adapter
  • 4 x 1.5 V LR6 (AA) batteries
  • User Manual
