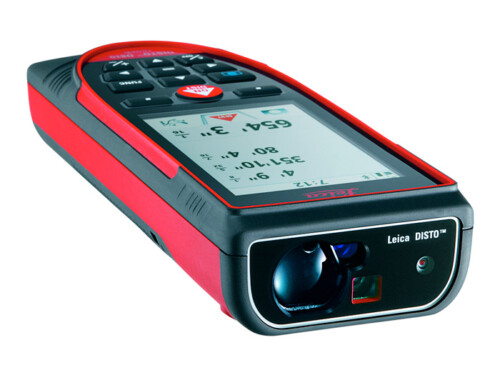

Leica Disto D810 – 200m Range


The Leica DISTO D810 touch is the world’s first laser distance meter with a touch screen and revolutionary “measure with a picture” feature. Due to the integrated camera it is also possible to take pictures and download them with the USB-interface to a computer. The high functionality is perfectly completed by the smart free app “Leica DISTO™ sketch”. The smartest solution for measuring and documentation!

  • Measuring Range: 0.05m – 200m both indoors and outdoors, even in bright sunshine
  • Measuring Accuracy ± 1mm (ISO 16331-1 certified)
  • Digital Pointfinder / Viewfinder with 4x zoom, Overview camera
  • Precise 360° tilt sensor
  • Bluetooth® Smart for data transfer to iPad, iPhone, Windows and Android
  • IP54 dust and splash water protected
  • Power Range Technology
  • 3.2″ Large illuminated coloured touchscreen display
  • Automatic detection of multi-functional end-piece position.
  • Measure with a picture, Hieght Tracking
  • Smart Horizontal Mode™
  • Rechargeable Li-Ion battery
  • FREE Leica DISTO Sketch app
SKU: 792297 Category: Tag:


Key Features of Leica Disto D810 touch Laser Measurer

Handheld laser measuring tools have become a standard for architects, carpenters, surveyors and many other users in the construction and building industry. Today they frequently need to obtain distances, heights, areas and volumes quickly and react instantly on design changes. The new Leica DISTO D810 touch is the perfect tool to measure precisely, verify dimensions and document by taking on-site pictures with the integrated camera.

Take site documentation to the next level! With the Leica Laser Distance Meter DISTO™ D810 touch you are able to take photos or screenshots and download them via USB to your computer. With its Bluetooth® Smart interface the Leica DISTO™ supports the latest Leica DISTO™ sketch app version 2.0. It transfers measuring data to the cursor positions in any iOS or Windows 8 program without the need of installing any extra software.

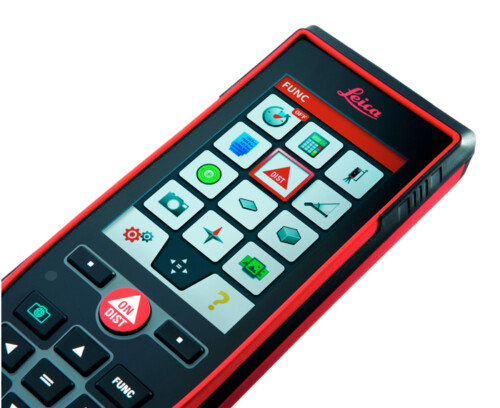

Simply touch-it!
The Laser Measuring Tape Leica DISTO D810 touch is equipped with a large touch screen for quick and intuitive operation. Using Common gestures such as swipe and zoom with two fingers can be used and hereby all functions are simply and easily accessible and measurements can also be taken using the touch screen, which avoids moving the Leica DISTO™ D810 touch during the measurement.

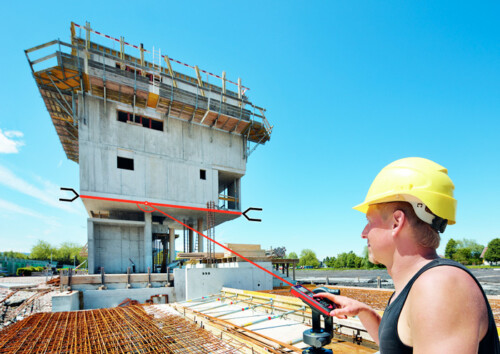

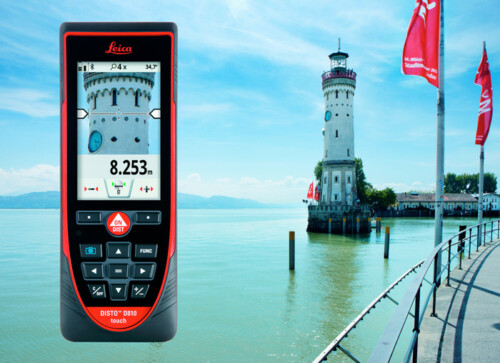

Revolutionary – Measure with a picture
It has never been easier to obtain the width, height, area or even the diameter of an object. One measurement at right angles to the object is all it takes. Then the desired dimension is marked using two arrows in the picture and the measured value appears in the display. In addition to the zoom on the Pointfinder, an overview camera is available for large objects.

Never loose sight – Documentation using pictures
The camera function of the Leica DISTO™ D810 touch can be used to create pictures or screen shots for recording purposes and can be downloaded to a computer via the USB interface. No details are lost concerning the measured target points.

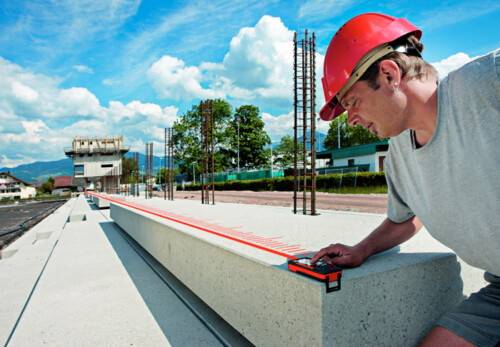

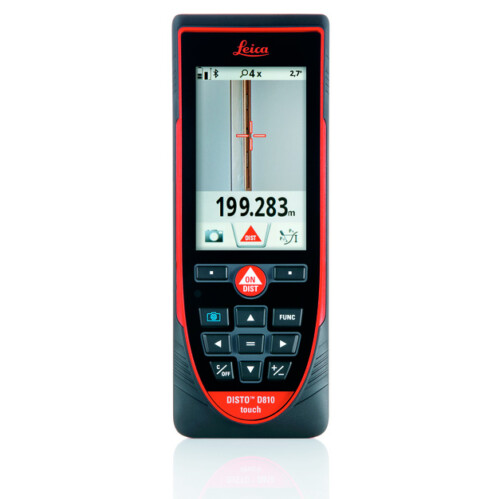

Simple and Precise Targeting – Pointfinder with Overview Camera and 4X Zoom
With the integrated digital Point-finder, the Leica Distometer DISTO D810 touch easily and accurately takes measurements in unfavorable light conditions. The implemented overview camera provides excellent overview or the measurement target, in a second step the target can be zoomed in four stages with the 1x, 2x and 4x zoom. Even when laser point is no longer visible to the naked eye, the target can be seen perfectly on the large, high resolution display of the Leica DISTO™ D810 touch.

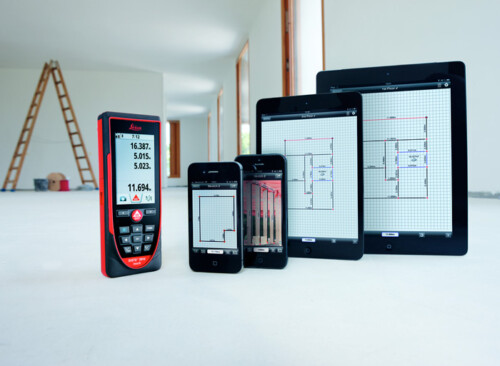

Quick Sketching on the Job Site – Bluetooth® Smart with App
The latest “Leica DISTO™ sketch” app is the ideal link between the Leica DISTO™ D810 touch and a smartphone or tablet. Create easily scaled sketches, dimension objects in a photo and check drawings with the app. It is possible to integrate detailed sketches in an existing plan view. This allows you to have all the information together in a single document. The files can be sent by e-mail directly to the office.

Flexible data transfer
In keypad mode, you can link your Leica Distancemeter DISTO D810 touch to your computer and send measured values in the form of a keyboard entry to any program. This provides a high degree of flexibility.

Proven accuracy and quality from Leica Geosystems
The Leica DISTO™ D810 touch laser tape offers all these features combined with a measuring range up to 200m and a measuring accuracy of ±1mm according to ISO standard 16331-1. “PROTECT by Leica Geosystems” and the option to register the tool give additional safety. With the registration the no cost period is extended from 2 to 3 years.

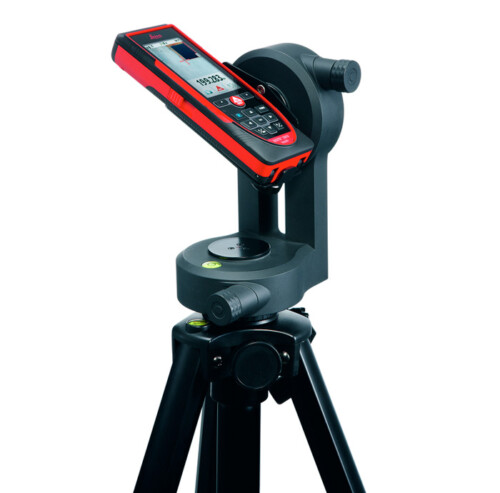

Optional Smart accessory for highest precision – Tripod adapter FTA360 with fine drive
The robust tripod adapter FTA360 with fine drive guarantees a convenient and precise targeting with the Leica DISTO™ D810 touch. The adapter eases the task of targeting over long distances and increases the accuracy when taking indirect measurements.

Specifications of Leica Disto D810 Touch Laser Distance Meter

Minimum Measurement 0.05m / 0.16ft
Maximum Measuring Range 200m / 660ft
Measuring Accuracy ±1mm (ISO 16331-1 certified)
Measuring Units m, ft, in
Power Range Technology
Tilt sensor measuring range  360°
Accuracy to the laser beam  – 0.1° / + 0.2°
Accuracy to the housing  ± 0.1°
Units in the tilt sensor  0.0°, 0.00%
mm / m, in / ft
Pointfinder with 4x zoom
Overview camera
Picture file format  .jpg
Memory 30 Points Memory
Memory for pictures 80 Photos
Time delay release (timer)
Display Illumination
Free software for Windows
Free App iOS / Android
Data interface Bluetooth® SMART
Measurements per set of batteries up to 4,000 Measurements Reduced in Bluetooth® mode
Service life of battery up to 8 hours Reduced in Bluetooth® mode

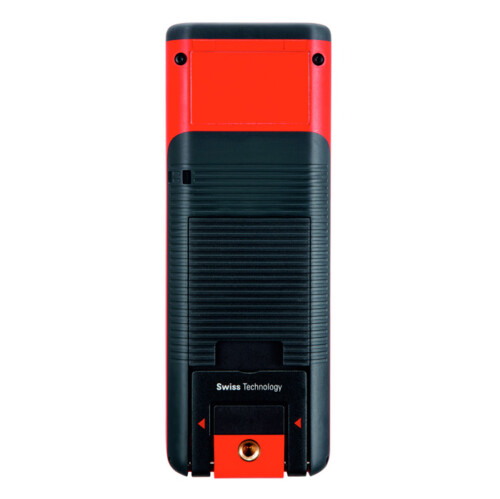

Multifunctional end-piece
Tripod thread
Batteries Li-ion rechargeable
Charging time 4 Hours
Protection class IP54
Dimension 164 × 61 × 31 mm
Weight with batteries 238g
Laser Class 2
Warranty Full Three-Year Replacement Warranty.
Country of Origin Austria

Functions of Leica Laser Distance Meter Disto D810 touch

Distance measuring Yes
Min/Max measuring Yes
Permanent measuring Yes
Stake out Yes
Addition/Subtraction Yes
Area Yes
Triangle area Yes
Volume Yes
Trapezium Yes
Painter function (area with partial measurement) Yes
Pythagoras Yes, 2-point, 3-point
Smart Horizontal Mode / Indirect height Yes
Height-profile measurement Yes
Level Yes
Sloped objects Yes
Height tracking Yes
Illuminated colour display Yes
Personalized Favorites Yes
Long Range Mode Yes
Calculator Yes
Photo/Screenshot Yes
Compass Yes
Gallery with USB download Yes
Diameter Yes
Width Yes
Area from Photo Yes

Videos of Leica Disto D810 Touch Laser Distance Meter

Frequently Asked Questions (FAQs) – All About Leica DISTO D810 Touch Laser Measuring Tape

The integrated digital Pointfinder in the device has an overview camera and additional 1x, 2x and 4x zoom. You can see in the middle of the status bar of the screen,  which zoom level you have selected. To change from one zoom level to the next one you have to press the “up/down arrow keys” or you zoom in on the touchscreen as you are used on mobile phones.
Yes, it is possible to take photos and screenshots. The photos taken have a resolution of 800 x 600 pixels and screenshots have a resolution of 240 x 400 pixels. The photos and screenshots are save in jpg format.
Photos and screenshots can be downloaded to a computer via USB interface. The DISTO™ will be automatically connected (plug and play). It is now possible to download data from the DISTO™ by using of a file manager like the Windows Explorer.
Please note: It is not possible to upload data to the DISTO™ and it is not possible to delete files from the computer. Deleting files must be directly done in the DISTO™ Gallery function.
Yes, when turning the digital Poinfinder on it is indicated in the display that you can change the brightness with the left and right arrow keys on the keypad.
It is the parallax effect due to the distance between the laser window and the digital Pointfinder optics. This effect occurs only when the digital Pointfinder is used on targets below 10m.
In this case the laser dot appears displaced in reference to the crosshair. This is not an error !
For distances below 10m please rely on the real laser dot.
The accuracy of the tilt sensor in the device is ±0.1° to the housing of the device. To the laser beam the maximum deviation can be up to -0.1° and +0.2°. This applies at room temperature (20°C – 30°C). At any other temperatures the maximum deviation increases by ±0.1°.

You can set the Leica DISTO™ D810 touch to use different tilt units. Select in the settings “Units inclination” and choose between ° , %, in/ft and mm/m.

-> The level function in the right hand top corner of the display can also be switched on/off in the settings “level”. It is always set to 0.0° and can not be changed into a different unit for tilts.

The integrated tilt sensor in the Leica DISTO™ D810 touch functions in the range 360° and at a transverse tilt of < ±10°. If the device is held at > ±10° transversely, the info code “i156” appears in the display and indicates that the device is tilted too much.

You can recalibrate the zero level of the integrated tilt sensor. In the settings choose the icon for calibration. When you select calibration you will be guided through the process.

Please follow this procedure to recalibrate:

1) Lay the unit down on a flat surface. The side with the typelabel should be down on the table.
2) Carry out the first measurement by pressing “ON/DIST” key on a level surface. The device confirms the measurement.
3) Turn the device horizontally by 180° and place it again on absolutely flat surface with the typelabel side down.
4) Carry out the second measurement by pressing “ON/DIST” key on a level surface. The device confirms the measurement.
5) Pick the unit up and then place it the laser facing up on an absolutely flat surface.
6) Carry out the third measurement by pressing “ON/DIST” key on a level surface. The device confirms the measurement.
7) Keeping the laser up on the flat surface, rotate the device horizontally by 180° while keeping it in the same location on the flat surface.
8) Carry out the fourth measurement by pressing “ON/DIST” key on a level surface. The device confirms the measurement.
9) After 2 Sec. the device goes back to the basic mode and you have completed the calibration procedure.

Please note: The calibration process can be proceeded by placing the unit with the lens up or down to the surface. A better accuracy in the calibration procedure is achieved having the back of the unit down on the surface and the lens up.

Yes, it is possible to obtain detailed information in the Leica DISTO™ D810 touch. If detail information is available this will be indicated with two small arrows in the center of the status bar in the display. You can now navigate with the arrow keys up and arrow key down between the available measurements.
The accuracy highly depends on how the function is used. Best results can be achieved when the measuring object is displayed maximum size at the DISTO™. In such case the accuracy is below 1% of the measured object. This applies for width, area and diameter measurements.

Leica Tripod TRI100
For long distances we recommend using a tripod, even indoors. A tripod provides additional steadiness and therefore allows accurate targeting, especially over long distances. We particularly recommend the Leica TRI100 tripod.
Please note: When using the tripod with its standard tripod head you need to change the measuring reference on the Leica DISTO™ to the tripod thread (in the setting).

Leica Tripod TRI70
For long distances we recommend using a tripod, even indoors. A tripod provides additional steadiness and therefore allows accurate targeting, especially over long distances. We particularly recommend the Leica TRI70tripod in combination with the FTA 360 and TA360 adapter.

FTA360 Adapter
In order to achieve higher accuracy we are offering the tripod adapter FTA 360 with fine adjustment for convenient and accurate aiming. This adapter is designed to be used as a tripod head (TRI 100 and TRI70) or can simply be placed on a flat ground.
A major benefit of the FTA360 adapter is that you can fix your Leica DISTO™ exactly that way that the tripod tilt and rotating axis and the instrument laser axis meet exactly in one point. This allows to do exact measurements even when turning the unit horizontally. The adapter can be used with the Leica DISTO™ D510 (an offset of -0,065m (-2 9/16 in) needs to be entered in the D510 device) and the Leica DISTO™ D810 touch. (you can select the adapter in the Reference options of the D810 touch).

Target Plate
For measurement especially outdoors and in very bright conditions it is very helpful to use a target plate. We offer different versions in our accessory range.

No, the integrated tilt sensor only measures vertical angles. If the device is held at a transverse tilt angle greater than ±10° the display shows an info code “i156”, which means that the device is required to be held level (transversely).

For example, if a distance of 10m is measured at an angle of 10°, the error on uncertainty on measurement on the direct horizontal distance (fd) is 3mm.

-> in order to have best results with the direct horizontal distance measurements, considering the deviation of the tilt sensor, use the Leica DISTO™ D810 touch as flat as possible.

The horizontal distance error (fd) and the height error (fh) can be calculated as follows:

fd = horizontal distance error
fh = error in height
d = measured distance
a = angle at which the distance is measured
fa = possible angular error

fd = d * cos (a) – d * cos (a + fa)
fh= d * sin (a) – d * sin (a + fa)

Further information and a table of measuring accuracies you can find online in the FAQ under “Measuring Accuracy”.

Yes, the memory in the device can be erased by pressing the delete button when in the memory. All memory values will be deleted.

Yes, in the “Settings” you can go to the “Offset Icon” and enter a value that will constantly be added / subtracted from your measured distance value. If an offset value is entered you will see the adequate symbol – a triangle with plus or respectively minus next to the laser symbol.

-> If you want to set the offset value back to zero, enter the setting “Offset” and reset it.

For long distances under unfavorable conditions (e.g. long distances and very bright sunlight) we recommend to use the special integrated Long Range (LR) Mode . To select the mode please enter the menu and select the “LR Mode”. If the “LR Mode” is turned on in the menu you will see the letter “LR” right next to the laser symbol. This mode will allow you to make measurements that were not possible before because most of the time you would receive the info code “i255” (too less signal). When using this special Long Range (LR) Mode the measuring time increases (it may take up to 7sec). For stability it is recommended to use a tripod when having the Long Range (LR) Mode turned on.
When using the digital Pointfinder in any function, especially in the Long Range (LR) Mode, you will see a clock icon on the top of the display. The clock stays in the display until the measurement is finished. Please do not move the device before!
Our standard warranty of 2 years can be extended by one additional year if you register your device on our website www.disto.com within eight weeks of the purchase date. If the product is not registered, a two year warranty applies.
This is a message code. The numbers are displayed if a successful measurement could not be performed. The user itself can correct the measuring situation to achieve a measurement. Below you can find the spread sheet from the manual with the corrections:

Error No. Cause Correction
156 Transverse tilt greater than 10° Hold the instrument without any transverse tilt
162 Calibration mistake Make sure, the device is placed on an absolutely horizontal and flat surface. Repeat the calibration procedure. If the mistake still occurs, contact your dealer.
204 Calculation error Perform measurement again.
252 Temperature too high Let device cool down.
253 Temperature too low Warm device up.
255 Received signal too weak, measuring time too long Change target surface (e.g. white paper).
256 Received signal too high Change target surface (e.g. white paper).
257 Too much background light Shadow target area.
258 Measurement outside of measuring range Correct range.
260 Laser beam interrupted Repeat measurement.

To activate the keypad lock, choose in the settings the lock icon and turn the keypad log on. To deactivate the keypad lock, press ON/DIST key and within 2 sec the plus/minus key.
To deactivate the keypad lock press the ON/DIST key and afterwards (within 2 Sec.) the plus/minus key. Now the keypad lock is deactivated and the device is switched on.
The measuring reference has to be adjusted to the tripod thread. In the Function Screen choose the reference icon and change the measuring reference to tripod. After switching off the device goes back to the standard setting (rear of device).

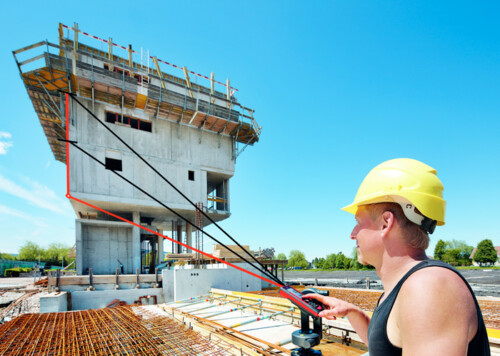

The height tracking displays an indirect height. The combination of inclination and distance measuring to the wall opens the possibility for such an indirect calculation. It is a useful function if the height cannot be measured directly or if several height points on the same vertical line need to be measured.
When products and services meet our expectations, we tend to take this for granted and be unaware of the role of standards. However, when standards are absent, we soon notice. We care when products turn out to be of poor quality or are unreliable or dangerous. An ISO Standard ensures consistent quality and reliability for a product.
The range and accuracy of laser distance meters depend greatly on lighting conditions and the reflective properties of the target object. For Leica Geosystems it is important that the performance of the device is maintained not only in the test laboratory but even more so on everyday site tasks. Therefore we have worked with external experts to develop a global standard to test and specify laser distance meters and allow comparisons between devices of different manufacturers. Instruments tested in accordance with ISO 16331-1 achieve their promises. Further information can be found on our website: www.disto.com.
Press the left or right top key for about 2 sec.. An overview (“Favorites”) with all functions appears on the display. Choose the preferred function and press then the left or right top key where you want to have the favorite behind. The favorite is now saved.
The Leica DISTO™ D810 touch has Bluetooth® SMART (also called low energy) integrated. The device is working with Smartphones or tablets that have Bluetooth® 4.0 integrated or are Smart Ready. Also it is required that its operating system is supporting this Bluetooth® standard which is the case for iOS, Android 4.3 or newer, Windows 8.
Yes with the Leica DISTO™ D810 touch it is possible to communicate with Apple mobile devices. Send measurement data to iPhone (iPhone 4S, iPhone 5, iPhone 5s, iPhone 5c), iPad3, iPad 4, iPad mini, iPod touch (Gen. 5). (–> Bluetooth® 4.0)
It is possible to use DISTO™ supporting apps from the app store (use App mode in DISTO™ device) or to connect the DISTO™ in the Bluetooth manager as a keyboard device where you can send the measurement data to the cursor position in any app (use text or spreadsheet mode in DISTO™ device).
The corresponding modes in the DISTO™ device needs to be set in the Setting menu of the DISTO™.
Yes with the Leica DISTO™ D810 touch it is now possible to communicate with Android devices. Its operating system must be 4.3 or higher. Send measurement data to Android devices that include Bluetooth 4.0. Used Apps should support the corresponding Bluetooth® standard (e.g. Leica DISTO™ sketch).
Yes with the Leica DISTO™ D810 touch it is possible to transfer data to Windows computers. The Leica DISTO™ D810 touch is “treated” as a keypboard. For this add the DISTO™ in the device manager as a keyboard device. You can then send the measurement data from the DISTO™ to the cursor position in any program (use text or spreadsheet mode in DISTO™ device).
The corresponding modes in the DISTO™ device needs to be set in the Setting menu of the DISTO™.
The Windows computer must have the operating system Windows 8 or higher and Bluetooth 4.0.
Yes, this can be changed. In the settings menu for Bluetooth® press the right selection key to enter a submenu for Bluetooth setting. Here you can change the setting for this.
Please note: This setting can only be changed in the text or spreadsheet mode.
Yes, this can be changed. In the settings menu for Bluetooth® press the right selection key to enter a submenu for Bluetooth setting. Here you can change the setting for this.
Please note: This setting can only be changed in the text or spreadsheet mode.
Yes, this is possible. When you have connected your DISTO™ device with a smartphone or tablet or computer the content of the selection keys change for supporting the Bluetooth communication. With the left selection key you can switch on and off the navigation function where you can use the arrow keys of the DISTO™ for navigation.
Please note: This function is available in the text or spreadsheet mode. In the app mode it depends on the support of the app used.
In the text mode the measurement result will be transferred as shown in the DISTO™ display. This includes units or fractions for feet and inch. In the spreadsheet mode only numbers are transferes without any unit information. Units with fractions will be converted to the corresponsing unit with decimal. This makes further calculations like e.g. in Excel much easier.
This depends from the used charger. With the charger out of the scope of delivery it takes approx.. 4 hours to charge the Li-ion battery.
The Li-ion battery can be replaced in service cases only. Please contact your dealer for a replacement set of the Li-ion battery.
Yes. Leica Geosystems offers an App DISTO™ sketch. This App is available for iOS on iTunes and for Android on Google play.
