Leica Disto X3 – 150m Range

 25,000  15,990

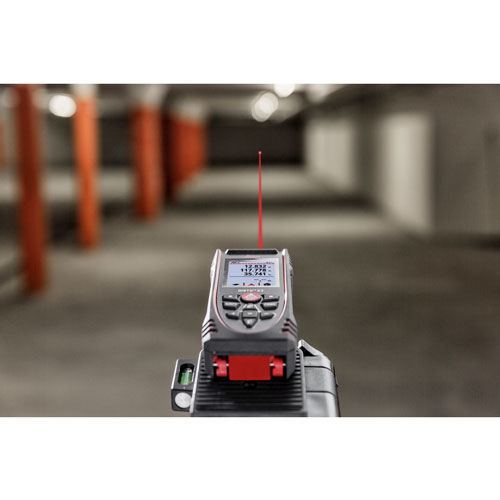

The rugged Leica DISTO X3 combines innovative measuring technologies with a site-proof design and simple user interface. Together with the Leica DST-360, the X-series can be turned into a powerful 3D capturing station. The display automatically rotates in line with the orientation of the device.

  • Measuring Range: 0.05m – 150m
  • Measuring Accuracy ± 1 mm (ISO 16331-1 certified)
  • IP65 – 100% water jet protection and dust-tight
  • X-Range Power Technology
  • Measuring Units m, in, ft & 20 Points Memory
  • Automatic multi-functional end piece for measuring from corners
  • Large 2″ colour display screen & Bluetooth Smart
  • P2P technology – distance and area measurements from one position – *DST 360 adapter required
  • Leica DISTO™ Plan – smart measurement documentation
Brand:
SKU: 850833 Category: Tags: ,

Product Description

Key Features of Leica DISTO™ X3 – Designed for tough, rugged conditions

The new Leica DISTO X3 combine innovative distance measurement technologies with a site-proof design. These laser distance meters withstand drop tests from 2 meters and are dust- and water-protected to IP 65 standards. This makes them suitable for tough, everyday job site conditions. In combination with the Leica DST 360 adapter these laser distance meters allow for Point-to-Point measurements and all measured data is easily documented and visualized with the Leica DISTO™ Plan app.

Tough
The casing and keypad are especially protected against dust and water to achieve the requirements of IP 65 protection. This means that the Leica DISTO X3 and X4 can be cleaned under running water. Special bracing made from fiberglass-reinforced plastic strengthens the device inside and solid rubber components protect the sensitive measuring elements against drop-damage. All these features make the Leica DISTO X3 and Disto X4 ideal for daily construction site work.

Rotatable display
The display automatically rotates in line with the orientation of the device; meaning you can easily read the screen from any angle.

P2P technology – distance and area measurements from one position
The DST 360 adapter is a great addition for the Leica DISTO X3 and Leica Disto X4. It transforms the hand-held tool into a sturdy measurement station allowing for precise distance measurements between any two points. In combination with the Leica DISTO™ Plan app, floorplans are easily created and can be further processed in CAD.

Leica DISTO™ Plan – clever measurement documentation
The new DISTO™ Plan app assists with the vital tasks of documenting and visualising measurements. Fingers can be used to sketch a floor-plan on a smartphone or tablet and corresponding measurements are easily assigned to each line of the plan. The app then automatically creates a scaled floorplan. Alternatively, the innovative Smart Room functionality in combination with a newly integrated sensor in the Leica DISTO X3 and Disto X4 makes it possible to create accurate floor plans simply by taking clockwise or counter-clockwise measurements of a room.

All measurements and floorplans can be exported as a CAD drawing or in a PDF format. The new app supports all Leica DISTO™ devices with Bluetooth® functionality.

Leica Disto X3 Features Minimum / maximum measurement function

Minimum / Maximum Measurements

The maximum measurement is very helpful, e.g. for finding out the room diagonal. The minimum measurement can be used to measure at right angles to a wall.

Leica Disto X3 Fetures Area and volume measurement functions

Area and Volume Measurements

With only two or three measurements, you can quickly and precisely calculate the area of a ceiling, floor or wall, or the volume of a room. No need to note down the individual values! The result is calculated automatically and shown on the display.

Leica Disto X3 Features Painter function

Painter Function
With this function you can determine e.g. the total wall area of a room without having to note down any intermediate results. Simply measure the lengths of the walls, which you can add or subtract as required. Finally measure the room height, which is then automatically multiplied by the previously calculated value.

Leica Disto X3 Features Stake-out function

Stake Out Function
One or two different distances (a and b) can be entered into the device and then used to subtract from defined measured lengths. The display always shows the current stake-out distance and a direction arrow. At a distance of 0.1 m to the next stake-out point, an acoustic signal sounds.

Leica Disto X3 Features Pythagoras functions

Pythagoras Functions
Using the tripod, you can measure distances indirectly, horizontally and vertically. The Leica DISTO™ calculates the result automatically for you from three measurements. Functions such as automatic minimum and maximum measurements help you to measure the right point.

Partial heights, e.g. balcony or window heights, are determined by Pythagoras.

Leica Disto X3 Smart Horizontal Mode

Smart Horizontal Mode
The desired horizontal distance is determined using the tilt measurement, even if the object cannot be directly targeted horizontally. This function is very helpful, e.g. if walls, hedges or people are between the instrument and the target.

Specifications of Leica Disto X3 Laser Distance Meter

Minimum Measurement 0.05m / 0.16ft
Maximum Measuring Range 150m / 500ft
Measuring Accuracy ±1mm (ISO 16331-1 certified)
Measuring Units m, ft, in
X-Range Power Technology Yes
Tilt sensor Yes
Tilt sensor accuracy to the housing ± 0.2°
Smart Base measuring range
Horizontal
Vertical
360° for use with Leica DST 360
-64° to > 90° for use with Leica DST 360
Typ. tolerance of the P2P function for use with Leica DST 360 ±2mm at 2m, 5mm at 5m, 10mm at 10m
Levelling range 5° for use with Leica DST 360
Memory of last measurement 20
DISTO™ transfer for Windows Yes
DISTO™ Plan app for iOS and Android Yes, includes in app purchases
Smart Room function support Yes
General data interface Bluetooth® Smart
Data interface for 3D point data Bluetooth® Smart
Measurements per set of batteries up to 4,000 Measurements Reduced in Bluetooth® mode
Service life of battery up to 8 hours Reduced in Bluetooth® mode
Multifunctional end-piece Yes
Tripod thread Yes
Batteries type AA 2 × 1.5 V
Protection class IP65
2m drop tested Yes
Dimension 132 × 56 × 29 mm
Weight with batteries 184g
Laser Class 2
Warranty Full Three-Year Replacement Warranty.
Country of Origin Hungary

Functions of Leica Laser Distance Meter Disto X3

Distance measuring Yes
Min/Max measuring Yes
Permanent measuring Yes
Stake out Yes
Addition/Subtraction Yes
Area Yes
Room angle Yes
Volume Yes
Painter function (area with partial measurem.) Yes
Pythagoras Yes, 2-point, 3-point
Smart Horizontal Mode / Indirect height Yes
Level Yes
Memory Yes
Beep Yes
Illuminated colour display Yes
Bluetooth® Smart Yes
Personalized Favorites Yes
Timer Yes
Point to point function/ distance Yes*
Smart Area Yes*

*In combination with Leica DST 360 adapter

Videos of Leica Disto X3 Laser Distance Meter

Download Leica Disto – Lino Family Brochure

Download Leica Disto X3 User Manual
