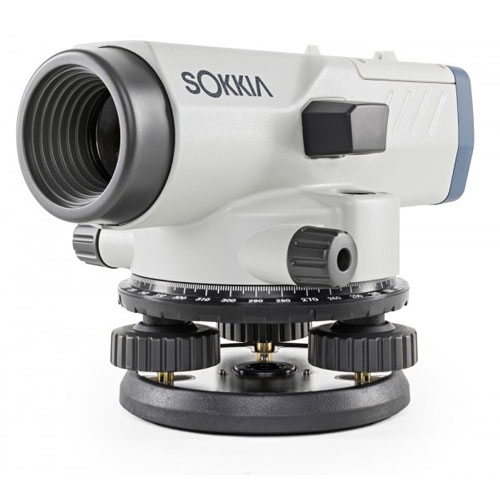

Key Features of Sokkia B40A Automatic Level
Rapid, Stable, and Durable Compensator
The compensator of Sokkia B40A Optical Level incorporates four suspension wires made of super-high-tensile metal that features minimal thermal expansion coefficient, providing unmatched durability and accuracy. Finely tuned magnetic damping system quickly levels and stabilizes the line of sight despite the fine vibrations present when working near heavy equipment or busy roadways.
20cm (7.9 in.) – Ultra-Short Minimum Focus
Sokkia Auto Level B40A can focus on objects at 20cm (7.9 in.) in front of the telescope. This feature dramatically facilitates the works in confined spaces.
Horizontal Circle for Angle Measurement
Horizontal angles can be directly read in 1° or 1gon units. Free rotation feature allows you to read any angle from zero.
With the IPX6 rating, the instrument is protected against powerful water jets from all directions, meaning Sokkia Level B40A withstands a sudden shower or torrential rainfall.
The advanced protection design also deters clouding or condensation inside the telescope.
Ultimate Environmental Performance and Durability
SOKKIA has been performing environmental tests against a set of expected job site conditions to certify the products for long term use. The B Series has been tested by special inspection equipment for complete waterproofness. The B Series also has the highest environmental performance and durability in SOKKIA’s Auto Level history, proven by tests against temperature, humidity, vibration and drop.
Water Proof Test (IPX6)
The B Series is proven to withstand powerful water jets from all directions without any submergence inside the unit.
Cold and Heat Resistance Test
The B Series has passed operating temperature tests from -20 to +50 degree.
The B Series has passed strict durability tests including rotation of the leveling foot screw, Focusing knob and Horizontal fine motor screw.
Sokkia B40A Auto Level Technical Specifications:
|Model ||Sokkia B40A |
|Length ||214mm (8.42in.) |
|Magnification ||24x |
|Objective Aperture ||32mm (1.26 in.) |
|Resolving Power ||4″ |
|Field of View |
|1°25’ (2.5m / 8.2ft.) |
|Minimum Focus ||0.2m (7.9 in.) from end of telescope |
0.3m (1ft.) from instrument center
|Image ||Erect |
|Stadia Constant ||0 |
|Stadia Ratio ||100 |
|Focusing Knob ||1-speed |
|Sighting Aid ||Gun Sight |
|Accuracy (1km double run leveling) |
|Without Micrometer ||2.0mm (0.08 in.) |
|With Micrometer ||n/a |
|Type ||Pendulum compensator with magnetic damping system |
|Setting Accuracy ||0.5″ |
|Working Range ||±15′ |
|Circular Level |
|Sensitivity ||10′ / 2mm |
|Horizontal Circle |
|Diameter ||99mm (3.9in.) |
|Minimum Division ||1°/ 1gon |
|Water Resistance ||IPX6 (IEC 60529:2001) |
|Operating Temperature ||-20 to +50ºC (-4 to +122°F) |
|Size Width x Length x Height ||122mm (4.8in.) x 214mm (8.4in.) x 140mm (5.51in.) |
|Weight ||1.5kg (3.3lbs.) |
Sokkia B40A Optical Auto Level Scope of delivery
- Sokkia B40A Auto Level
- Adjusting pins
- Cleaning cloth
- Lens cap
- User manual
- Hard carrying case
