Leica Disto D2 – 100m Range

Leica Disto D2 – 100m Range

 12,490

The new Leica DISTO D2 laser measuring meter is very compact but still powerful. It enables measurements up to 100m at highest precision. A great set of functions like the well-established foldable end-piece with automatic recognition of its position makes the DISTO™ D2 very versatile for many applications. With Bluetooth® Smart it is easy to generate professional documentation which makes communication of your measured data to others very clear and easy understandable.

  • Measuring Range: 0.05m – 100m
  • Measuring Accuracy ± 1.5mm (ISO 16331-1 certified)
  • Bluetooth® Smart for data transfer to smart phones and tablets
  • IP54 dust and splash water protected
  • X-Range Power Technology

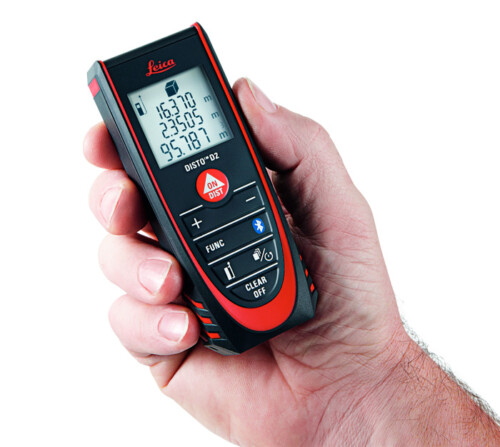

  • Clear, illuminated 3 line display
  • Automatic detection of multi-functional end-piece position.
  • Quick, simple distance, area and volume measurement
  • FREE Leica DISTO Sketch app
  • 3 Years Replacement Warranty by Leica Geosystems.
Brand:
SKU: D2NEWFBA Category: Tag:

Description

Key Features of Leica Disto D2 Laser Measurer

Due to the latest measurement technology the Leica DISTO D2 achieves a range of 100 m. With Bluetooth® Smart the measurements can be transferred immediately to smartphones or tablets. Sensors in the flip-out end-piece enable the automatic detection of the end-piece position.

Measure precise and long distances in accordance with ISO 16331-1

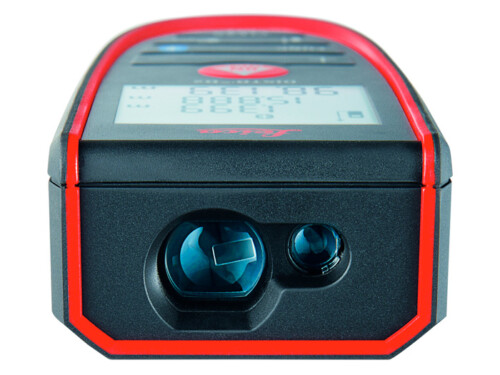

With the help of the innovative X-Range Power technology this small handheld laser distance meter device can measure long distances of up to 100m. In addition, this technology ensures optimum measuring performance, i.e. fast and reliable measurements.

Bluetooth® Smart – Error-free data transfer

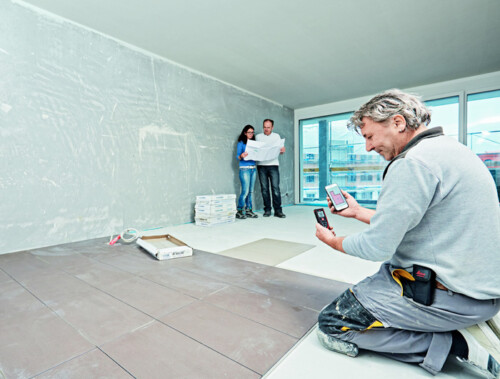

The latest DISTO™ sketch App is the ideal link between the new Leica DISTO D2 digital distance meter, a smartphone or tablet and new the Apple Watch. With this App you can prepare layouts and drawings, and dimension precisely. Also many 3rd party Apps are supported by the new Leica DISTO™ D2.

Versatile thanks to useful measuring functions
Functions such as addition and subtraction, area and volume calculations make every measurement task child’s play. The instrument stores the last 10 measurement results.

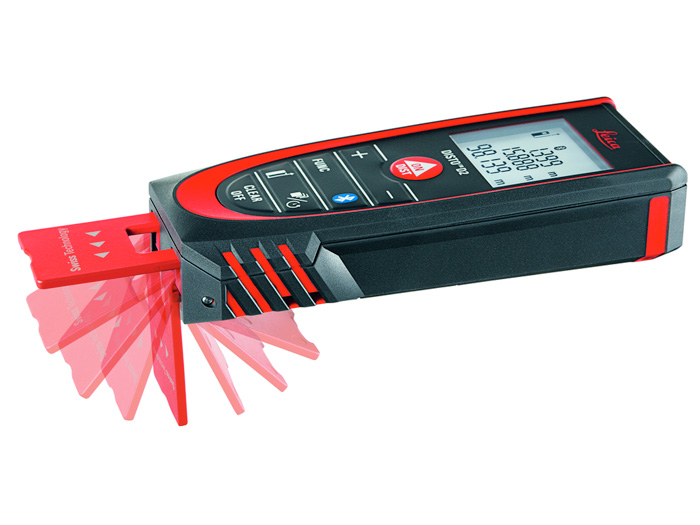

Multi-functional end piece
Whether you are taking measurements from corners, grooves or edges, with the multifunctional end piece you can always accurately position the Leica DISTO D2. The position of the end piece is automatically detected and taken into account. This prevents expensive measuring errors.

Versatile thanks to useful measuring functions
Functions such as addition and subtraction, area and volume calculations make every measurement task child’s play. The instrument stores the last 10 measurement results.

Specifications of Leica Disto D2 Laser Distance Meter

Minimum Measurement 0.05m / 0.16ft
Maximum Measuring Range 100m / 330ft
Measuring Accuracy ±1.5mm (ISO 16331-1 certified)
Measuring Units 0.1mm / 1/32in
Measuring Units m, ft, in
X-Range Power Technology
Memory 10 Points
Time delay release (Timer)
Display Illumination
Free software for Windows
Free App iOS / Android
Data interface Bluetooth® SMART
Measurements per set of batteries up to 10,000 Measurements Reduced in Bluetooth® mode
Service life of battery up to 20 hours Reduced in Bluetooth® mode
Multifunctional end-piece
Batteries type AAA 2 × 1.5 V
Protection class IP54 dust and splash water protected
Dimension 116 x 44 x 26 mm
Weight with batteries 100g
Laser Class 2
Warranty Full Three-Year Replacement Warranty.
Country of Origin Hungary

Functions of Leica Disto D2 Laser Distance Meter

Distance measuring Yes
Min/Max measuring Yes
Permanent measuring Yes
Stake out Yes
Addition/Subtraction Yes
Area Yes
Volume Yes
Painter function (area with partial measurem.) Yes
Pythagoras Yes, 2-point, 3-point

Disto D2 Intro Video

Frequently Asked Questions (FAQs) – All About Leica DISTO D2 Laser Measuring Tape

This is a message code. The numbers are displayed if a successful measurement could not be performed. The user can correct the measuring situation to achieve a measurement. Below you can find the spread sheet from the manual with the corrections:

Error No. Cause Correction
204 Calculation error Perform measurement again.
240 Data transfer error Repeat procedure
252 Temperature too high Let device cool down.
253 Temperature too low Warm device up.
255 Received signal too weak, measuring time too long Change target surface (e.g. white paper).
256 Received signal too high Change target surface (e.g. white paper).
257 Too much background light Shadow target area.
258 Measurement outside of measuring range Correct range.
260 Laser beam interrupted Repeat measurement.

The beep can be switched off (and on) with a long press simultaneously on Func key and Bluetooth key.
The painter function calculates the sum of several individual wall surfaces with a common height. Press func key 1x to go to the area function.
Press DIST key and measure the first wall length, press plus or -minus key again and measure the next wall length. The distance is automatically calculated. Repeat the procedure, until you have measured all wall lengths.
2nd measurement: Measure the wall height.
The result displays automatically the wall areas, which you have selected.
In any rectangular triangle, the theorem of Pythagoras is valid: a²+b²=c². This means the other way round: c=radical of (a²+b²) or b=radical of (c²-a²). One side of the triangle can be calculated, if the other two sides are known. Therefore it is important that the DISTO™ measuring points are at the same level and that measurement 2 is rectangular. With a long press on the DIST-key the minimum function can be activated to get the shortest distance for measurement 2.
Yes, it is possible to use with standard rechargeable batteries. The more powerful the charger system is, the longer you can measure with the Leica DISTO™. We offer a powerful charger system, which is ideal to use with DISTO™: Leica charger UC20 with 2 Micro AAA NiMH batteries. For more information, please check our accessories.
For measuring of long distances we recommend to use our Leica target plates. If the laser dot is not visible, we recommend you to wear laser glasses (GLB30).
Our standard warranty of 2 years can be extended by one additional year if you register your device on our website http://www.disto.com/ within eight weeks of the purchase date. If the product is not registered, a two year warranty applies.
When products and services meet our expectations, we tend to take this for granted and be unaware of the role of standards. However, when standards are absent, we soon notice. We soon care when products turn out to be of poor quality or are unreliable or dangerous. An ISO Standard ensures consistent quality and reliability for a product.
The range and accuracy of laser distance meters depend greatly on lighting conditions and the reflective properties of the target object. For Leica Geosystems it is important that the performance of the device is maintained not only in the test laboratory but even more so on everyday site tasks. Therefore we have worked with external experts to develop a global standard to test and specify laser distance meters and allow comparisons between devices of different manufacturers. Instruments tested in accordance with ISO 16331-1 achieve their promises. Further information can be found on our website: www.disto.com.
By pressing the Bluetooth® key for 2 seconds.
The Leica DISTO™ D2 has Bluetooth® SMART. The devices is working with smartphones or tablets with Bluetooth® 4.0, or are “Smart Ready”. It is also required that the operating system supports this Bluetooth® standard which is the case for iOS devices, Android devices 4.3 or higher, and Windows 8.0 or higher.
Yes, the Leica DISTO™ D2 can communicate with iOS mobile devices. It’s possible to send measuring data to an iPhone (iPhone 4S, iPhone 5, iPhone 5s, iPhone 5c), iPad3, iPad 4, iPad mini, iPod touch (Gen. 5). (–> Bluetooth® 4.0)
Yes, the Leica DISTO™ D2 can communicate also with Android devices, with operating system 4.3 or higher, and which have integrated Bluetooth 4.0. Used apps should support the corresponding Bluetooth® standard (e.g. Leica DISTO™ sketch).
It is possible to send data to computers running with Windows 8.1 by using the free software DISTO transfer. This free software you can download from our DISTO webpage. Windows 7 and older Windows operating systems do not support Bluetooth 4.0 and therefore do not support data transfer from the Leica DISTO™ D2.
Yes. We offer the Leica DISTO™ sketch app. The app is available free of charge for iOS devices on iTunes, and for Android devices on Google play.

Leica Disto D2 Features Minimum / maximum measurement function

Minimum / Maximum Measurements

The maximum measurement is very helpful, e.g. for finding out the room diagonal. The minimum measurement can be used to measure at right angles to a wall.

Leica Disto D2 Fetures Area and volume measurement functions

Area and Volume Measurements

With only two or three measurements, you can quickly and precisely calculate the area of a ceiling, floor or wall, or the volume of a room. No need to note down the individual values! The result is calculated automatically and shown on the display.

Leica Disto D2 Features Painter function

Painter Function
With this function you can determine e.g. the total wall area of a room without having to note down any intermediate results. Simply measure the lengths of the walls, which you can add or subtract as required. Finally measure the room height, which is then automatically multiplied by the previously calculated value.

Leica Disto D2 Features Stake-out function

Stake Out Function
One or two different distances (a and b) can be entered into the device and then used to subtract from defined measured lengths. The display always shows the current stake-out distance and a direction arrow. At a distance of 0.1 m to the next stake-out point, an acoustic signal sounds.

Pythagoras FunctionsLeica Disto D2 Features Pythagoras functions

Using the tripod, you can measure distances indirectly, horizontally and vertically. The Leica DISTO™ calculates the result automatically for you from three measurements. Functions such as automatic minimum and maximum measurements help you to measure the right point.

Partial heights, e.g. balcony or window heights, are determined by Pythagoras.
