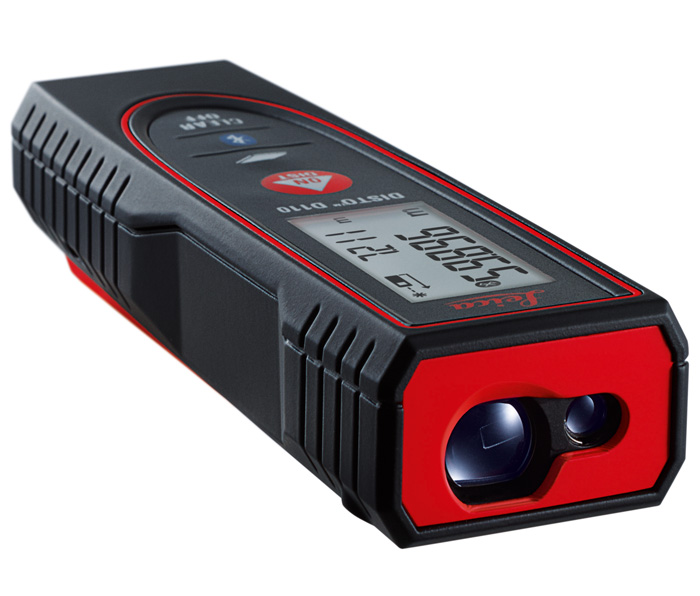

Key Features of Leica Disto D110 Laser Measurer
The Leica DISTO™ D110 is world’s smallest laser distance meter with integrated Bluetooth® Smart technology. By using its precise measurements users can create floor plans and sketch easily by connecting it with the Leica DISTO™ sketch app on a smartphone or a tablet. Whether an interior designer, painter or building contractor, the Leica DISTO™ D110 will make it easier to get the job done right.

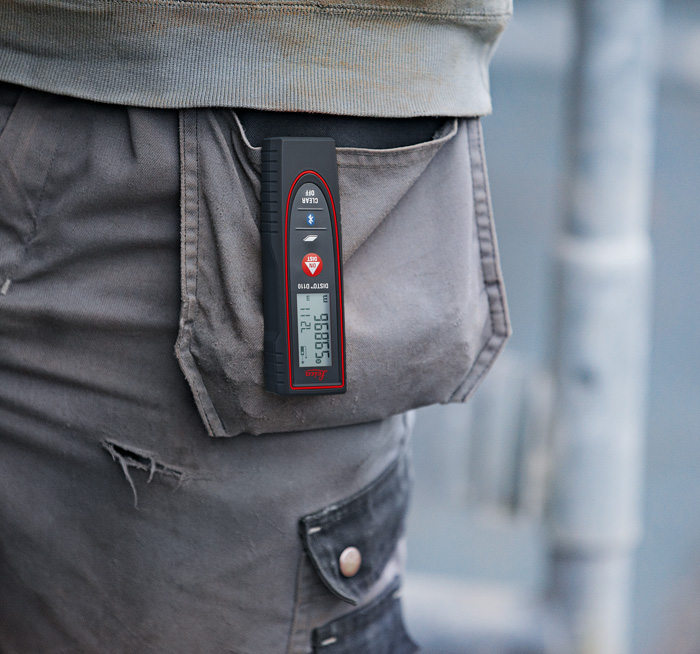

The precise and affordable laser distance meter is hassle-free and strikingly simple to use making it possible for anyone to measure distances or areas. With the device being so intuitive to use it is easy to focus on the actual job: creating room and floor plans, building dry walls, painting, making material estimations, renovating and many more. Compact design and simple functions make the Leica DISTO™ D110 a perfect tool for everyday indoor measuring tasks. With the removable pocket clip accessory it is possible to clip the device to a belt or a pocket for direct access.
Compact shape and intuitive ease of use

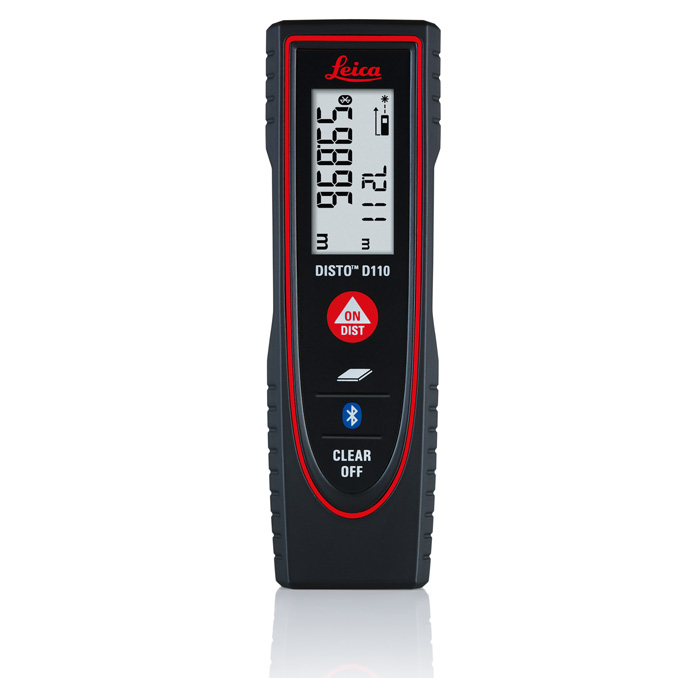

The Leica DISTO D110 is the smallest and the lightest laser distance meter in the DISTO™ product range. Its ergonomic design guarantees that the device fits perfectly in a hand and is comfortable to use. The self-explanatory buttons allow quick and intuitive operation. Measuring has never been easier!
Easy data transfer to Leica DISTO™ sketch app with Bluetooth® Smart technology

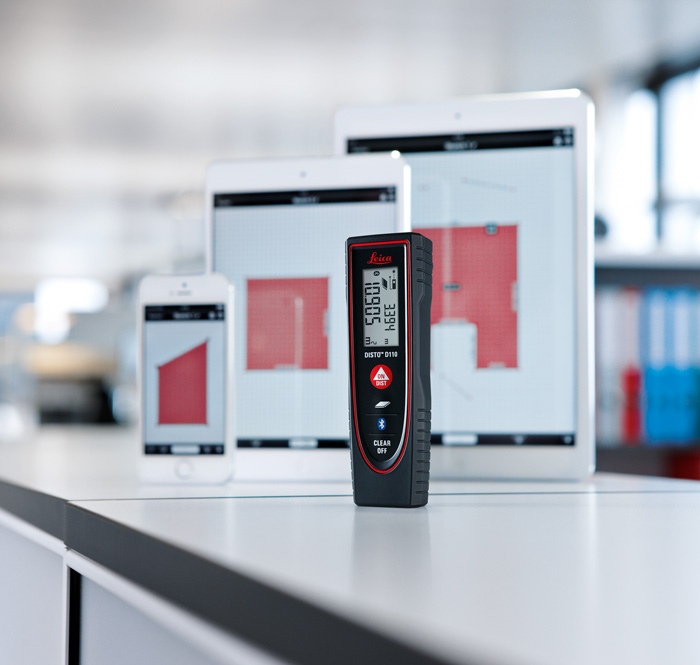

Users can take advantage of additional features by downloading the free Leica DISTO™ sketch app on a smartphone or a tablet. Bluetooth® Smart allows transferring measurements from the laser distance meter directly to the Leica DISTO™ sketch app. Once connected to compatible devices, users can instantly start creating floor plans, sketches and photo-documentation with precise measurements. It is even possible to integrate detailed sketches to existing plans. All documents are saved in the app and can be send by e-mail to make them quickly available.
Proven accuracy and quality from Leica Geosystems
With the Leica DISTO D110 you simply point and click and the measurement is provided – guaranteed to be accurate to ±1.5mm! Leica are the only laser measure manufacturer in the world to test and certify their laser measures to the ISO 16331-1 standard for accuracy of hand held laser measures.
Specifications of Leica Disto D110 Laser Distance Meter
||0.2m / 0.65ft
|Maximum Measuring Range
||60m / 197ft
||±1.5mm (ISO 16331-1 certified)
||m, ft, in
|X-Range Power Technology
|Free software for Windows
||iOS / Android
|Measurements per set of batteries
||up to 10,000 Measurements Reduced in Bluetooth® mode
|Service life of battery
||up to 20 hours Reduced in Bluetooth® mode
||type AAA 2 × 1.5 V
||120 x 37 x 23 mm
|Weight with batteries
||Full Three-Year Replacement Warranty.
|Country of Origin
Video of Leica Disto D110 Laser Distance Meter
Frequently Asked Questions (FAQs) – All About Leica DISTO D110 Laser Measuring Tape

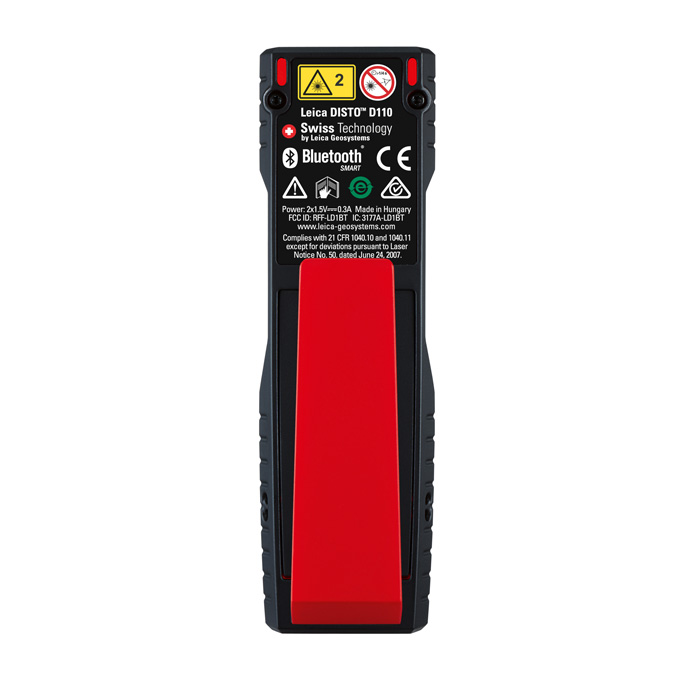

Please proceed as follows to remove the pocket clip. Please press the bottom of the device to unlock and remove the clip.
Please proceed as follows to attach the pocket clip. Please insert the clip through the gap in the bottom of the device.
In order to open the battery compartment on the pocket clip needs to be removed. After removing the clip, the battery compartment can be opened.
The device measures distances between 0.2 up to 60 meters.
You can measure distances, areas and execute continuous measurements. You can transfer all measurements via Bluetooth® Smart.
By pressing the Bluetooth key and the area key together for 2 Sec the beep can be turned on / off.
By pressing the Bluetooth key for 2 seconds.
Our standard warranty of 2 years can be extended by one additional year if you register your device on our website www.disto.com within eight weeks of the purchase date. If the product is not registered, a two year warranty applies.
This is a message code. The numbers are displayed if a successful measurement could not be performed. The user himself can correct the measuring situation to achieve a measurement. Below you can find a table showing corrective actions:
|Error No. ||Cause ||Correction |
|204 ||Calculation error ||Perform measurement again. |
|240 ||Data transfer error ||Repeat procedure |
|252 ||Temperature too high ||Let device cool down. |
|253 ||Temperature too low ||Warm device up. |
|254 ||Battery voltage too low for measurements ||Change batteries |
|255 ||Received signal too weak, measuring time too long ||Change target surface (e.g. white paper). |
|256 ||Received signal too high ||Change target surface (e.g. white paper). |
|257 ||Too much background light ||Shadow target area. |
|258 ||Measurement outside of measuring range ||Correct range. |
|260 ||Laser beam interrupted ||Repeat measurement. |
When products and services meet our expectations, we tend to take this for granted and be unaware of the role of standards. However, when standards are absent, we soon notice. We care when products turn out to be of poor quality or are unreliable or dangerous. An ISO Standard ensures consistent quality and reliability for a product. The range and accuracy of laser distance meters depend greatly on lighting conditions and the reflective properties of the target object. For Leica Geosystems it is important that the performance of the device is maintained not only in the test laboratory but even more so on everyday site tasks. Therefore, we have worked with external experts to develop a global standard to test and specify laser distance meters and allow comparisons between devices of different manufacturers. Instruments tested in accordance with ISO 16331-1 achieve their promises. Further information can be found on our website: www.disto.com.
The Leica DISTO™ D110 has Bluetooth® SMART. The devices is working with smartphones or tablets with Bluetooth® 4.0, or are “Smart Ready”. It is also required that the operating system supports this Bluetooth® standard which is the case for iOS devices, Android devices 4.3 or higher, and Windows 8.0 or higher.
Yes, the Leica DISTO™ D110 can communicate with iOS mobile devices. It’s possible to send measuring data to an iPhone (iPhone 4S, iPhone 5, iPhone 5s, iPhone 5c), iPad3, iPad 4, iPad mini, iPod touch (Gen. 5). (–> Bluetooth® 4.0)
Yes, the Leica DISTO™ D110 can communicate also with Android devices, with operating system 4.3 or higher, and which have integrated Bluetooth 4.0. Used apps should support the corresponding Bluetooth® standard (e.g. Leica DISTO™ sketch).
It is possible to send data to computers running with Windows 8.1 by using the free software DISTO transfer. This free software you can download from our DISTO webpage. Windows 7 and older Windows operating systems do not support Bluetooth 4.0 and therefore do not support data transfer from the Leica DISTO™ D110.
No, this is not possible.
Yes. We offer the Leica DISTO™ sketch app. The app is available free of charge for iOS devices on iTunes, and for Android devices on Google play.
