Leica Disto D510 – 200m Range

 60,000  42,990

  Free Shipping. Delivery within 2-3 business days.
5.00 out of 5 based on 1 customer rating
(1 customer review )

The Leica DISTO D510 stands for easy and effortless outdoor distance measurement. The unique combination of digital Pointfinder and 360° tilt sensor allows measurements which are not possible with conventional distance meters. In addition, with Bluetooth® Smart and attractive free apps, you are prepared for the future.

  • Measuring Range: 0.05m – 200m both indoors and outdoors, even in bright sunshine
  • Measuring Accuracy ± 1 mm (ISO 16331-1 certified)
  • Digital Pointfinder / Viewfinder with 4x zoom
  • IP65 – 100% water jet protection and dust-tight
  • Power Range Technology
  • Measuring Units m, in, ft & 50 Points Memory
  • Automatic multi-functional end piece for measuring from corners
  • Large 2.4″ colour display screen
  • Smart Horizontal Mode™
  • FREE Leica DISTO Sketch app

Brand:
SKU: 792290 Category: Tag:

Product Description

Key Features of Leica DISTO™ D510 offers “Reliable Outdoor Functionality”!

Whether new construction, renovation or preparing a quotation, professionals depend on quick and accurate measurements – they depend on Leica DISTO™. Leica DISTO™ helps professionals save time and money and increase their productivity ensuring that they stay ahead of the competition – “when it has to be right”.

Simple and precise targeting – Pointfinder with 4x zoom
With the Pointfinder, the Leica DISTO™ D510 takes measurements with perfect accuracy and in unfavorable light conditions. This is a decisive advantage when working outside in sunny weather. Even if the red laser point is no longer visible to the naked eye, the target can be seen exactly in the crosshairs on the display.

Limitless number of measuring options – 360° High-Accuracy tilt sensor
The Leica DISTO D510 Disto Meter is equipped with a 360° tilt sensor. This means that it is not only possible to measure angles, but horizontal distances too! Combined with the Pointfinder, amazing indirect measurement options are provided. Hence, measurements are possible where no reflective target point is available e.g. when determining the height of a tree or when measuring the height of a reflecting glass facade. These could not be measured with a conventional laser distance meter.

Quick Sketching on the Job Site – Bluetooth® Smart with App
The Leica DISTO D510 is capable of more than just measuring. Measurement data can be conveniently and accurately transferred using the integrated Bluetooth® Smart Technology. The free app Leica DISTO™ sketch supports the creation of ground plans or tables on iPhone or iPad. Dimensions can even be entered onto photographs with no effort whatsoever.

Leica DISTO™ D510 – “State-of-the-Art” Professional Tool
The intuitive and customizable display of the Leica DISTO™ D510 has been built using standards from the latest Smartphones. The result: you are up and running in minutes! Even beginners can easily use the most powerful functions thanks to the on-board help screens.

Leica DISTO™ D510 – When it has to be Right
Rain or shine, indoor or outdoor, the Leica DISTO D510 is ready to work. With tough IP65 certified construction, 200m range, digital Pointfinder and ±1mm accuracy (ISO 16331-1) the Leica DISTO D510 belongs in every professional’s toolbox. Providing simple solutions to complex measuring tasks is the promise of Leica Geosystems.

Leica Disto D510 Features Minimum / maximum measurement function

Minimum / Maximum Measurements

The maximum measurement is very helpful, e.g. for finding out the room diagonal. The minimum measurement can be used to measure at right angles to a wall.

Leica Disto D510 Fetures Area and volume measurement functions

Area and Volume Measurements

With only two or three measurements, you can quickly and precisely calculate the area of a ceiling, floor or wall, or the volume of a room. No need to note down the individual values! The result is calculated automatically and shown on the display.

Leica Disto D510 Features Painter function

Painter Function
With this function you can determine e.g. the total wall area of a room without having to note down any intermediate results. Simply measure the lengths of the walls, which you can add or subtract as required. Finally measure the room height, which is then automatically multiplied by the previously calculated value.

Leica Disto D510 Features Stake-out function

Stake Out Function
One or two different distances (a and b) can be entered into the device and then used to subtract from defined measured lengths. The display always shows the current stake-out distance and a direction arrow. At a distance of 0.1 m to the next stake-out point, an acoustic signal sounds.

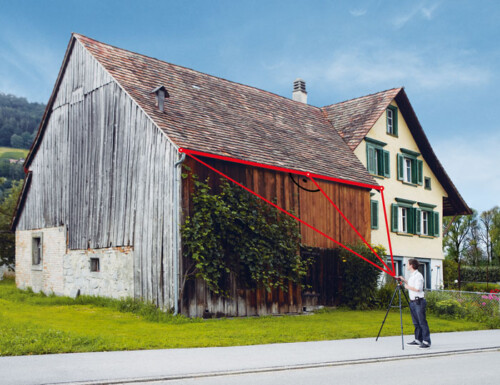

Leica Disto D510 Features Pythagoras functions

Pythagoras Functions
Using the tripod, you can measure distances indirectly, horizontally and vertically. The Leica DISTO™ calculates the result automatically for you from three measurements. Functions such as automatic minimum and maximum measurements help you to measure the right point.

Partial heights, e.g. balcony or window heights, are determined by Pythagoras.

Leica Disto D510 Smart Horizontal Mode

Smart Horizontal Mode
The desired horizontal distance is determined using the tilt measurement, even if the object cannot be directly targeted horizontally. This function is very helpful, e.g. if walls, hedges or people are between the instrument and the target.

Specifications of Leica Disto D510 Laser Distance Meter

Minimum Measurement 0.05m / 0.16ft
Maximum Measuring Range 200m / 660ft
Measuring Accuracy ±1mm (ISO 16331-1 certified)
Measuring Units m, ft, in
Power Range Technology
Tilt sensor measuring range  360°
Accuracy to the laser beam ± 0.2°
Accuracy to the housing  ± 0.2°
Units in the tilt sensor  0.0°, 0.00%
mm / m, in / ft
Pointfinder with 4x zoom
Memory 30 Points Memory
Time delay release (timer)
Display Illumination
Free App iOS / Android
Data interface Bluetooth® SMART
Measurements per set of batteries up to 5,000 Measurements Reduced in Bluetooth® mode
Service life of battery up to 10 hours Reduced in Bluetooth® mode
Multifunctional end-piece
Tripod thread
Batteries type AA 2 × 1.5 V
Protection class IP65
Dimension 143 × 58 × 29 mm
Weight with batteries 198g
Laser Class 2
Warranty Full Three-Year Replacement Warranty.
Country of Origin Hungary

Functions of Leica Laser Distance Meter Disto D510

Distance measuring Yes
Min/Max measuring Yes
Permanent measuring Yes
Stake out Yes
Addition/Subtraction Yes
Area Yes
Triangle area Yes
Volume Yes
Trapezium Yes
Painter function (area with partial measurement) Yes
Pythagoras Yes, 2-point, 3-point
Smart Horizontal Mode / Indirect height Yes
Height-profile measurement Yes
Inclination tracking Yes
Sloped objects Yes
Height tracking Yes
Illuminated colour display Yes
Digital Level Yes
Personalized Favorites Yes
Long Range Mode Yes
Calculator Yes
