Leica Lino L2P5G Crossline & Point Laser Level

 32,000  27,990

  Including GST.   Free Shipping.
Delivery within 2-3 business days.

Leica Lino L2P5G – Multi-functionality with highest visibility

The Leica Lino L2P5G has green line and dot lasers. It increases laser visibility in bright environments and large rooms. Green light has a higher visibility to the human eye compared to red light. The use of Li-Ion battery technology further optimises the instruments usability. It allows it to run over two working days on just one battery charge.

  • Working Range: Up to 35m* > 80 m with detector
  • Green Laser – 2 Lines & 4 Points
  • Exact 90° angle
  • Projection and leveling accuracy of ± 1.5mm @ 5m
  • Accuracy of plumb dots ± 1mm @ 5m
  • Self leveling function – The instrument levels itself in the range of ± 4°
  • IP54 dust and splash water protected

Brand:
SKU: 864435 Category: Tag:

Description

Key Features of Leica Lino L2P5G – A multi-functional green cross line and point laser.

The Leica Lino L2P5G’s green laser beams and points are up to four times more visible to the human eye compared to red ones, which makes it the ideal tool for bright environments and large rooms.

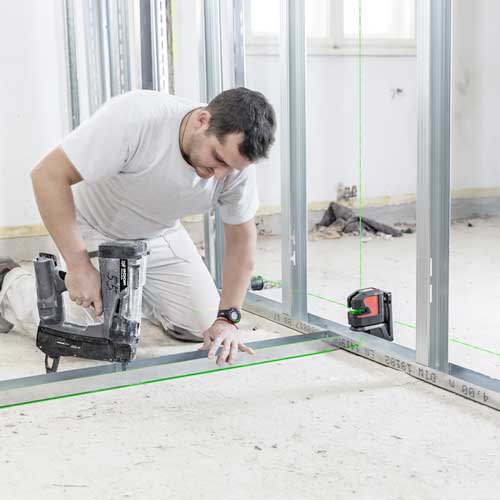

Lino L2P5G Green Laser Work Site

MAXIMUM ACCURACY

The Leica Lino L2P5G uses the latest green laser technology which projects clearer and crisper laser lines at exact right angles to one another. This allows for the highest accuracy of detailed interior tasks.

WORKING RANGE

The large glass optics of this multi-functional tool allow for perfect levelling and alignment over long distances. The working range is up to 35 meters depending on the lighting conditions, and can easily be extended up to 80 meters using the laser receiver Leica RGR 200.

EASY POSITIONING

The Leica Lino L2P5G is quickly and easily attached to a variety of surfaces. Its magnetic adapter fits into U-profiles and with the addition of the UAL 130 adapter the device is easily attached to edges, metal poles, and bars.

SELF-LEVELLING

The cross-line and point lasers of the Leica Lino L2P5G are always level once positioned. The tilt is automatically adjusted when within a ± 4° limit. Outside this limit an alert indicates that the positioning needs to be adjusted.

CONSTRUCTION SITE PROOF

The Leica Lino L2P5G has a rugged design and is dust and spray water protected to IP 54 standards. This makes it a great tool to speed up the workflow and increase productivity on today’s construction sites.

Leica Lino L2P5 Continuous Power

LI-ION TECHNOLOGY

Li-Ion batteries allow this all-round laser tool to run up to 28 hours on just one charge. Alternatively, it can be powered by Alkaline batteries or by its charger.

Leica Lino L2P5G Laser Level Technical Specifications

Laser 2 lines + 4 points (green)
Beam direction/fan angle Vertical / >170°, Horizontal / >180°
Point direction Up, down, right, left (90°/180°)
Range* 35 m (115 ft)
Range* with receiver 80 m (262 ft)
Levelling accuracy ±0.2 mm/m  or  ±1.0 mm @ 5m  or  ±2.0 mm @ 10m
±0.002 in/ft  or  ±0.04 in @ 16ft  or  ±0.08 in @ 33ft
Horizontal/Vertical line accuracy ±0.3 mm/m (±0.004 in/ft)
Point accuracy ±0.2 mm/m (±0.002 in/ft)
Self-levelling range ± 4 °
Self-levelling time < 3 s
Out-of-level warning Yes à blink lines every 5 s
Levelling system Automatic pendulum
Pendulum Lock Yes
Laser type 525 ± 5 nm, Class 2 acc. IEC 60825-1
Protection class IP 54 (IEC 60529) dust and splash water
Drop resistance 6 x 0.5 m (1.64 ft)
Battery type Lino Li-Ion battery pack 5200 mAh / 18.7 Wh (3 alkaline AA)
Operating time with Li-Ion battery 15h (2 beam + 4 point) – 28h (1 beam+ 2 point) continuous
Operating time with alkaline batteries 4h (2 beam + 4 point) – 7h (1 beam+ 2 point) continuous
Low power alert Status LED red
Automatic shut-off Available
Dimensions (L x W x H) 110 x 60 x 100 mm (4.33 x 2.36 x 3.93 in)
Weight with Li-Ion battery 530 g (1.17 lbs)
Operating temperature -10…+50 °C (+14…+122 °F)
Storage temperature -25…+70 °C (-13…+158 °F)
Temperature alert Status LED blinks red (5Hz)
Laser line width at 5m distance < 2 mm (<0.08 in)
Beam divergence < 1.5 mrad
Tripod thread 1/4″ (+ 5/8’’ with adapter)
Pulse power for receiver Yes, auto
Palette Info’s Case Single 1 pcs = 33.5 cm x 38 cm x 17 cm   Weight: 4.4 kg

Leica Lino L2PG Scope of delivery:

  • Leica Lino L2P5G
  • Twist 360 Adapter
  • UAL 130 Wall Mount Adapter
  • Case
  • Li-Ion battery
  • Charger
  • Alkaline battery tray
  • Target Plate

Video of Leica Lino L2P5G Crossline Laser Level
