Leica Lino L4P1 Crossline & Dot Laser Level

You are here: Home » Online Store » Line & Point Lasers » Leica Lino L4P1 Crossline & Dot Laser Level

Leica Lino L4P1 Crossline & Dot Laser Level

 42,000  32,990

  Including GST.   Free Shipping.
Delivery within 2-3 business days.

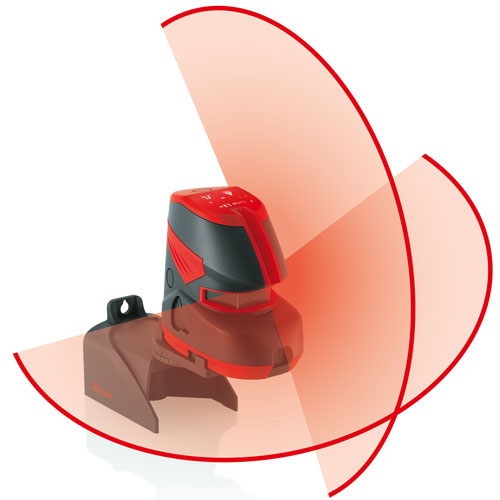

Leica Lino L4P1 – the most powerful multi line laser

Leica Lino L4P1 honoured with Red Dot Design Award 2016Leica Lino L4P1 honoured with Red Dot Design Award 2016
A distinguished panel of 41 experts Honoured The Leica Lino L4P1 with the “Red Dot Award: Product Design 2016” for its outstanding quality, innovativeness and excellent design.

  • Working Range: Up to 15m* > 80 m with detector
  • Emergence angle of 180°
  • Simple 90° layout with bright laser lines
  • Projection and leveling accuracy of ± 1.5mm @ 5m
  • Self leveling function – The instrument levels itself in the range of ± 3°
  • Innovative Li-Ion power: 24 h battery life on a single charge
  • Precision – 360° rotation base with fine adjustment
  • Quick plumbing – easy point transfer from floor to ceiling
  • Extended working range with laser receiver Leica RVL 100 can detect laser lines up to 80m
  • IP54 dust and splash water protected
SKU: 834838 Category: Tag:


Key Features of Leica Lino L4P1 – the most powerful multi line laser

The most powerful multi line laser Leica Lino L4P1 for leveling, alignment and layout tasks. The 360° rotation base with precise fine adjustment supports easy 90° layouts of whole rooms. The smart Li-Ion power concept allows nonstop working up to 24h.

The Leica Lino L4P1 Cross Line Laser is our latest and most powerful multi line laser, which supports efficient and quick workflows for dry wall installers, tilers and many other interior trades. Its innovative and unique power concept and its versatility makes it the first choice. To detect longer distances up to 80 m we recommend to combine it with our Leica Receiver RVL100.

Leica Lino L4P1 Precise 360° RotationPrecision – 360° rotation base with fine adjustment

The Lino L4P1 can be rotated 360° over a selected point. The precise fine adjustment supports quick targeting of the vertical laser lines for high-speed layouts of whole rooms.

Leica Lino L4P1 Innovative PowerInnovative Li-Ion power: 24 h battery life on a single charge

The innovative Li-Ion power allows non-stop working up to 24 h. Additionally the Li-Ion batteries are exchangeable with standard alkaline batteries. The Leica Lino L4P1 is always ready to work, even when the colleague forgets to charge the Li-Ion batteries.

Leica Lino L4P1 One Device Needed for All Interior ApplicationsVersatility: Only one device needed for all interior applications

Three 180° vertical and one horizontal laser line and the 5 layout points allows easy levelling and aligning as well as quick plumbing. Almost any interior application is covered with the Leica Lino L4P1 Laser Level.

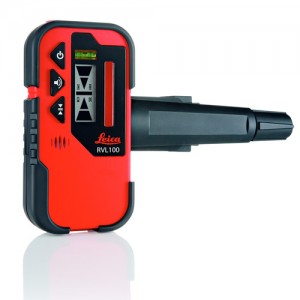

Leica RVL100 Laser ReceiverLaser Receiver RVL 100 (Optional)
In combination with Leica Lino L4P1 line laser level we introduce the Leica RVL100 laser receiver with basic functionality. It locates the laser line up to 80m with an acoustical and optical signal. It is attached with a screw to bracket.

Applications (levelling, aligning and plumbing):
Dry wall layout, adjusting cable trays and pipes, levelling suspended ceilings, levelling and aligning doors and windows, transferring points from floor to ceiling, transferring heights, installing partition walls, adjusting kitchen installations and many more…

Leica Lino L4P1 Technical specifications:

Range up to 15 m / 50 ft
Range with laser receiver RVL 80 & RVL 100 up to 80 m / 260 ft
Levelling accuracy 1mm @ 5m / 0.04″ @ 16ft
Self levelling range ±3°
Number of laser lines 4
Number of laser dots 1
Laser beam direction Vertical, horizontal, up, down
Fine adjustment For vertical lines
Rotating base 360°
Laser type Class II / 635 nm
Protection class IP 54 (dust-and splash water protected)
Battery types Rechargeable Li-Ion batteries & Alkaline batteries 4 xAA, 1.5V
Battery life Li-Ion batteries 24 hours
Tripod thread 1/4″, 5/8″
Operating temperature range -10°C – 50°C
Storage temperature -25°C – 70°C
Dimension (H x D xW) 125 x 125 x 162 mm
Weight (with Li-Ion batteries) 1173g
Size of individual case 340 x 380 x 170 mm
Weight (device with packaging) 3.52 kg
Tripod thread 1/4″ & 5/8″

Video of Leica Lino L4P1 Crossline Laser Level
